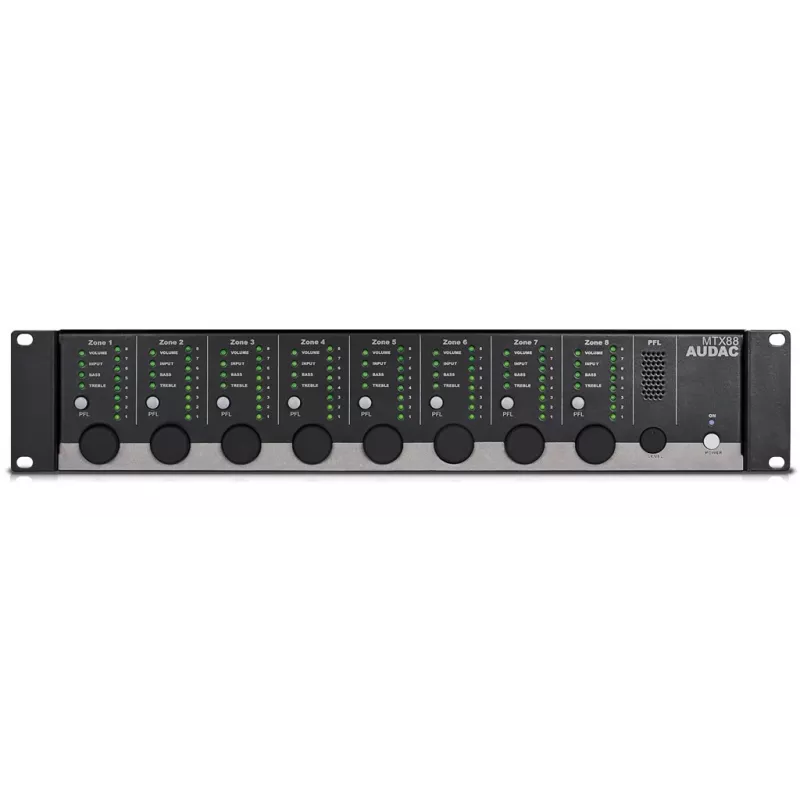

8-zónový AUDAC MTX88 audio matrix

The AUDAC MTX88 is a versatile 8-zone audio matrix designed for professional sound distribution in commercial and residential installations. With 8 stereo line inputs and 2 balanced XLR microphone inputs, it offers flexible routing to 8 balanced Euroblock outputs. The integrated 32-bit floating point DSP provides advanced processing including parametric EQ, noise gate, compressor, limiter, delay, and priority functions. Control is available via RS232, TCP/IP, optional wall panels (MWX45/MWX65), the AUDAC Touch™ app, or web interface. The unit fits a standard 19-inch 1U rack space and includes selectable 48V phantom power for condenser microphones.

Advantages

High-quality audio processing with low distortion and wide dynamic range. Flexible control options allow integration into any system. Compact 1U design saves rack space. Reliable performance for 24/7 operation.

Suitable for

• Commercial audio systems in restaurants, bars, and retail stores
• Corporate meeting rooms and conference facilities
• Educational institutions and lecture halls
• House of worship sound systems
• Multi-zone residential audio installations

Key specifications

• Audio Zones: 8 (Stereo)
• Line Inputs: 8 (Stereo RCA, Unbalanced)
• Microphone Inputs: 2 (XLR, Balanced)
• Output Connectors: 8 (Euroblock, Balanced)
• Frequency Response: 20 Hz - 20 kHz
• Signal-to-Noise Ratio: > 100 dB
• THD+N: < 0.005%
• Dynamic Range: 100 dB
• DSP Processor: 32-bit Floating Point
• DSP Features: Parametric EQ, Noise Gate, Compressor, Limiter, Delay, Priority
• Control Interfaces: RS232, TCP/IP, Wall Panels (MWX45/MWX65), AUDAC Touch™ App, Web Interface
• Phantom Power: 48V (Selectable)
• Rack Unit Size: 1U (19-inch)
• Power Consumption: 25W (Max)
• Sampling Rate: 48 kHz
• Input Impedance (Mic): 6.8 kΩ
• Input Impedance (Line): 20 kΩ
• Output Impedance: 100 Ω

Recommendations

For optimal performance, use balanced connections and high-quality cables. The MTX88 is ideal for systems requiring multiple independent audio zones with centralized control.
