ACO FAM-P-6NPACC Podomietkový bytový panel pre 6 bytov s RFID bezkontaktnou čítačkou, strieborný

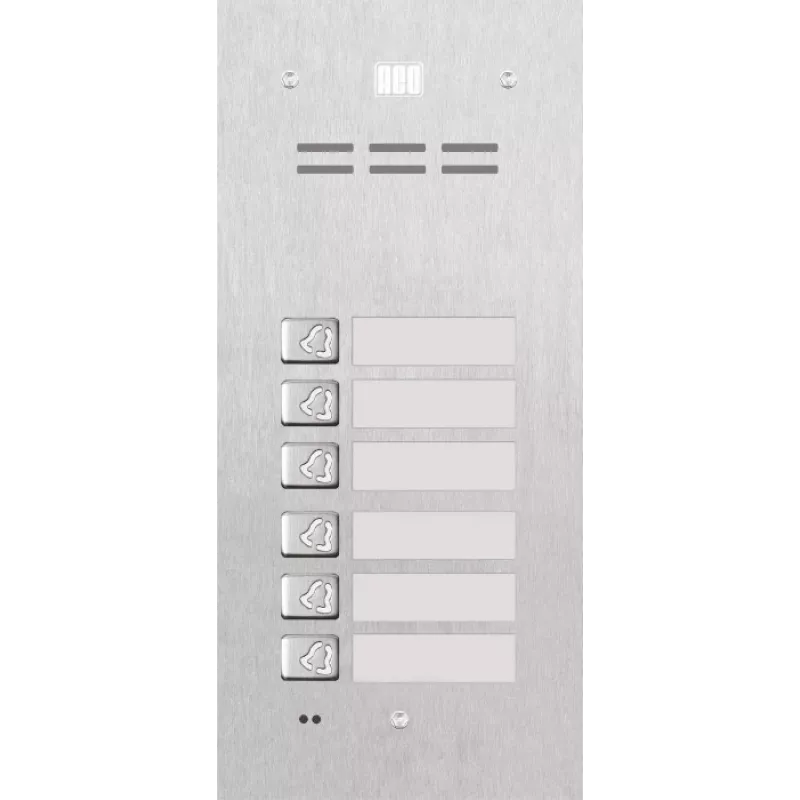

The ACO FAM-P-6NPACC is a flush-mounted door entry panel designed for 6 apartments, featuring an integrated RFID 125kHz proximity reader. Part of the ACO FAMILIO/FAMILIO-P digital system, this panel offers secure and convenient access control for residential buildings.

Advantages

This panel combines a sleek stainless steel front with advanced functionality, including a color wide-angle camera with infrared night vision for clear identification day or night. The integrated RFID reader allows keyless entry using compatible transponders, while the backlit call buttons ensure easy operation even in low light. With an IP54 rating, it is suitable for outdoor use, and the flush-mount design provides a clean, professional installation.

Suitable for

• Multi-apartment residential buildings requiring a 6-unit door entry system
• Installations where keyless access via RFID transponders is desired
• Flush-mounted setups for a modern, unobtrusive appearance

Key specifications

• Number of Apartments: 6
• Mounting Type: Flush-mounted
• Reader Type: Integrated RFID 125kHz Proximity Reader
• System Compatibility: ACO FAMILIO / FAMILIO-P Digital System
• Panel Material: Stainless Steel (front panel)
• Camera Type: Color, Wide-angle
• Camera Horizontal Viewing Angle: 100°
• Camera Vertical Viewing Angle: 77°
• Night Vision: Infrared (IR) Illumination
• Button Backlighting: Yes
• Communication Protocol: ACO Digital (2-wire)
• Power Supply: From System Bus
• Ingress Protection (IP Rating): IP54
• Operating Temperature: -20°C to +50°C
• Number of Call Buttons: 6
• Output for Electric Strike: Yes (controlled by system)
• Installation Depth (Flush Box): 35 mm
• Color: Silver

Recommendations

For optimal performance, ensure compatibility with the ACO FAMILIO/FAMILIO-P system. Professional installation is recommended to achieve proper flush-mounting and system integration.
