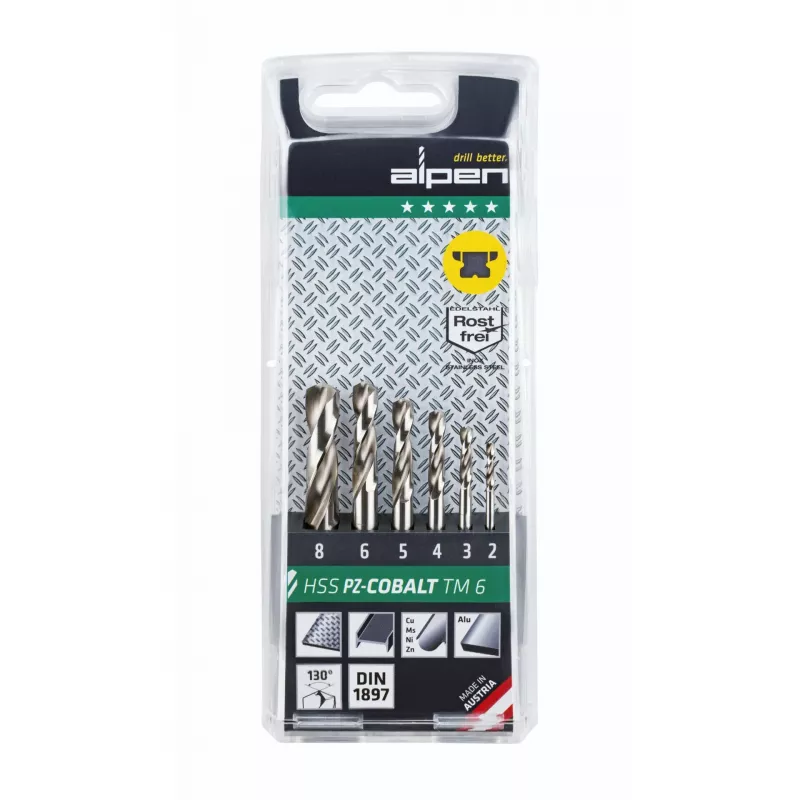

ALPEN-MAYKESTAG HSS-ECo TM-PZ 6 špirálový vrták 6,0 mm

The ALPEN-MAYKESTAG HSS-ECo TM-PZ 6 is a high-performance twist drill bit designed for precision drilling in demanding materials. Manufactured from HSS-E Cobalt (5% cobalt content), this drill bit offers exceptional heat resistance and durability, making it ideal for high-alloy steels, stainless steel, and acid-resistant steels. The 135° split point ensures self-centering and reduces walking, while the cylindrical shank provides a secure fit in standard drill chucks.

Advantages

Extended tool life due to cobalt alloy; precise hole positioning with split point geometry; reliable performance in tough materials; DIN 338 standard ensures consistent quality.

Suitable for

• High-alloy steels
• Stainless steel
• Acid and heat-resistant steels
• Bronze
• Cast iron

Key specifications

• Drill bit type: Twist drill bit
• Material: HSS-E Cobalt (5% Co)
• Diameter: 6.0 mm
• Overall length: 93 mm
• Working length: 57 mm
• Point angle: 135°
• Tip geometry: Split point
• Shank type: Cylindrical (h8 tolerance)
• Cutting direction: Right-hand
• Surface finish: Bright (uncoated)
• Flute type: Spiral
• Standard: DIN 338

Recommendations

For best results, use with appropriate cutting fluid when drilling stainless steel or high-alloy materials. Ensure the workpiece is securely clamped to prevent movement. This drill bit is suitable for use in both hand-held and machine drilling applications.
