AOpen Digital Engine DEN5134 Mini PC - Intel Core i5-1235U - 8GB RAM - 256GB SSD - Intel Iris Xe Graphics - 2.5GbE, 1GbE - Bez operačného systému

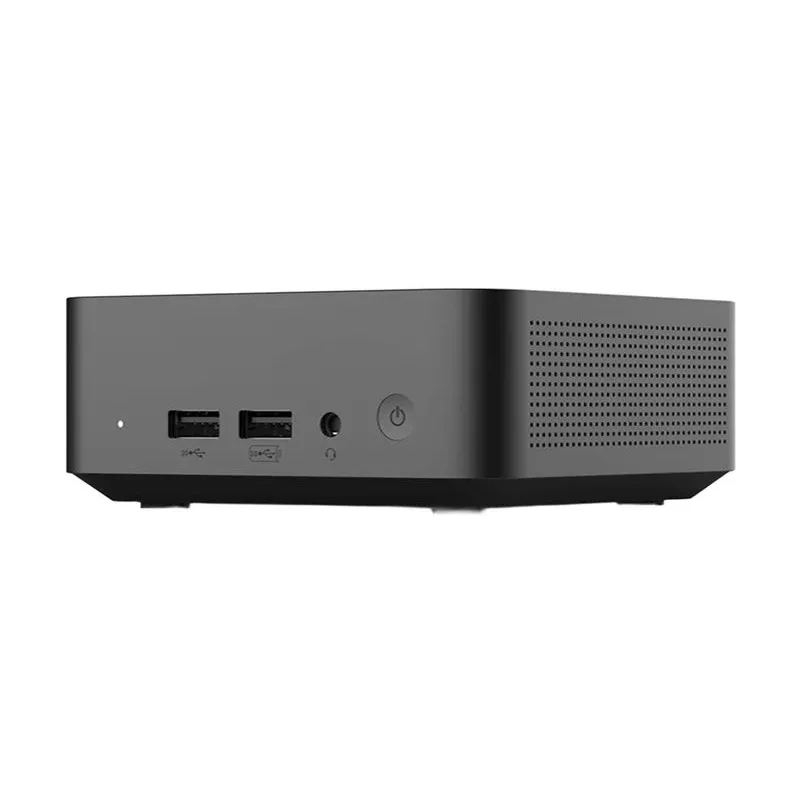

The AOpen Digital Engine DEN5134 is a compact and powerful mini PC designed for digital signage, kiosk, and thin client applications. Powered by an Intel Core i5-1235U processor with 10 cores and 12 threads, it delivers robust performance for multitasking and media playback. With 8GB of DDR4 RAM and a 256GB NVMe SSD, it offers fast data access and ample storage for essential applications. The integrated Intel Iris Xe Graphics provides smooth 4K video output via dual HDMI 2.0b and a DisplayPort 1.4a. Dual Ethernet ports (2.5GbE and 1GbE) ensure flexible and high-speed network connectivity. The fanless design guarantees silent operation and enhanced reliability in dusty environments. VESA mount compatible, it can be discreetly mounted behind a monitor or under a desk. Security features include a Kensington lock slot and TPM 2.0. This model comes without an operating system, allowing you to install your preferred OS.

Advantages

Compact and fanless design for silent, maintenance-free operation. Powerful 10-core processor handles demanding tasks. Dual Ethernet with 2.5GbE for high-speed networking. Versatile video outputs support up to three 4K displays. VESA mountable for space-saving installations.

Suitable for

• Digital signage and media players
• Kiosk and point-of-information systems
• Thin client and desktop virtualization
• Industrial automation and control
• Home server and network appliance

Key specifications

• Processor: Intel Core i5-1235U (10 cores, 12 threads, up to 4.4 GHz)
• RAM: 8 GB DDR4 SO-DIMM
• Storage: 256 GB M.2 NVMe SSD
• Graphics: Intel Iris Xe Graphics
• Ethernet: 1x 2.5 Gigabit Ethernet, 1x Gigabit Ethernet
• Video Output: 2x HDMI 2.0b, 1x DisplayPort 1.4a
• USB Ports: 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C
• Audio: 1x 3.5mm Audio Jack (Line-out/Headphone)
• Power Supply: External AC Adapter
• Mounting: VESA Mount Compatible
• Chassis: Fanless Design
• Security: Kensington Lock Slot, TPM 2.0
• Expansion: 1x M.2 2230 for Wi-Fi/Bluetooth
• Operating System: No OS

Recommendations

For optimal performance, pair with a compatible DDR4 SO-DIMM upgrade and an M.2 NVMe SSD. Use the VESA mount kit for clean installation behind a display. Install a lightweight operating system such as Windows 11 or Linux for digital signage applications.
