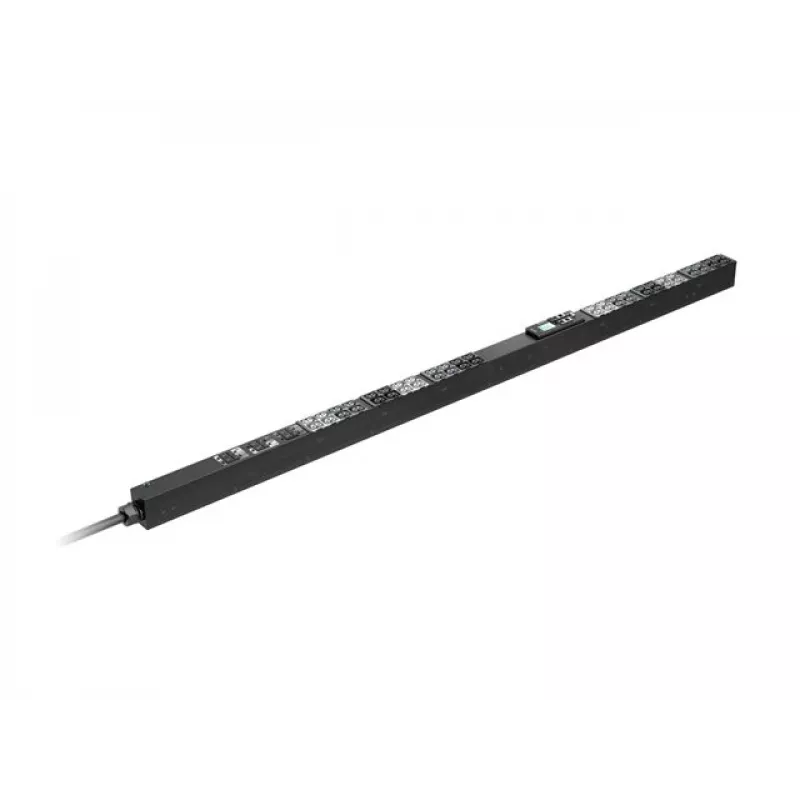

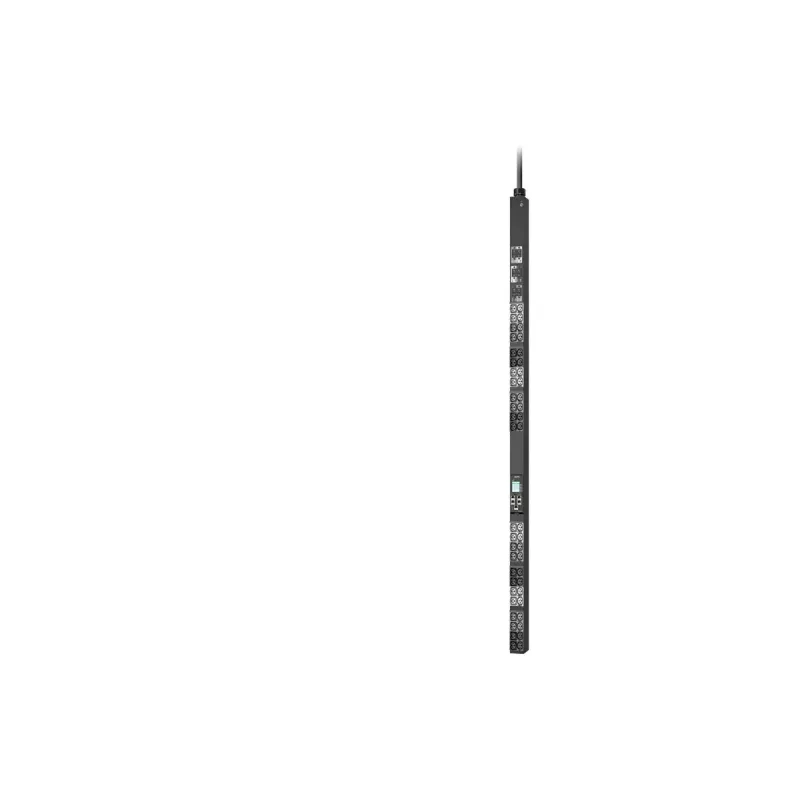

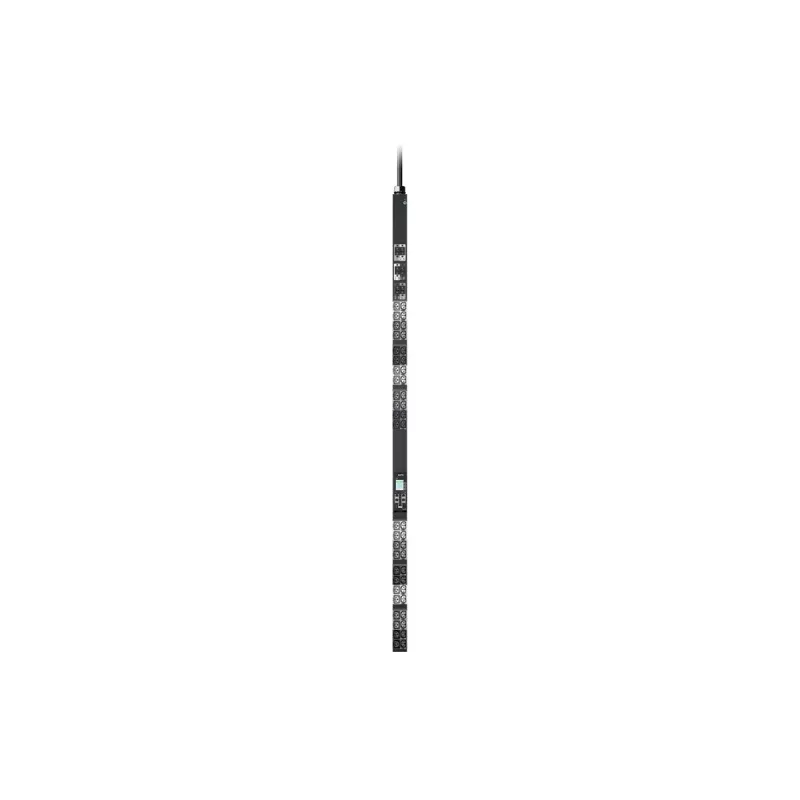

APC NetShelter Rack PDU Advanced Metered Outlet 17,3kW 3PH 415V 30A 530P6 48 Outlet

The APC NetShelter Rack PDU Advanced Metered Outlet is a high-density power distribution unit designed for data centers and server rooms. It provides real-time monitoring of power consumption at the outlet level, enabling precise energy management and capacity planning. With a 17.3kW capacity and 415V 3-phase input, this PDU delivers reliable power to critical equipment.

Advantages

Outlet-level metering allows you to track power usage per device, identify inefficiencies, and optimize load balancing. The toolless rack-mount design simplifies installation in 0U vertical spaces. The LCD display provides local access to power data, while the Ethernet interface enables remote monitoring via web browser or SNMP.

Suitable for

• Data centers requiring outlet-level power monitoring
• Server rooms with high-density 3-phase equipment
• IT professionals managing energy efficiency and capacity

Key specifications

• PDU Type: Metered-by-Outlet Rack PDU
• Input Voltage: 415V 3-Phase
• Input Current: 30A
• Input Plug Type: IEC 60309 3P+N+E 30A (530P6)
• Output Voltage: 230V
• Total Output Power Capacity: 17.3 kW
• Total Number of Outlets: 54 (48x IEC C13, 6x IEC C19)
• Form Factor: 0U Vertical Rackmount
• Metering Capabilities: Outlet-level Current, Voltage, Power, Energy
• Management Interface: Ethernet (RJ-45)
• Protocols Supported: HTTP, HTTPS, SNMPv1/v2c/v3, Telnet, SSH, FTP, SCP
• Display Type: Multi-function LCD
• Power Cord Length: 3.05 m
• Phase Configuration: 3-Phase
• Mounting Type: Toolless Rack-Mount
• Color: Black
• Certifications: CE, EN 55022 Class A, EN 55024, FCC Part 15 Class A, GOST, IEC 60950, VDE

Recommendations

For optimal performance, ensure your rack environment supports 415V 3-phase power and that the total load does not exceed 17.3 kW. Use the included power cord to connect to a compatible 30A 3-phase receptacle.
