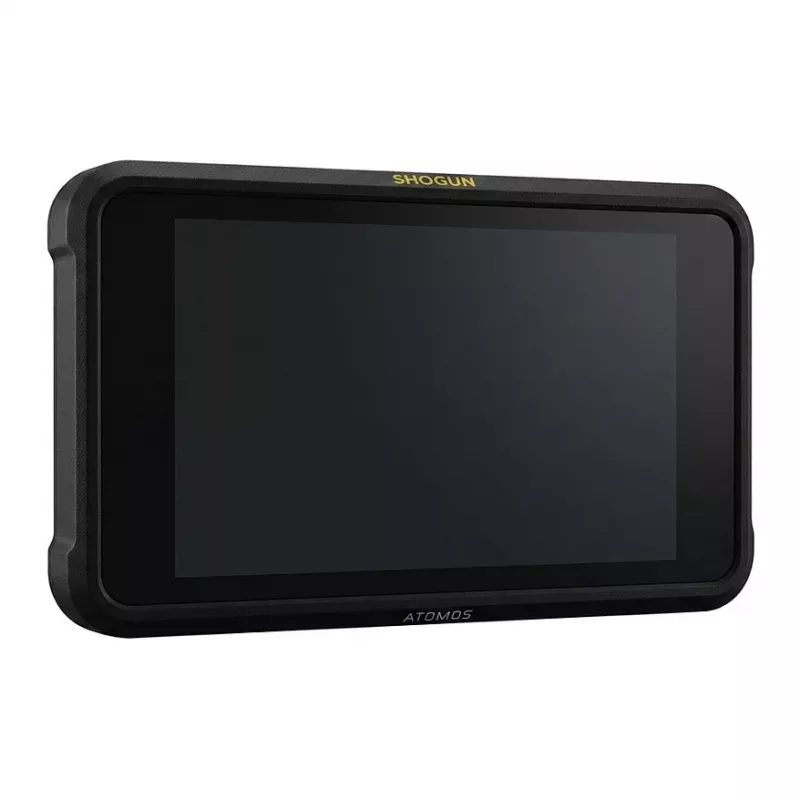

Atomos Shogun Classic Pro Edition 7,1" 4K HDMI/SDI monitor-rekordér

The Atomos Shogun Classic Pro Edition is a professional 7.1-inch on-camera monitor and recorder designed for high-end video production. It features a bright 1500 cd/m² IPS LCD display with 1920x1200 resolution, supporting AtomHDR for over 10 stops of dynamic range. With dual 12G-SDI and HDMI 2.0 inputs and outputs, it can record 4K DCI/UHD up to 60p and HD up to 240p in Apple ProRes or Avid DNxHR codecs directly to a 2.5-inch SSD via the Master Caddy II. The rugged aluminum alloy chassis includes dual NP-F battery slots, XLR audio inputs, and comprehensive monitoring tools like waveform, vectorscope, focus peaking, false color, and zebra. It also supports 3D LUTs and genlock for multi-camera setups.

Advantages

High brightness (1500 nits) ensures visibility in bright outdoor conditions. 10-bit processing and ProRes/DNxHR recording deliver broadcast-quality footage. Dual SDI and HDMI connectivity allow flexible integration with any camera or switcher. The intuitive AtomOS interface and extensive monitoring tools simplify on-set workflows.

Suitable for

• Professional videographers and cinematographers
• Documentary and event production
• Studio and field recording
• Multi-camera live productions

Key specifications

• Display: 7.1" IPS LCD, 1920x1200, 1500 cd/m²
• Video Inputs: 1x HDMI 2.0, 2x 12G-SDI
• Video Outputs: 1x HDMI 2.0, 2x 12G-SDI
• Max Recording: 4K DCI 60p, 4K UHD 60p, HD 240p
• Codecs: Apple ProRes (HQ, 422, LT), Avid DNxHR (HQX, HQ, SQ, LB)
• Media: 2.5" SSD/HDD (Master Caddy II)
• Audio: 2x XLR (via breakout), HDMI, SDI, 3.5mm headphone
• Power: DC 6.2-16.8V, dual NP-F battery slots
• Construction: Aluminum alloy
• Monitoring: Waveform, vectorscope, focus peaking, false color, zebra
• LUT Support: 3D LUTs (.cube)
• Genlock: Yes

Recommendations

For best performance, use with a high-speed 2.5-inch SSD (e.g., Samsung 860 EVO) and a compatible NP-F battery. Pair with a cage or mounting arm for rig setups.
