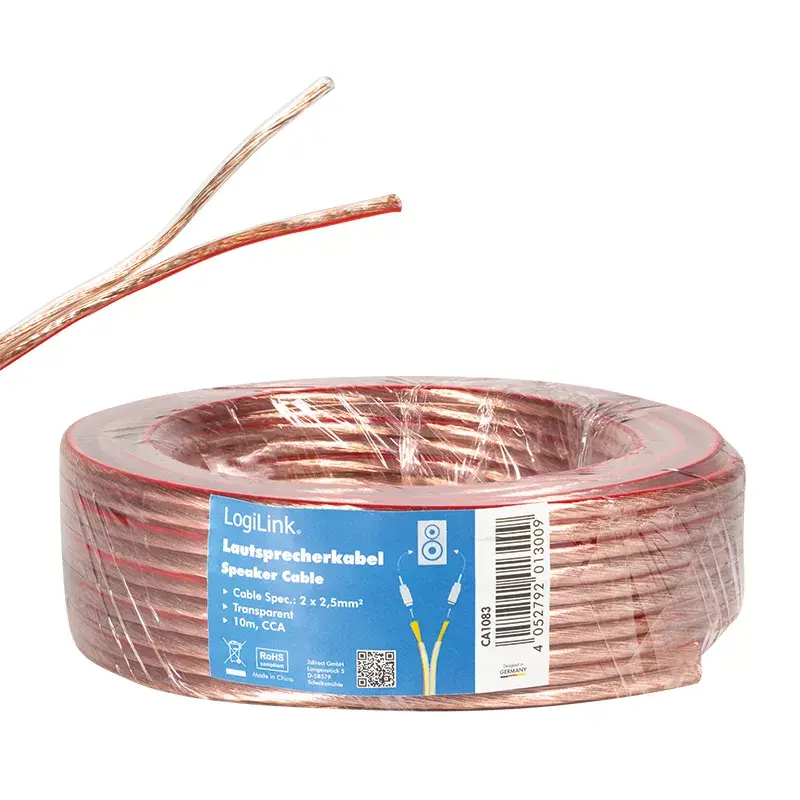

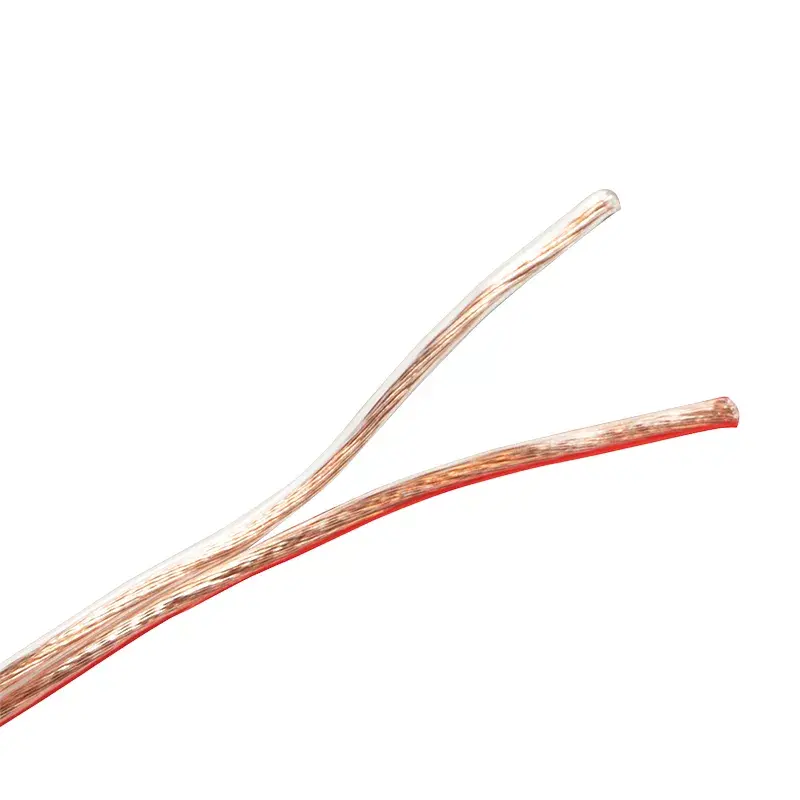

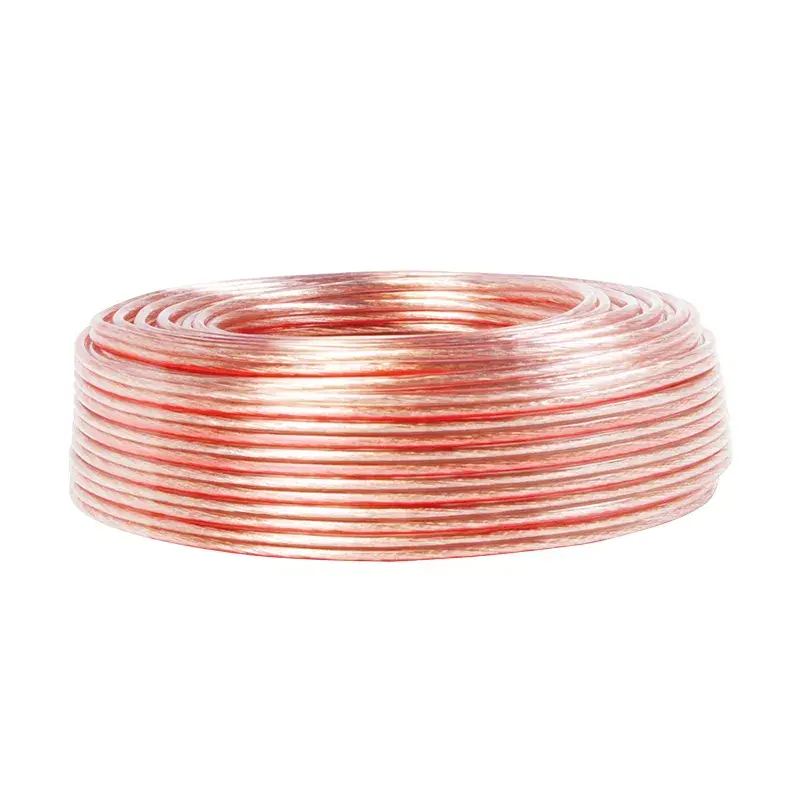

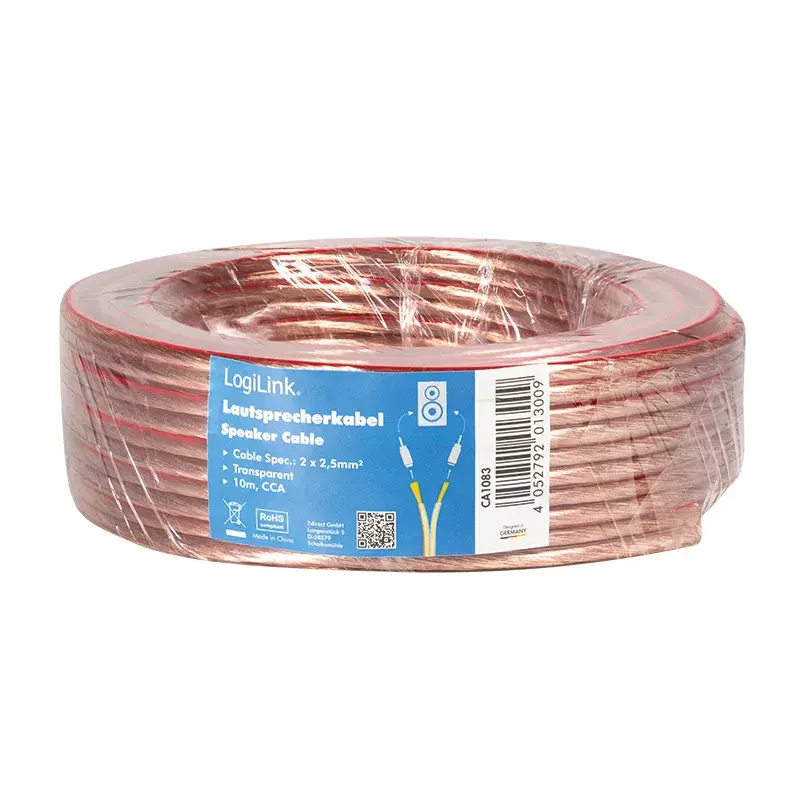

Audio kábel LogiLink CA1083 10 m transparentná

Audio kábel LogiLink CA1083 10 m transparentná
Audio kábel LogiLink CA1083 10 m transparentná
Audio kábel LogiLink CA1083 10 m transparentná
Audio kábel LogiLink CA1083 10 m transparentná
Audio kábel LogiLink CA1083 10 m transparentná
Audio kábel LogiLink CA1083 10 m transparentná
Audio kábel LogiLink CA1083 10 m transparentná
Audio kábel LogiLink CA1083 10 m transparentná
16,86 €
PDF
PDF
Sklad Nie je skladomNie je skladom Kód 977917 Model CA1083 Záruka 2 roky

Doprava a vrátenie tovaru

Položte otázku – AI asistent odpovie hneď.

Popis

The LogiLink CA1083 is a 10 m transparent audio cable constructed with copper-clad aluminium (CCA) conductors and a clear outer sheath. Both conductors have a cross-sectional diameter of 2.5 mm², providing a reliable physical connection for analog audio signal transmission. The cable has no fitted connectors and is suitable for custom terminations or in-line use where bare-wire connections are required.

Advantages

The CCA conductors offer a balance of conductivity and cost-effectiveness compared with pure copper, while the transparent sheath allows visual inspection of the cable core and insulation. With a 10 m length and 2.5 mm² conductors, the cable supports common home and light professional audio runs with reduced signal loss for short-to-moderate distances. The absence of pre-attached connectors makes it versatile for bespoke installations and repairs.

Suitable for

  • Connecting passive loudspeakers with screw terminals or spring clips
  • Custom audio installations where bespoke connectors or solder joints are required
  • Replacing or extending existing speaker wiring in home audio systems
  • Temporary or permanent runs behind furniture, in racks, or along skirting boards

Key specifications

  • Brand: LOGILINK
  • Model / MPN: CA1083
  • EAN: 4052792013009
  • Cable length: 10 m
  • Conductor material: Copper-clad aluminium (CCA)
  • Conductor diameter: 2.5 mm² (both conductors)
  • Connectors: None (bare wire)
  • Colour: Transparent

How to use

Cut the cable to the required length and strip the outer sheath and conductor insulation to expose the bare wires. Terminate the conductors according to your application — for example, solder to connector pins, attach to banana plugs, or secure under speaker terminals or binding posts. Ensure correct polarity is maintained (typically marked or identifiable by a ridge or marking on one conductor) to preserve speaker phase. When routing the cable, avoid tight bends and secure it to prevent movement that could damage the conductors or insulation.

Recommendations

For best performance, keep runs as short as practical for your setup and avoid routing the cable parallel to mains power lines to reduce potential interference. If maximum conductivity is required for long runs, consider using pure copper speaker cable; use the LogiLink CA1083 for medium-length and in-wall concealed installations where CCA is acceptable and cost-effective.

Hlavné vlastnosti
  • Connecting passive loudspeakers with screw terminals or spring clips
  • Custom audio installations where bespoke connectors or solder joints are required
  • Replacing or extending existing speaker wiring in home audio systems
  • Temporary or permanent runs behind furniture, in racks, or along skirting boards
  • Brand: LOGILINK
  • Model / MPN: CA1083
  • EAN: 4052792013009
  • Cable length: 10 m
  • Conductor material: Copper-clad aluminium (CCA)
  • Conductor diameter: 2.5 mm² (both conductors)
  • Connectors: None (bare wire)
  • Colour: Transparent

Parametre

Parametre
Certifikáty udržateľnosti
RoHS
Dĺžka kábla
10 m
Farba produktu
Priehľadná
Kód harmonizovaného systému (HS)
85189000
Konektor 1
No
Konektor 2
No
