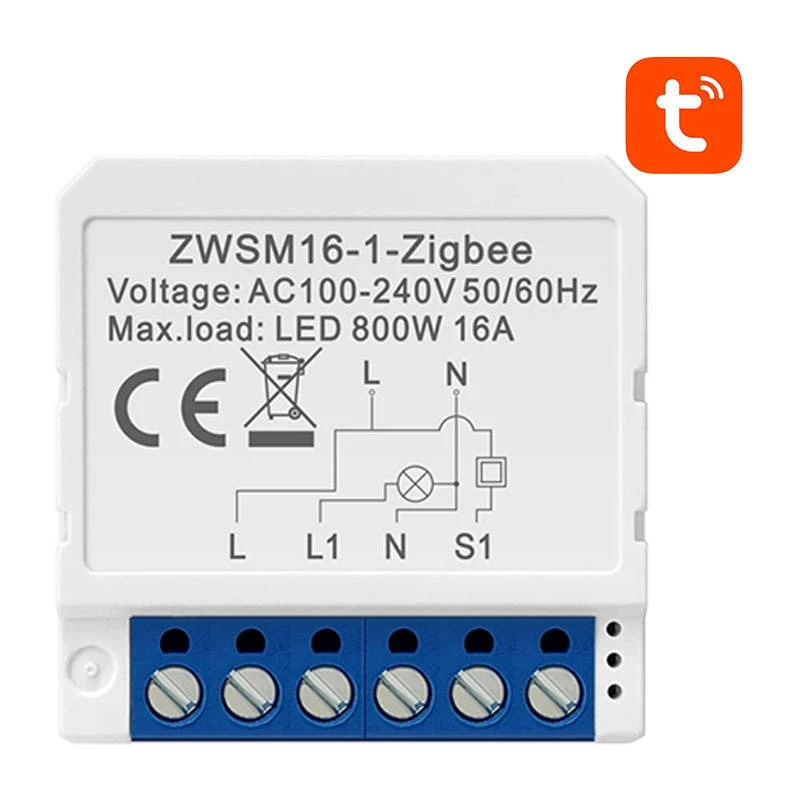

AVATTO ZWSM16-W1 smart switch modul ZigBee 3.0 1-kanál 10A 2200W Tuya

The AVATTO ZWSM16-W1 Smart Switch Module is a compact ZigBee 3.0 device that enables remote on/off control of lighting and appliances via the Tuya Smart or Smart Life app. Designed for behind-wall installation, it works with existing mechanical switches and supports voice control through Amazon Alexa and Google Home.

Advantages

This module offers seamless integration into smart home ecosystems without replacing existing switches. Its ZigBee 3.0 protocol ensures reliable, low-power communication. With a 10A/2200W rating, it handles most household loads. The PC V0 fireproof shell enhances safety.

Suitable for

• Retrofitting traditional wall switches for smart control
• Automating lights, fans, and small appliances
• Creating schedules and scenes for energy savings

Key specifications

• Wireless Protocol: ZigBee 3.0
• Input Voltage: AC 100-240V, 50/60Hz
• Max Load Current: 10A
• Max Load Power: 2200W (Resistive)
• Number of Channels: 1-Gang (1 Channel)
• Neutral Wire Required: Yes
• Control Type: On/Off
• Operating Temperature: -10°C to 40°C
• Operating Humidity: 6% to 90% RH
• Shell Material: PC V0 Fireproof
• Certification: CE, RoHS
• Gateway Required: Yes (ZigBee Hub)

Recommendations

For optimal performance, pair with a compatible ZigBee gateway (e.g., AVATTO or Tuya hub). Professional installation recommended if you are not familiar with electrical wiring.
