AZZA PSAZ-650B 650W ATX napájací zdroj 80 PLUS Bronze 120mm ventilátor čierny

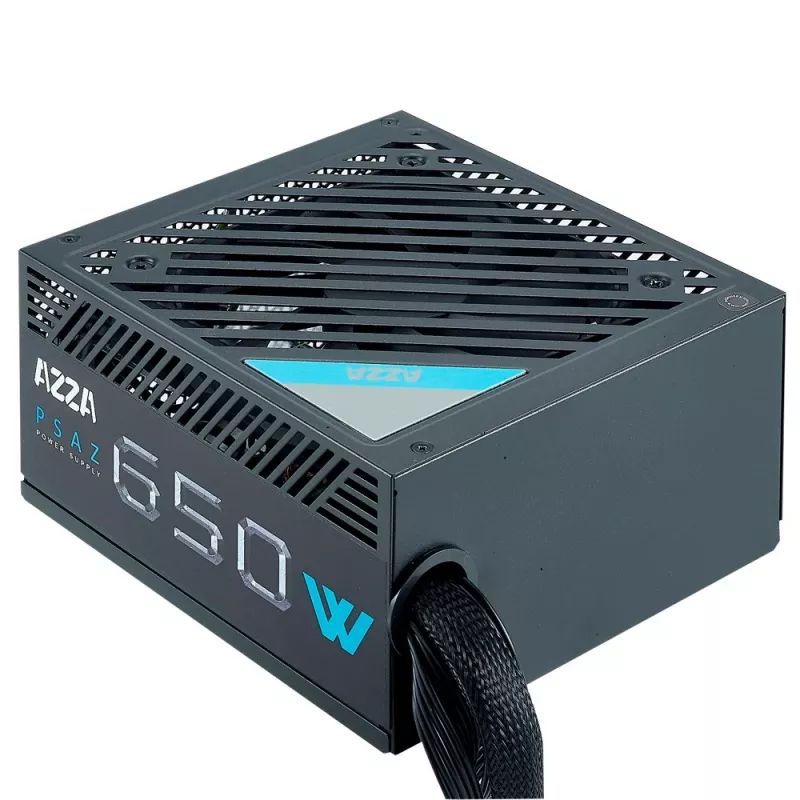

The AZZA PSAZ-650B is a reliable and efficient ATX power supply designed for desktop PCs and servers. With a 650W output and 80 PLUS Bronze certification, it delivers stable power with up to 85% efficiency. The 120mm hydraulic bearing fan ensures quiet and effective cooling. This non-modular PSU includes essential protections and multiple connectors for versatile system builds.

Advantages

High efficiency reduces energy waste and heat generation. The 120mm fan with hydraulic bearing provides long-lasting, quiet operation. Active PFC ensures stable input voltage handling. Comprehensive protections (OVP, OPP, SCP, UVP, OTP) safeguard your components.

Suitable for

• Desktop PC builds requiring reliable 650W power
• Entry to mid-range gaming systems
• Office and home server configurations
• Upgrades for systems with non-modular PSU needs

Key specifications

• Total Power: 650W
• 80 PLUS Certification: Bronze
• Form Factor: ATX
• Modularity: Non-Modular
• Fan Diameter: 120mm
• Fan Bearing: Hydraulic Bearing (HDB)
• PFC Type: Active PFC
• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• Efficiency: Up to 85% (at 50% load, 115V)
• MTBF: 100,000 hours
• Protections: OVP, OPP, SCP, UVP, OTP
• ATX 24-pin Connector: 1
• EPS/ATX 12V 4+4-pin Connector: 1
• PCIe 6+2-pin Connectors: 4
• SATA Power Connectors: 6
• Peripheral (Molex) 4-pin Connectors: 3
• FDD 4-pin Connector: 1
• Colour: Black
• Operating Temperature: 0 - 40 °C

Recommendations

For optimal performance, ensure your system's total power draw does not exceed 80% of the PSU's capacity. This unit is ideal for builds with moderate power requirements and a preference for non-modular cabling.
