BACHMANN BN PRO M RCM 24xC13 6xC19 6xLS 3,0m CEE 32A/5p rozvodná jednotka

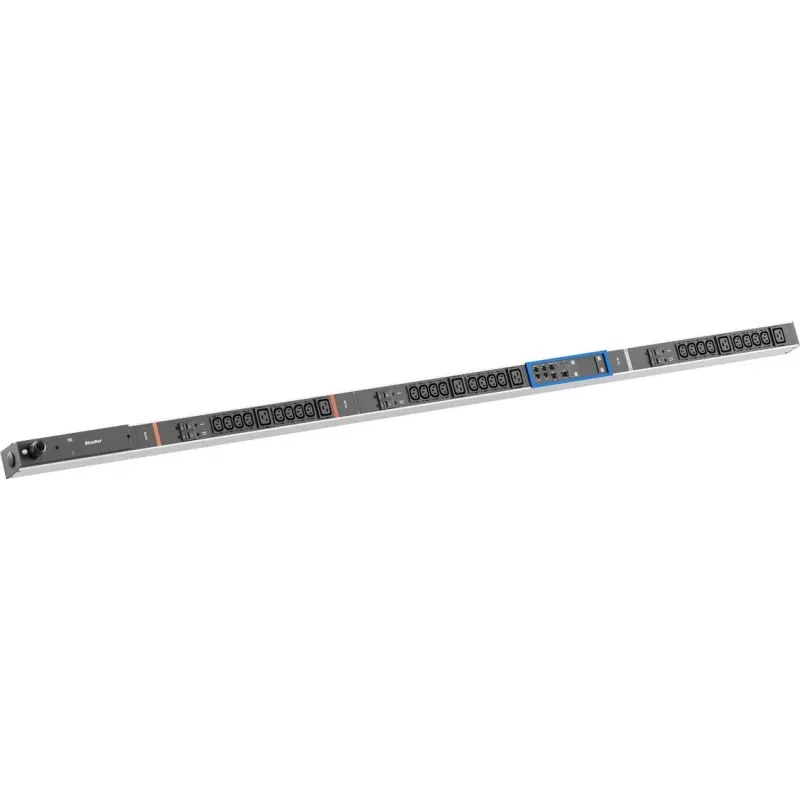

The BACHMANN BN PRO M RCM is a professional 0U vertical rack-mount Power Distribution Unit (PDU) designed for data centers and IT environments requiring reliable power distribution with advanced monitoring. Featuring 24 IEC C13 and 6 IEC C19 outlets, this PDU delivers up to 32A (3-phase) via a CEE 32A/5p input plug. The integrated Residual Current Monitoring (RCM) and six load segments provide granular control and safety. With a 3.0-meter input cable and tool-less button mounting, installation is quick and flexible.

Advantages

This PDU offers comprehensive power distribution with real-time monitoring of current, voltage, power, and energy via Ethernet. The six individually switchable load segments allow for remote outlet control and load shedding. The RCM feature enhances safety by detecting residual currents. The anodized aluminum housing ensures durability and heat dissipation.

Suitable for

• Data centers and server rooms requiring 3-phase power distribution
• IT equipment with C13 and C19 power connectors
• Environments needing remote power monitoring and control
• Applications where residual current monitoring is critical

Key specifications

• Input: CEE 32A/5p (IEC 60309 32A 3P+N+PE), 400V AC, 32A max
• Output: 24x IEC C13 + 6x IEC C19 (total 30 outlets)
• Input cable length: 3.0 m
• Form factor: 0U vertical rack mount, tool-less button mounting
• Monitoring: Ethernet, RCM, per load segment metering (current, voltage, power, energy)
• Load segments: 6, individually switchable with overcurrent protection
• Housing: Anodized aluminum, color black/silver
• Operating temperature: 0°C to 45°C

Recommendations

For optimal performance, ensure the PDU is connected to a compatible 32A 3-phase power source. Use the Ethernet interface for remote monitoring and configuration. Regularly check load segments to avoid overloading.
