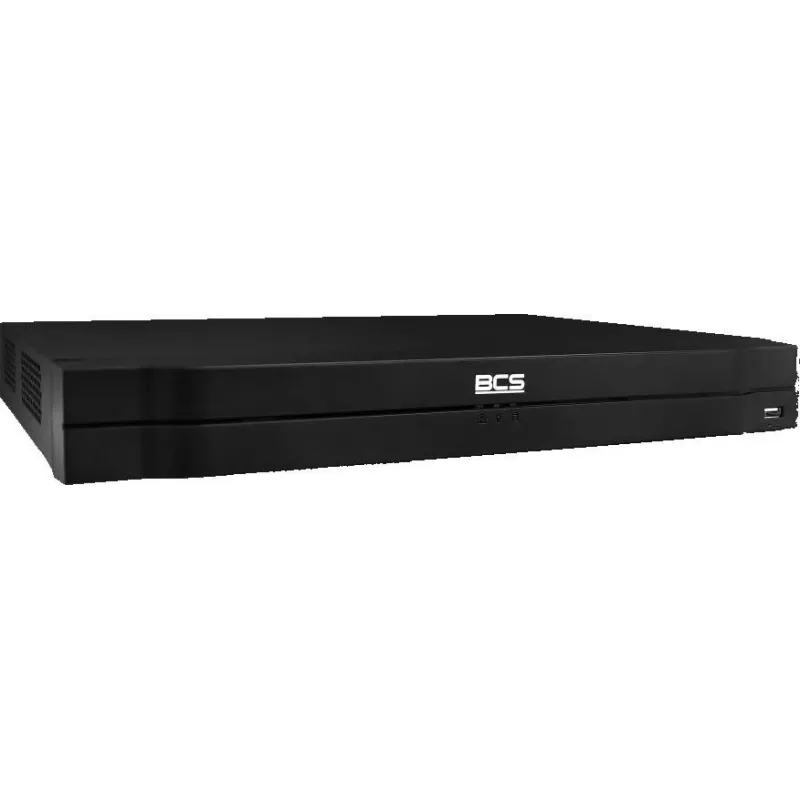

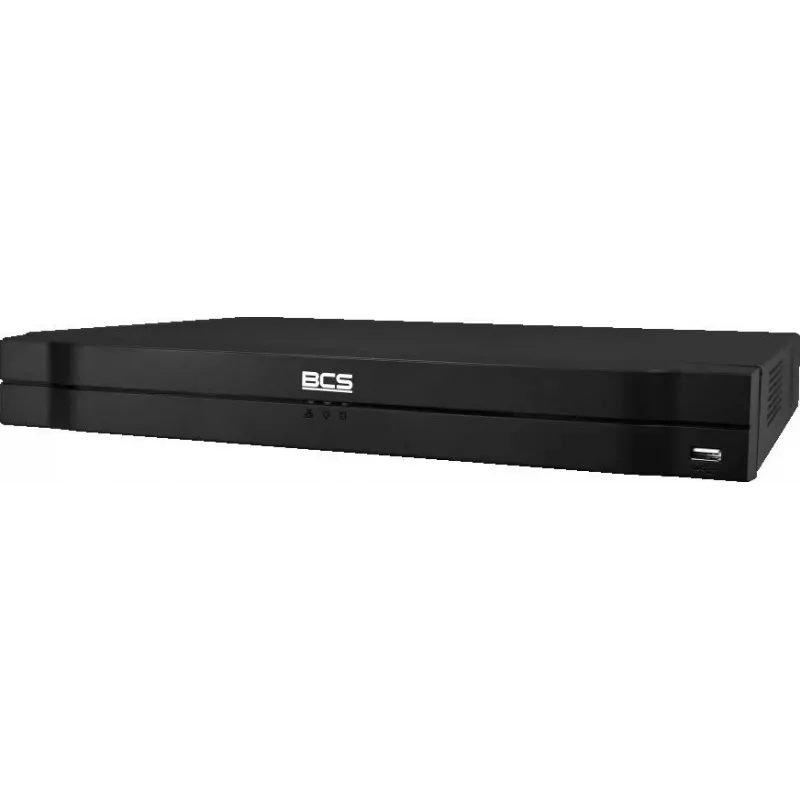

BCS 16-kanálový Analog HD DVR rekordér BCS-L-XVR1602-4KE(5) 4K H.265+

The BCS-L-XVR1602-4KE(5) is a professional 16-channel analog HD DVR recorder that supports up to 32 channels total (16 analog + 16 IP). It features 4K recording resolution, H.265+ compression, and advanced AI capabilities such as SMD Plus and perimeter protection. Ideal for medium to large surveillance systems, this recorder offers reliable storage with dual SATA ports supporting up to 20TB total.

Advantages

High-resolution 4K recording ensures crystal-clear video evidence. H.265+ compression reduces bandwidth and storage requirements without compromising quality. AI-powered smart motion detection minimizes false alarms. Dual SATA bays provide ample storage for extended recording. Easy remote access via DMSS mobile app.

Suitable for

• Retail stores
• Office buildings
• Warehouses
• Educational institutions
• Residential complexes

Key specifications

• 16 analog video inputs (BNC) + 16 IP channels (total up to 32)
• Max analog recording resolution: 8MP (4K) at 7fps
• Video compression: H.265+/H.265/H.264+/H.264
• Video outputs: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio: 1x RCA input, 1x RCA output, two-way audio support
• Alarm: 8 inputs / 3 outputs
• Storage: 2x SATA ports, up to 10TB each (20TB total)
• Network: 1x Gigabit Ethernet RJ-45
• USB: 1x USB 2.0, 1x USB 3.0
• AI features: SMD Plus, perimeter protection, AI coding
• Power: DC12V/5A, consumption <15W (without HDD)
• Operating system: Embedded Linux

Recommendations

For optimal performance, pair with BCS 4K analog HD cameras and use high-quality SATA hard drives rated for surveillance. Ensure proper ventilation around the unit to maintain low power consumption.
