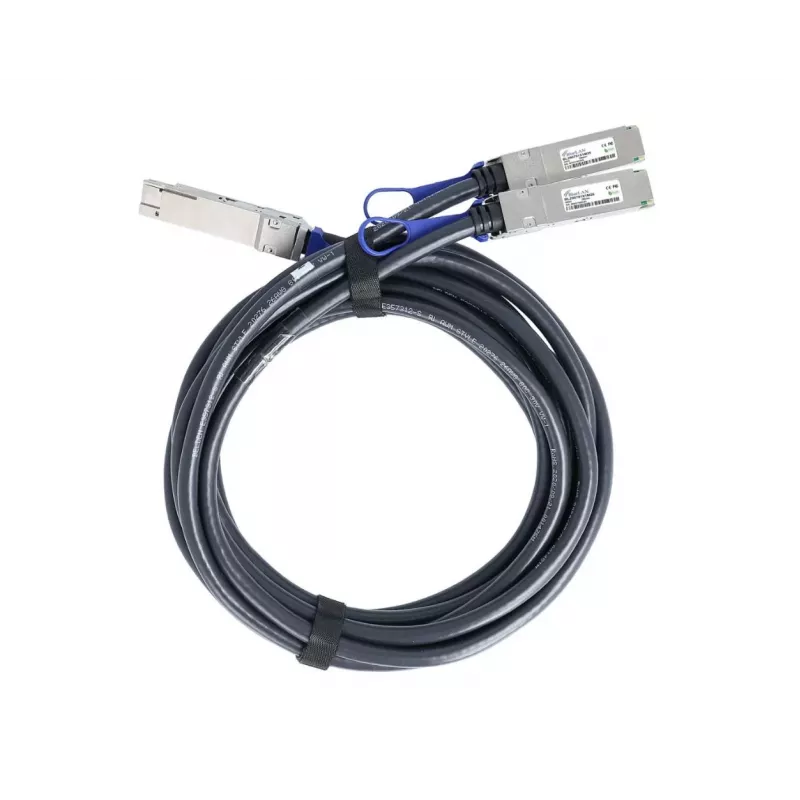

BlueLAN FN-CABLE-QSFPDD-2QSFP56-L1-BL 400G DAC breakout kábel QSFP-DD na 2x QSFP56, 1m

The BlueLAN FN-CABLE-QSFPDD-2QSFP56-L1-BL is a high-performance passive Direct Attach Copper (DAC) breakout cable designed for 400G data center interconnects. It converts a single QSFP-DD port into two QSFP56 ports, enabling flexible network architecture and cost-effective upgrades. Compliant with IEEE 802.3cd 400GBASE-CR8 and 200GBASE-CR4 standards, this cable delivers reliable, low-latency connectivity for Fortinet equipment.

Advantages

Ultra-low power consumption (passive design), hot-pluggable for easy installation, and robust copper construction ensures signal integrity over 1 meter. The breakout configuration maximizes port utilization and reduces cabling complexity.

Suitable for

• Fortinet FortiSwitch and FortiGate with QSFP-DD/QSFP56 ports
• High-speed data center interconnects
• Server-to-switch and switch-to-switch links

Key specifications

• Cable Type: Direct Attach Copper (DAC) Breakout
• Data Rate: 400 Gbps aggregate (2x 200 Gbps)
• Connectors: 1x QSFP-DD to 2x QSFP56
• Length: 1 Meter
• Technology: Passive
• Impedance: 100 Ohm
• Compatibility: Fortinet

Recommendations

For optimal performance, pair with Fortinet switches supporting QSFP-DD and QSFP56 interfaces. Ensure firmware compatibility for breakout mode.
