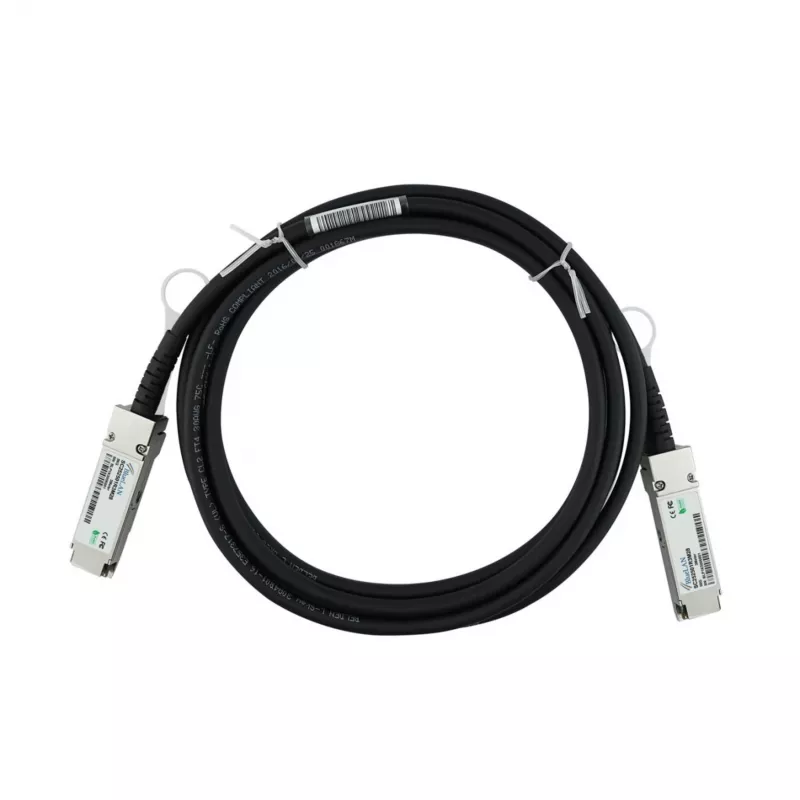

BlueLAN kompatibilný Lenovo A2X8 QSFP Direct Attach kábel, 56G, Infiniband FDR, 28AWG, 2 m

The BlueLAN A2X8-BL is a high-performance QSFP Direct Attach Cable (DAC) designed for compatibility with Lenovo A2X8 and Infiniband FDR compliant devices. This passive copper cable delivers 56 Gbps data rate over a 2-meter length, ensuring reliable, low-latency connectivity for data center and HPC environments.

Advantages

Cost-effective and energy-efficient alternative to active optical cables, with power consumption under 0.5W. Hot-swappable design simplifies installation and maintenance. Compliant with SFF-8436 (QSFP MSA) standards for broad interoperability.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Infiniband FDR networks
• Lenovo A2X8 systems

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Data Rate: 56 Gbps
• Protocol: Infiniband FDR
• Cable Length: 2 meters
• Wire Gauge: 28 AWG
• Connector Type: QSFP to QSFP
• Cable Type: Passive Copper
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure your network equipment supports Infiniband FDR and QSFP interfaces. This cable is ideal for short-reach, high-speed connections within racks or between adjacent racks.
