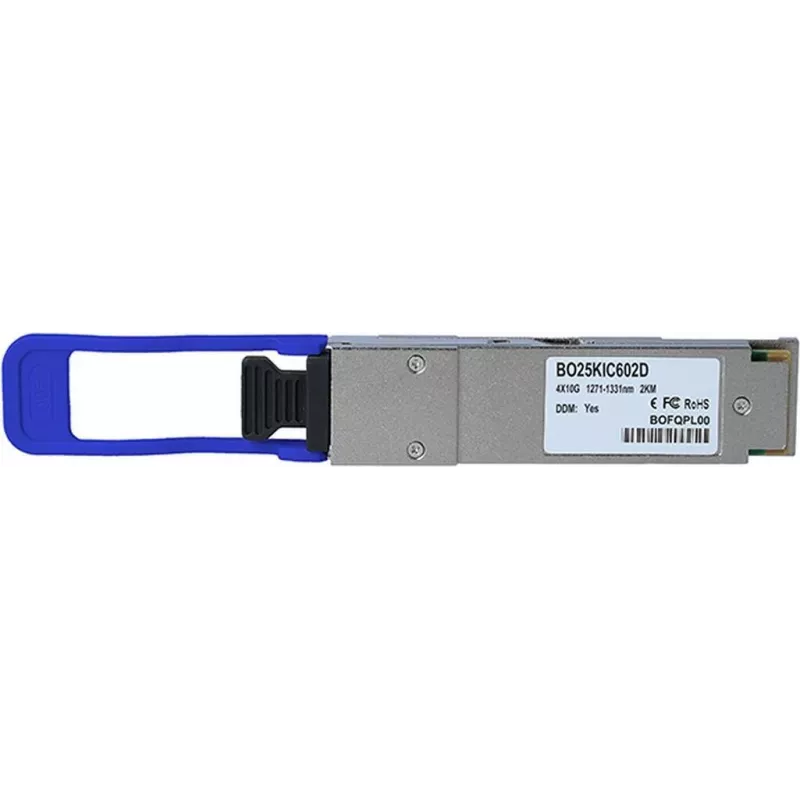

BlueOptics kompatibilný Alcatel-Lucent 40G-QSFP-LM4 QSFP transceiver, LC-Duplex, 40GBASE-LX4, multimód OM4 160m, singlemód 2km, 4xWDM, 0°C až +70°C, DDM 40G-QSFP-LM4-AL-BO

Data centers and enterprise networks often need to bridge short multimode links and longer single-mode runs without changing optics. The BlueOptics 40G-QSFP-LM4-AL-BO solves this by delivering 40 Gigabit Ethernet over both OM4 multimode fiber up to 160 meters and single-mode fiber up to 2 kilometers in a single hot-pluggable QSFP module.

Who is it for

Network engineers and IT managers who operate Alcatel-Lucent switches and need a cost-effective, compatible alternative to the original 40G-QSFP-LM4 transceiver. It is suitable for data center interconnects, enterprise backbone links, and telecom aggregation where mixed fiber types are present.

Main features

• 40GBASE-LX4 Ethernet standard with 40 Gbps data rate
• LC duplex connector for standard fiber patch cables
• Supports OM4 multimode fiber up to 160 m and single-mode fiber up to 2 km
• 4-channel WDM using 1271nm, 1291nm, 1311nm, and 1331nm wavelengths
• Digital Diagnostic Monitoring (DDM) for real-time monitoring of temperature, voltage, and optical power
• Hot-pluggable QSFP form factor for easy installation and replacement
• Operating temperature range 0°C to +70°C
• 3.3V power supply, MSA compliant

Specifications

• Transceiver form factor: QSFP
• Data rate: 40 Gbps
• Ethernet standard: 40GBASE-LX4
• Connector type: LC duplex
• Multimode fiber type: OM4, max distance 160 m
• Single-mode fiber: supported, max distance 2 km
• Wavelengths: 1271nm, 1291nm, 1311nm, 1331nm (4x WDM)
• Operating temperature: 0°C to +70°C
• Digital Diagnostic Monitoring (DDM): Yes
• Hot-pluggable: Yes
• Power supply: 3.3V
• Compliance: MSA

Tips

For maximum performance, use OM4 multimode fiber with low insertion loss connectors when operating at the 160-meter limit. Ensure the switch port is configured for 40GBASE-LX4 and that the firmware supports third-party transceivers if required.
