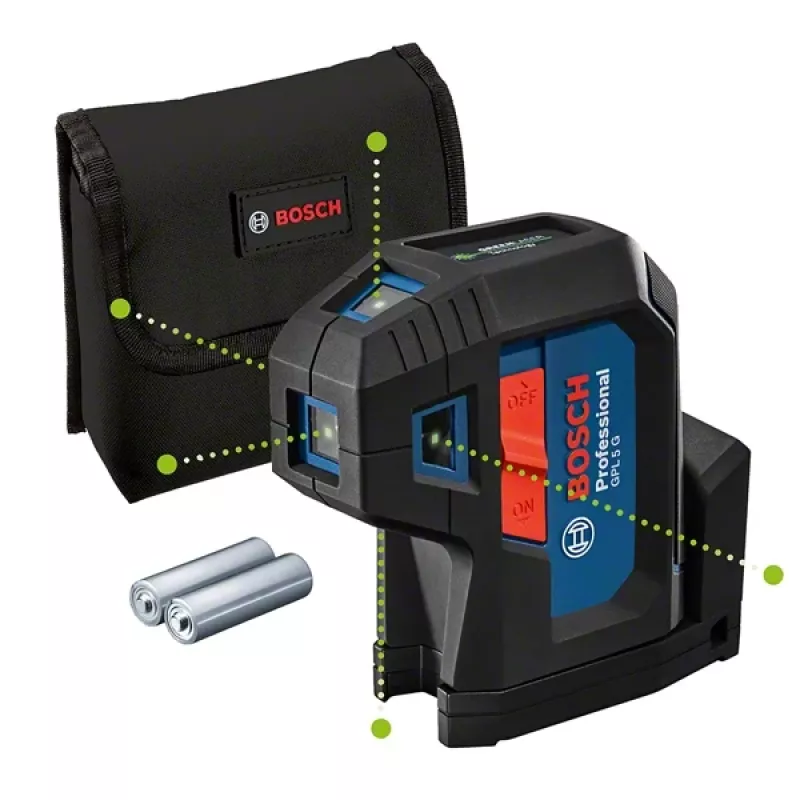

Bodový laser Bosch GPL 5 G 30 m 500-540 nm (< 10mW)

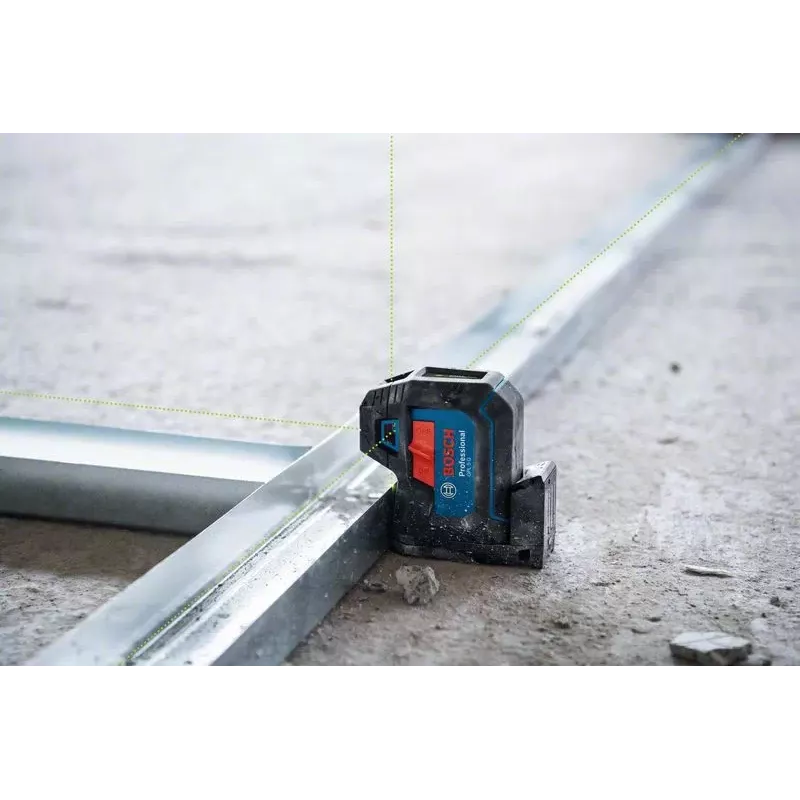

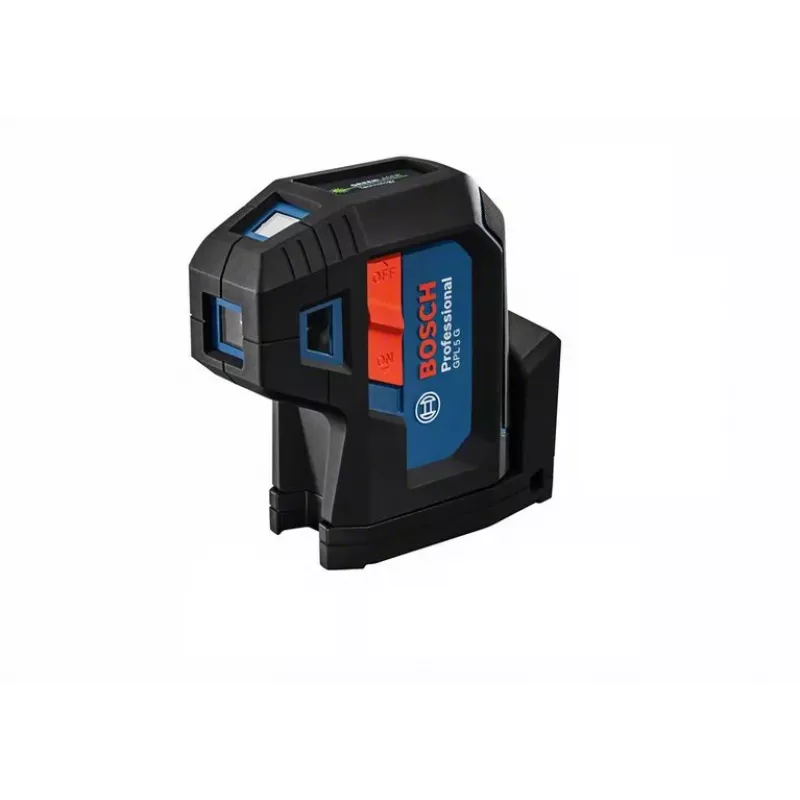

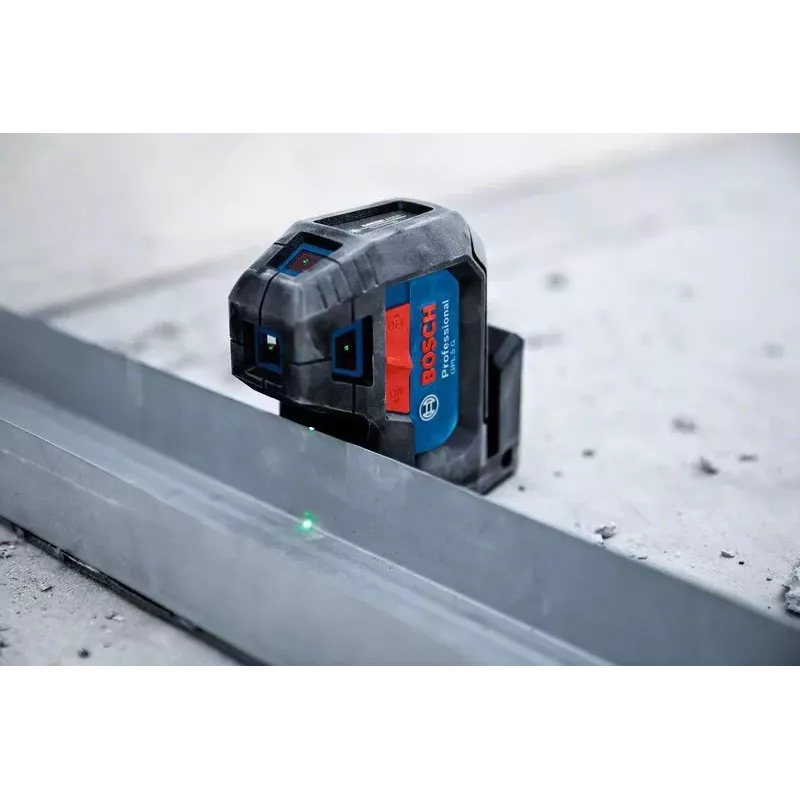

The Bosch Point level GPL 5 G is a compact 5-point laser designed for laying out 90° walls and transferring reference points between floor and ceiling. Its green laser points offer improved visibility compared with red lasers. The unit has a rubberised housing, recessed glass and IP65 protection against dust and water jets, and includes an integrated rotation mount with strong magnets for quick and secure mounting on metal surfaces.

Advantages

The GPL 5 G provides up to four times better point visibility thanks to green diodes and delivers a levelling accuracy of ±0.35 mm/m with a self-levelling range of ±4°. Its robust, compact construction and IP65 rating enhance durability on construction sites, and the two-position switch enables automatic self-levelling or pendulum lock for transport. Battery-powered operation using AA cells allows up to 8 hours of runtime.

Suitable for

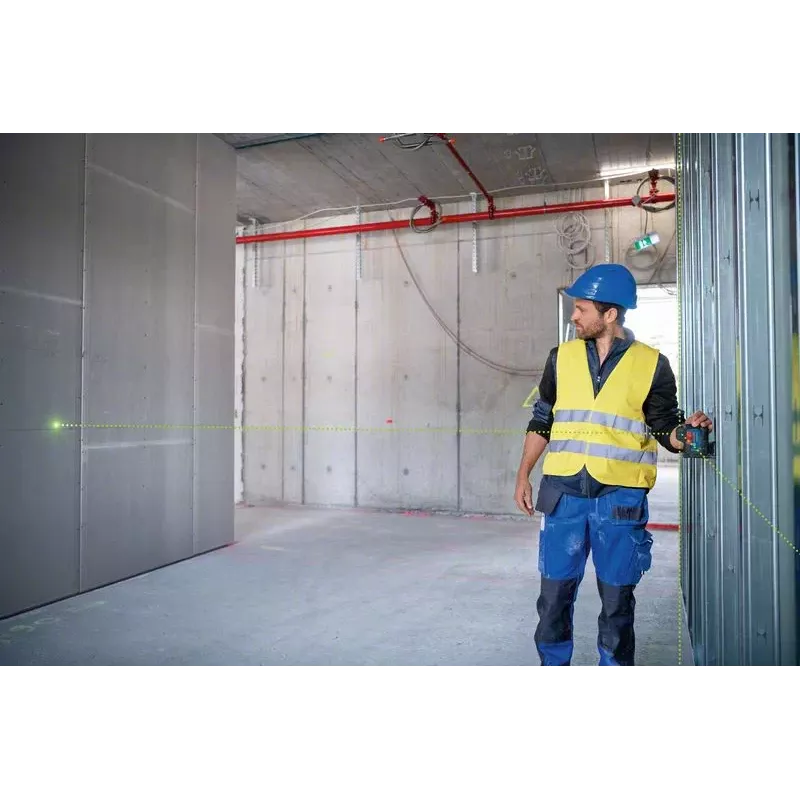

• Laying out 90° walls and room partitioning

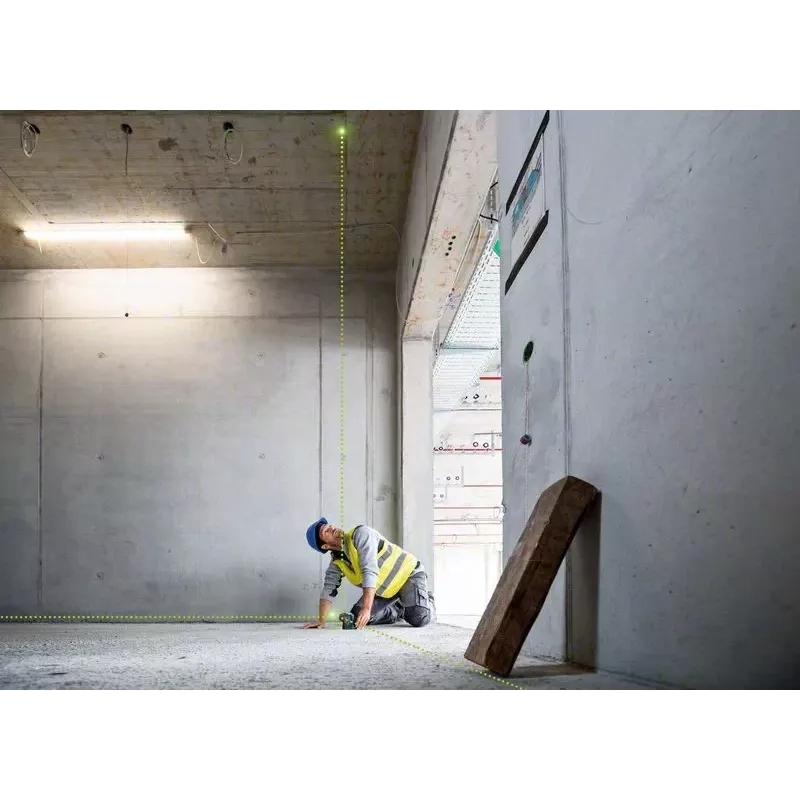

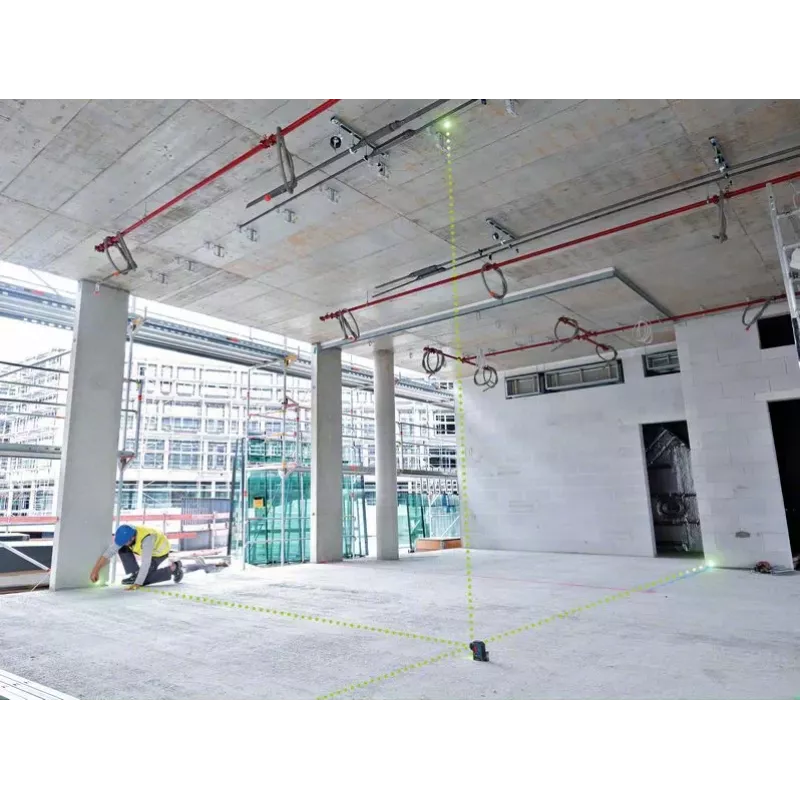

• Transferring points from floor to ceiling
• Plumbing and alignment of fixtures
• Framing and mounting drywall systems

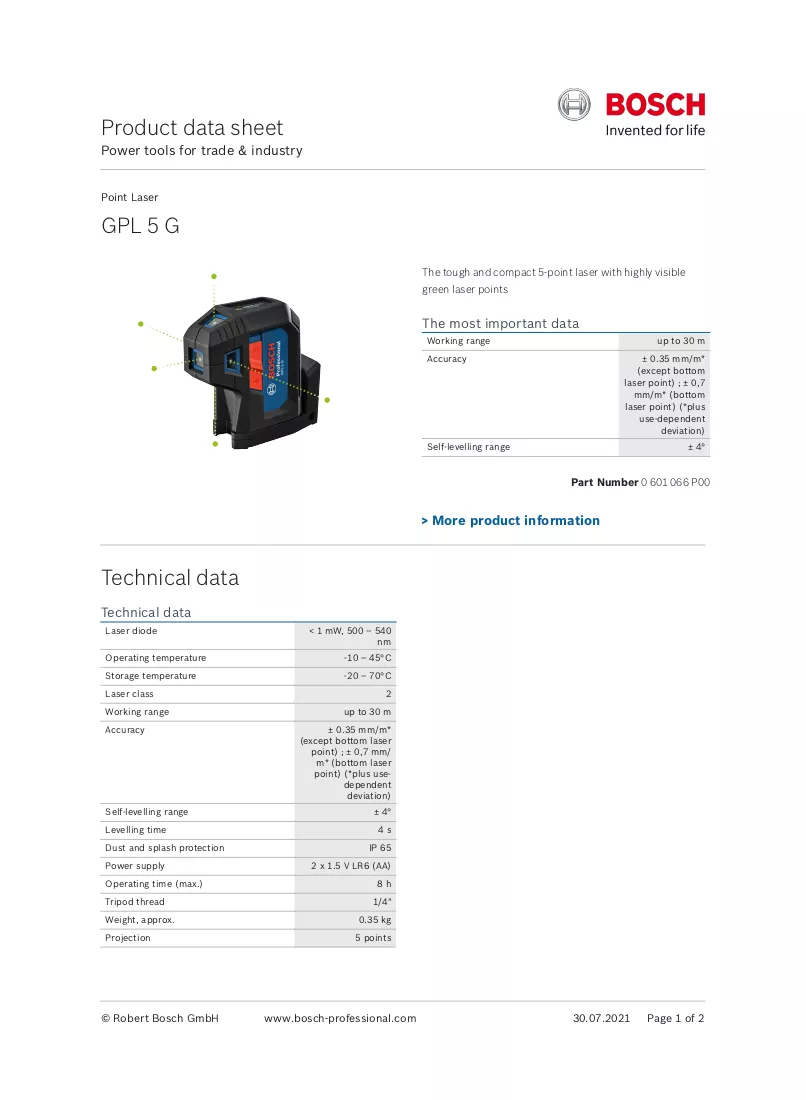

Key specifications

• Model: Bosch GPL 5 G (MPN 0601066P00)
• Laser type: 5-point green laser
• Range: up to 30 m
• Levelling accuracy: ±0.35 mm/m
• Self-levelling range: ±4°
• Power supply: AA batteries (up to 8 hours runtime)
• Dimensions: 115 × 50 × 113 mm
• Tripod thread: 1/4"
• Protection: IP65 (dust and water jets)

How to use

Place or mount the GPL 5 G on a stable surface or attach it to a metal structure using the integrated rotation mount and magnets. Turn the device on with the two-position switch; in the on position the instrument self-levels automatically within ±4°. Use the projected points to mark 90° layouts, transfer points from floor to ceiling, or align fixtures. When finished or for transport, switch the unit off to lock the pendulum.

Recommendations

For best visibility and accuracy, use the Bosch GPL 5 G within its specified range (up to 30 m) and operate on fresh AA batteries. Avoid exposing the laser optics to direct impact; clean the recessed glass with a soft, dry cloth. When mounting on metal surfaces, ensure the rotation mount is firmly engaged with the magnets for secure positioning.
