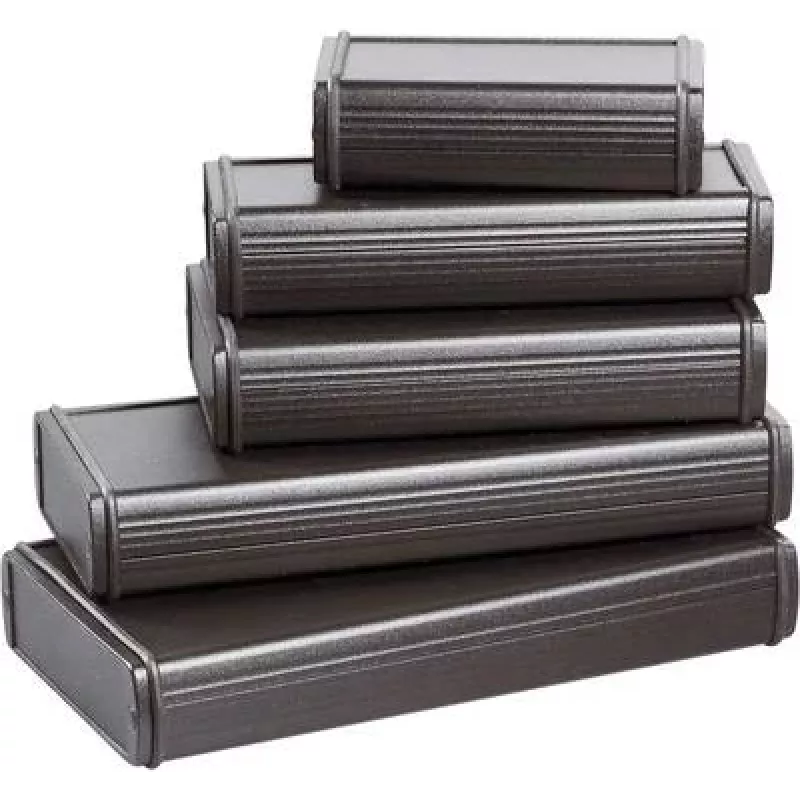

Bopla ABPH 820-150 hliníkové profilové puzdro 150 x 82 x 22 mm čierna 84826150.H

The Bopla ABPH 820-150 stands apart from typical plastic enclosures by combining a lightweight aluminium profile with a robust screw-together design. Its 150 mm length and integrated PCB mounting grooves offer a practical foundation for industrial electronics, control systems, and measurement devices where durability and machinability are essential.

Highlights

• Aluminium AlMgSi 0.5 profile with anodized surface finish in black (RAL 9005)
• External dimensions: 150 mm length, 82 mm width, 22 mm height
• Internal PCB mounting width of 78 mm and usable height of approximately 18 mm
• Integrated grooves for secure PCB mounting without additional brackets
• Screw-together construction with end covers for easy assembly and access
• Temperature range from -40 °C to +80 °C for demanding environments

In daily use

The ABPH 820-150 is straightforward to work with: the aluminium profile can be machined for custom cutouts, and the integrated grooves simplify PCB installation. The anodized finish provides a clean appearance and resistance to surface wear, while the compact height makes it suitable for space-constrained applications.

Full specifications

• Enclosure type: Aluminium profile enclosure
• Material: Aluminium AlMgSi 0.5
• Colour: Black (RAL 9005)
• External dimensions: 150 x 82 x 22 mm
• Internal PCB mounting width: 78 mm
• Internal usable height: approx. 18 mm
• Protection class: IP40
• Surface finish: Anodized
• Mounting features: Integrated grooves for PCB mounting
• Assembly: Screw-together design with end covers
• Temperature range: -40 °C to +80 °C
• Application area: Industrial electronics, control systems, measurement devices, IoT
• Design: Robust, lightweight profile construction
• Customization: Easily machinable for cutouts
• Series: ABPH
• Included components: Aluminium profile, 2 end covers, mounting screws

Final note

For engineers and integrators needing a reliable, customizable enclosure, the ABPH 820-150 offers a proven aluminium solution with precise dimensions and a professional finish.
