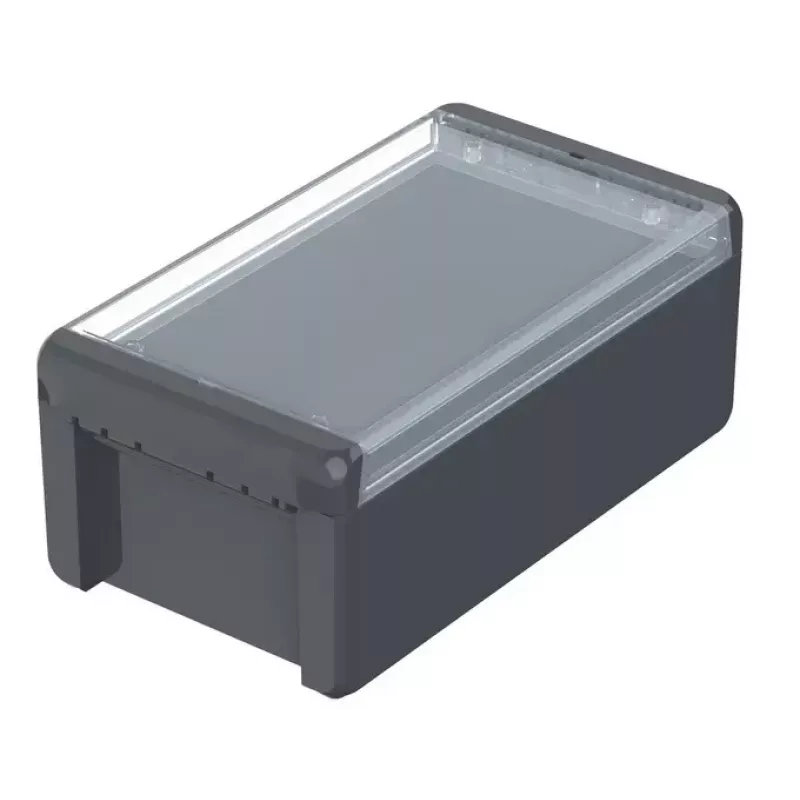

BOPLA nástenné puzdro, inštalačné puzdro polykarbonát grafitovosivá (RAL 7024) 90 x 125 x 231 9602523 (96025234)

This wall-mount enclosure from BOPLA is a robust housing for industrial electronics, offering high mechanical strength and IP65 protection. Its polycarbonate construction in graphite grey (RAL 7024) ensures durability in demanding environments.

Advantages

The enclosure features a smooth surface, integrated mounting bosses for PCBs or mounting plates, and external screw channels for easy wall installation. The lid is secured with stainless steel screws and includes a polyurethane gasket for reliable sealing.

Suitable for

• Industrial electronics
• Automation systems
• Measurement and control technology

Key specifications

• Material: Polycarbonate (PC)
• Colour: Graphite Grey (RAL 7024)
• Dimensions: 90 x 125 x 231 mm (W x H x D)
• Protection class: IP65
• Flammability rating: UL 94 V-0
• Impact resistance: IK08
• Operating temperature: -40°C to +80°C
• UV resistant
• Halogen-free
• RoHS compliant

Recommendations

Ideal for housing sensitive electronics in industrial settings where protection against dust, water, and mechanical impact is required.
