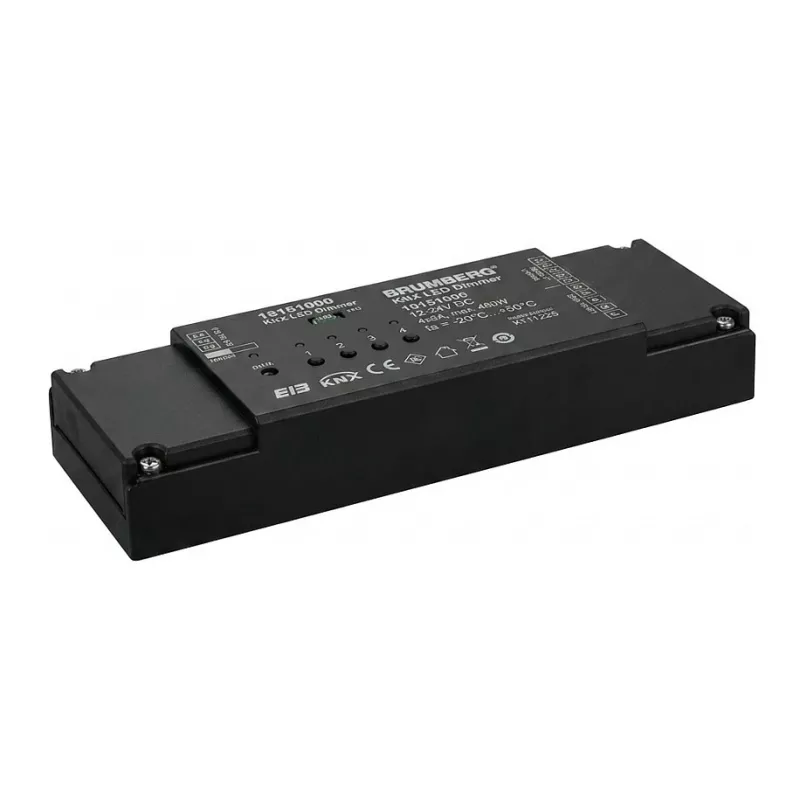

Brumberg 18151000 KNX stmievač 240W 12-24V DC čierny

The Brumberg 18151000 is a high-performance KNX dimmer designed for constant voltage LED lighting systems. It supports 12-24V DC input and output, delivering up to 480W at 24V or 240W at 12V with a maximum current of 20A. This single-channel dimmer uses PWM control for smooth 0-100% dimming and is suitable for flush-mounted installation. Housed in a black plastic enclosure with IP20 protection, it includes overload, short-circuit, and overtemperature protection. Ideal for residential and commercial KNX installations.

Advantages

Reliable KNX bus integration, high power capacity, and comprehensive protection features ensure safe and efficient dimming control.

Suitable for

• Constant voltage LED strips and modules
• KNX building automation systems
• Flush-mounted cavity installations

Key specifications

• Control Protocol: KNX Bus System
• Dimming Type: Constant Voltage (CV) PWM
• Input Voltage: 12-24V DC
• Output Voltage: 12-24V DC
• Max. Output Power: 480W (24V) / 240W (12V)
• Max. Output Current: 20A
• Number of Channels: 1
• Dimming Range: 0-100%
• Protection Rating: IP20
• Safety Class: Class III
• Mounting Type: Flush-mounted / Cavity Installation
• Operating Temperature: -20°C to +50°C
• Standby Power Consumption: < 0.5W
• Protection Features: Overload, Short-circuit, Overtemperature
• Housing Material: Plastic
• Color: Black

Recommendations

For optimal performance, use with compatible KNX controllers and ensure proper ventilation during installation.
