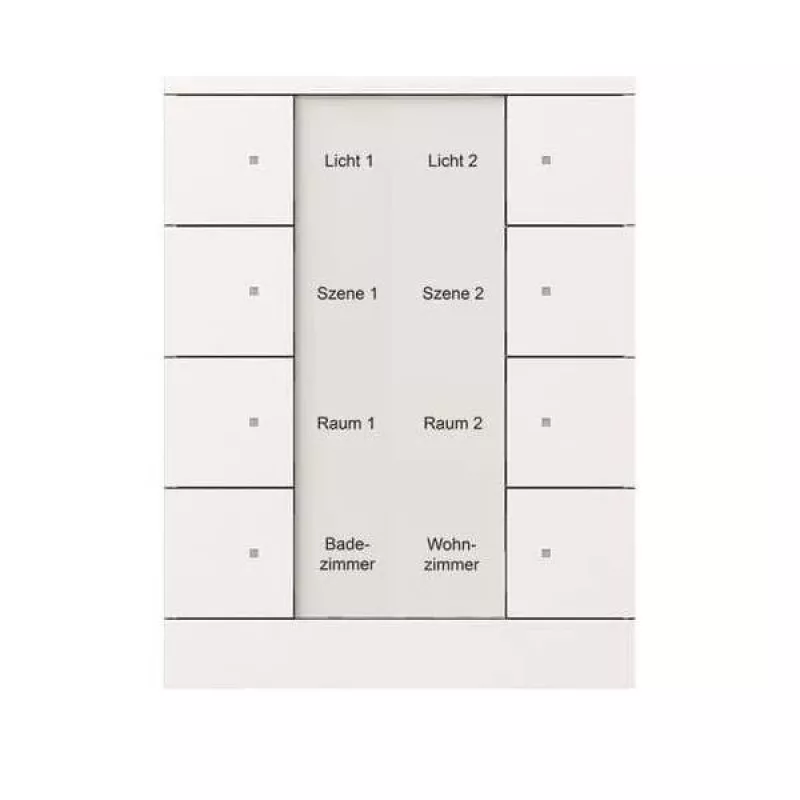

Busch-Jaeger free@home 8-násobný tlačidlový senzor, štúdiová biely 2CKA006330A0013

Managing multiple lighting circuits, blinds, and scenes from a single wall station can quickly become cluttered and confusing. The Busch-Jaeger SB/U8.0.11-84 solves this by consolidating eight independent control points into one elegant, flush-mounted panel. Each rocker provides tactile feedback and is paired with an integrated LED status indicator, so you always know the current state of your connected devices.

Who is it for

This 8-fold push-button sensor is built for residential and commercial projects using the Busch-free@home bus system. It suits electricians, system integrators, and homeowners who want a clean, multi-functional control interface without multiple separate switches. It is especially useful in open-plan living areas, meeting rooms, or hotel suites where centralized control of lighting, shading, and scenes is required.

Main features

• 8-gang control element for switching, dimming, blind control, scene recall, and value transmission.
• Integrated LED status indicators for each channel provide clear visual feedback.
• Flush-mounted design compatible with various Busch-Jaeger switch ranges (future® linear, carat®, solo®, pure steel®, alpha®, Busch-Duro 2000® SI/SI Linear).
• Powered directly from the free@home bus (24 V DC), no separate power supply needed.
• Configured via the free@home System Access Point or web interface.

Specifications

• Product type: Push-button sensor / control element
• System: Busch-free@home
• Number of control points: 8
• Colour: Studio white
• Mounting type: Flush-mounted
• Material: Thermoplastic (PC/ABS)
• Operating voltage: 24 V DC (via bus)
• Protection class: IP20
• Operating temperature: 5 °C to 45 °C
• Relative humidity: 5 % to 95 % (non-condensing)
• Installation depth: approx. 32 mm
• Manufacturer part number: 2CKA006330A0013

Tips

Pair this sensor with a compatible flush-mounted insert from the Busch-free@home range. For a cohesive look, select a cover frame from the same design line as your other Busch-Jaeger devices. Configuration is done entirely in software, so no physical addressing is required.
