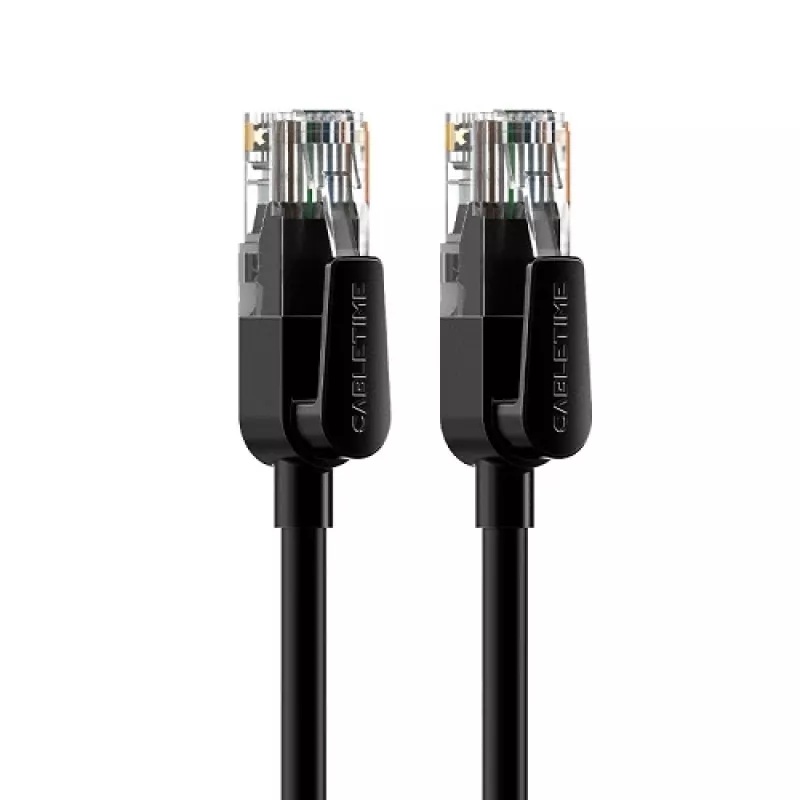

CABLETIME Cat6 UTP sieťový kábel 20 m, čierny

The Cat6 cable is intended for structured computer networks, IP telephony and transmission of data and video signals. This high-quality Cat6 cable with RJ45 connectors supports Gigabit Ethernet and is suitable for indoor applications such as connecting computers, servers, IP cameras, switches, routers, set-top boxes and game consoles. The cable is backward compatible with Cat5E network configurations and designed for stable performance during large file transfers, online gaming and HD video streaming.

Advantages

The cable provides fast data transfer at up to 1000 Mbps and a channel bandwidth of 250 MHz. It uses four unshielded twisted pairs (UTP) with an internal cross-shaped separator to reduce crosstalk and improve signal integrity. Gold-plated copper contacts increase corrosion resistance and conductivity, while PVC insulation and a polycarbonate RJ45 latch ensure durability for up to 2000 insertions. Wiring follows the ANSI/TIA/EIA-568B standard.

Key specifications

• Cable type: UTP Cat6 (unshielded)
• Connectors: RJ45 (male), 8-contact plugs (8P8C)
• Data transfer rate: 10/100/1000 Mbps
• Channel bandwidth: 250 MHz
• Internal conductor: CCA (aluminum with copper coating)
• Conductor gauge: 26 AWG
• Contacts: copper with gold plating
• Insulation: PVC
• Wiring standard: TIA/EIA-568B
• Outer diameter: 6.0 mm
• Cable color: black
• Cable length: 20 m
• Usage: indoor
• Warranty: 12 months

How to use

Connect the RJ45 plug to the network port of your device (computer, router, switch or IP camera) until the latch clicks. Ensure wiring and port settings on equipment support Gigabit Ethernet if required. Route the cable indoors avoiding sharp bends and sources of strong electromagnetic interference. For reliable performance, follow standard installation practices and the ANSI/TIA/EIA-568B wiring scheme when terminating or testing connections.

Recommendations

The Cat6 cable is suitable for typical indoor network installations; for outdoor use or runs near high-interference equipment consider cables with shielding or special outdoor-rated jackets. Test connections after installation to confirm Gigabit link and proper wiring.
