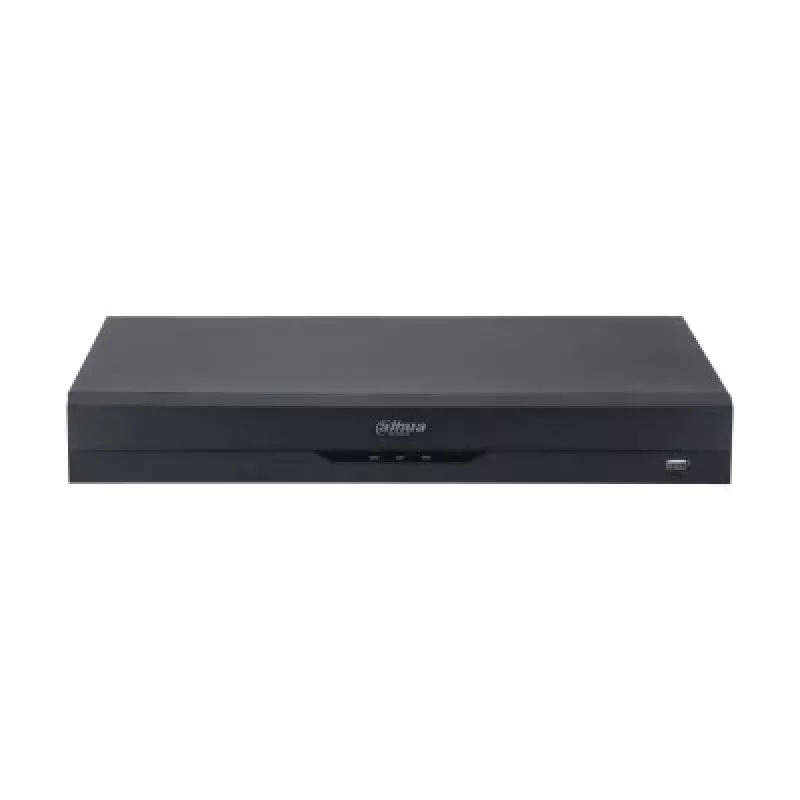

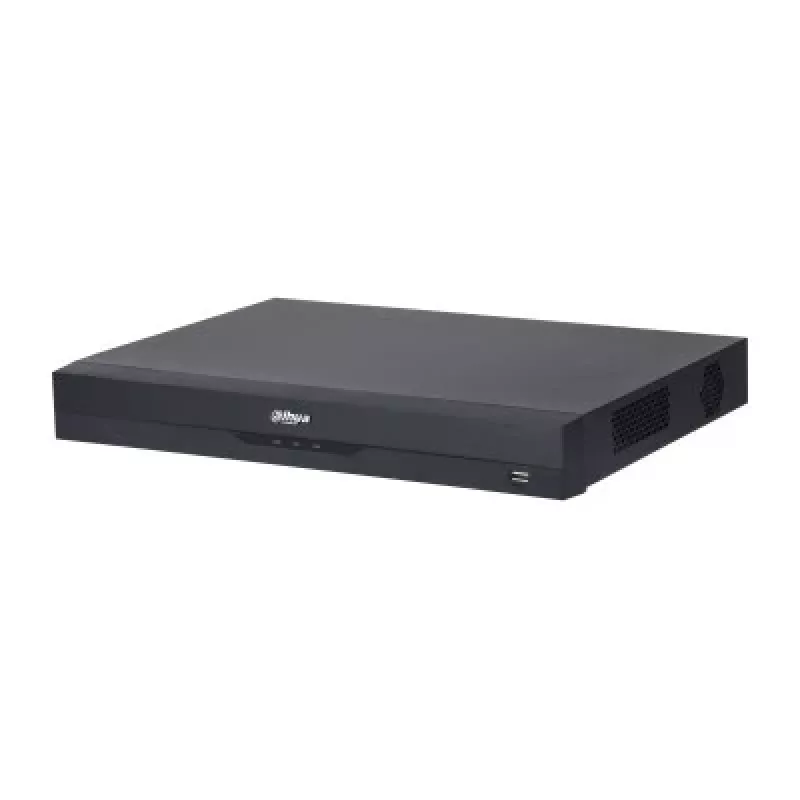

Dahua Technology XVR5232AN-I3 5-in-1 rekordér, 32 kanálov, čierny

The Dahua Technology XVR5232AN-I3 is a high-performance 5-in-1 digital video recorder supporting HDCVI, AHD, TVI, CVBS, and IP cameras. With 32 analog channels and up to 48 total channels (including 16 IP), this recorder delivers advanced AI features like perimeter protection, SMD Plus, and face detection. Ideal for medium to large surveillance systems, it offers H.265+ compression, dual HDD support up to 20TB, and versatile video outputs.

Advantages

This recorder combines multiple camera technologies into one unit, simplifying system integration. AI-powered analytics reduce false alarms and enhance security monitoring. The compact 1U design saves rack space while providing robust recording and playback capabilities.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions
• Government facilities

Key specifications

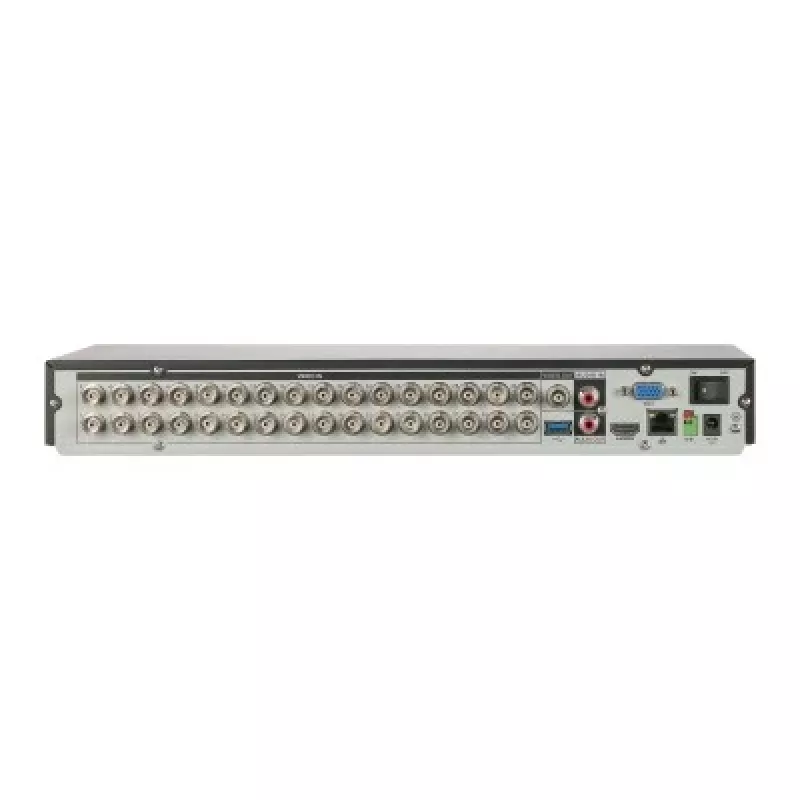

• Video Input: 32 channels BNC (analog) + up to 16 IP channels
• Compression: AI Coding / H.265+ / H.265 / H.264+ / H.264
• Recording Resolution: Up to 1080P@15fps (analog)
• Video Output: 1x HDMI, 1x VGA (simultaneous)
• Audio: 1x RCA in, 1x RCA out (two-way talk)
• HDD: 2 SATA bays, up to 10TB each (20TB total)
• Network: 1x RJ-45 10/100/1000 Mbps
• USB: 1x USB 2.0, 1x USB 3.0
• AI: Perimeter protection (4 ch), SMD Plus (32 ch), face detection (2 ch)
• Power: DC12V/5A
• Dimensions: Compact 1U form factor

Recommendations

For optimal performance, pair with Dahua AI cameras and use high-quality SATA III HDDs. Ensure proper ventilation and use a UPS for reliable operation.
