DC napájací zdroj MEAN WELL DCWN03B-15 3W 15V 18-36V vstup

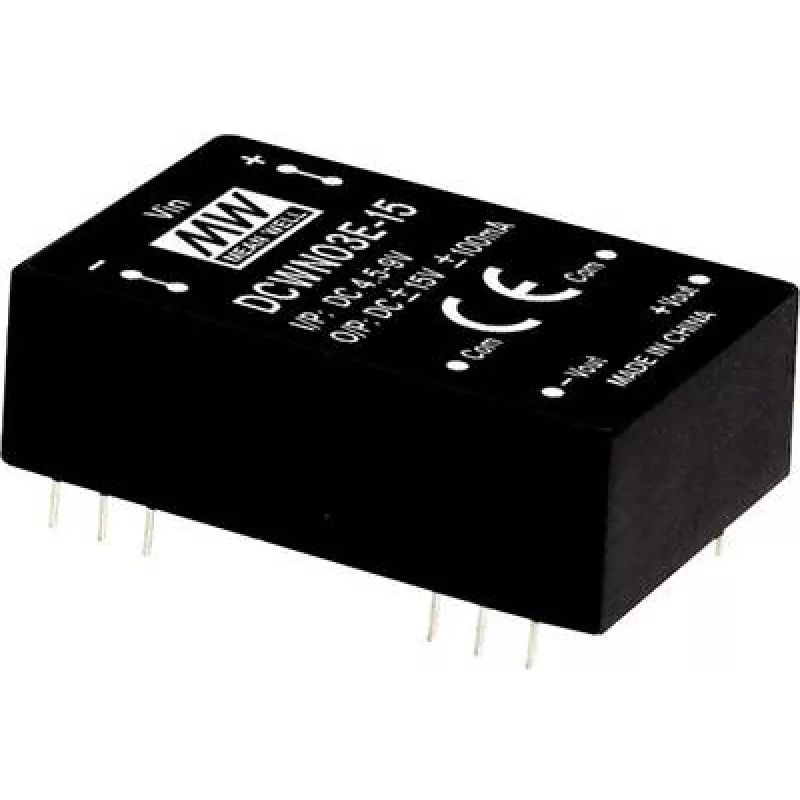

The MEAN WELL DCWN03B-15 is a regulated DC-DC dual output converter in a DIP through-hole package designed for applications requiring isolated bipolar supplies. It accepts a wide input range of 18–36 VDC and provides dual outputs of ±15 VDC at ±0.1 A with 3000 VDC input-to-output isolation. The module delivers a total output power of 3 W and conforms to RoHS environmental requirements.

Advantages

The DCWN03B-15 offers regulated dual outputs with high input-to-output isolation, compact DIP through-hole packaging for easy PCB mounting, and a broad input voltage window that suits varied DC supply sources. Its RoHS compliance ensures reduced hazardous substances in manufacturing and disposal.

Suitable for

• Signal conditioning and analog circuits that require bipolar supplies
• Isolated sensor interfaces and data acquisition modules
• Industrial control circuits needing compact isolated power
• Low-power embedded systems and test equipment

Key specifications

• Model: MEAN WELL DCWN03B-15 (MPN: DCWN03B-15)
• Input voltage: 18–36 VDC
• Output voltage: ±15 VDC
• Output current: ±0.1 A
• Total output power: 3 W
• Isolation: 3000 VDC input-to-output
• Package: DIP through-hole
• Compliance: RoHS
• EAN: 4021087046916

How to use

Mount the DCWN03B-15 in a compatible through-hole footprint on the PCB, ensuring correct pin orientation for input, output and ground connections. Apply a DC input between 18 and 36 V and verify the output rails with a meter before connecting sensitive circuitry. Provide adequate clearance and common-mode considerations to maintain the specified 3000 VDC isolation. Follow the manufacturer's layout recommendations for grounding and decoupling to ensure stable regulation.

Recommendations

Use appropriate input filtering and transient protection on the 18–36 VDC supply, avoid exceeding the ±0.1 A output current, and keep the device within recommended ambient temperature limits. For applications requiring higher current or additional protections, select a converter with suitable ratings.
