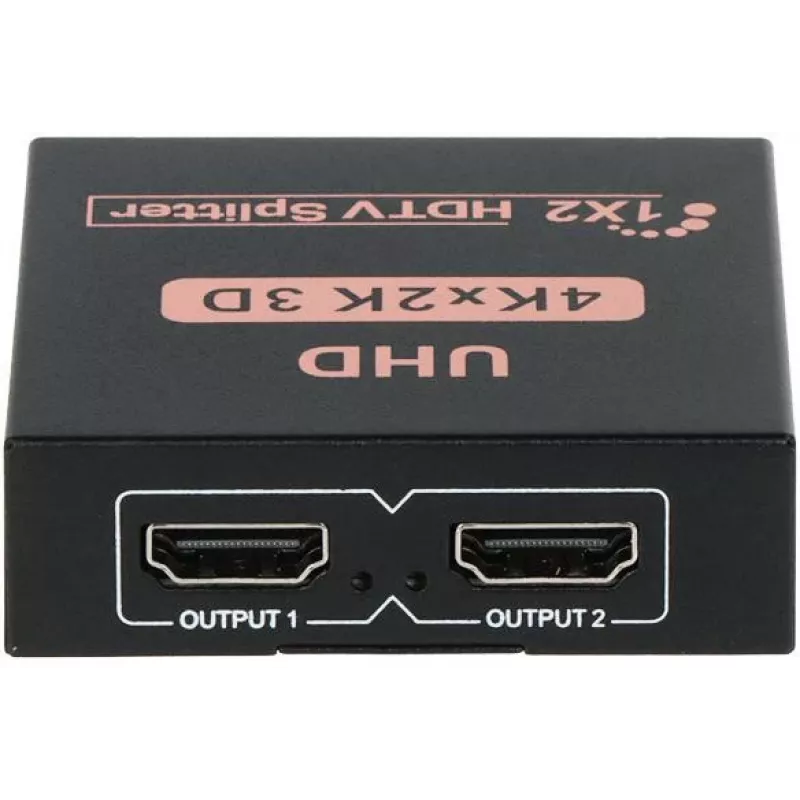

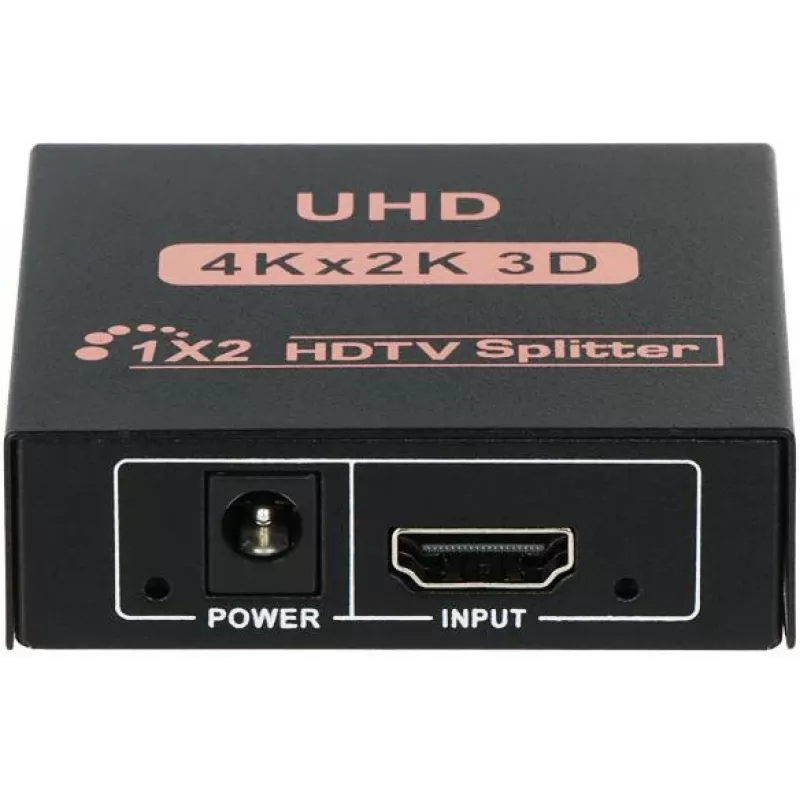

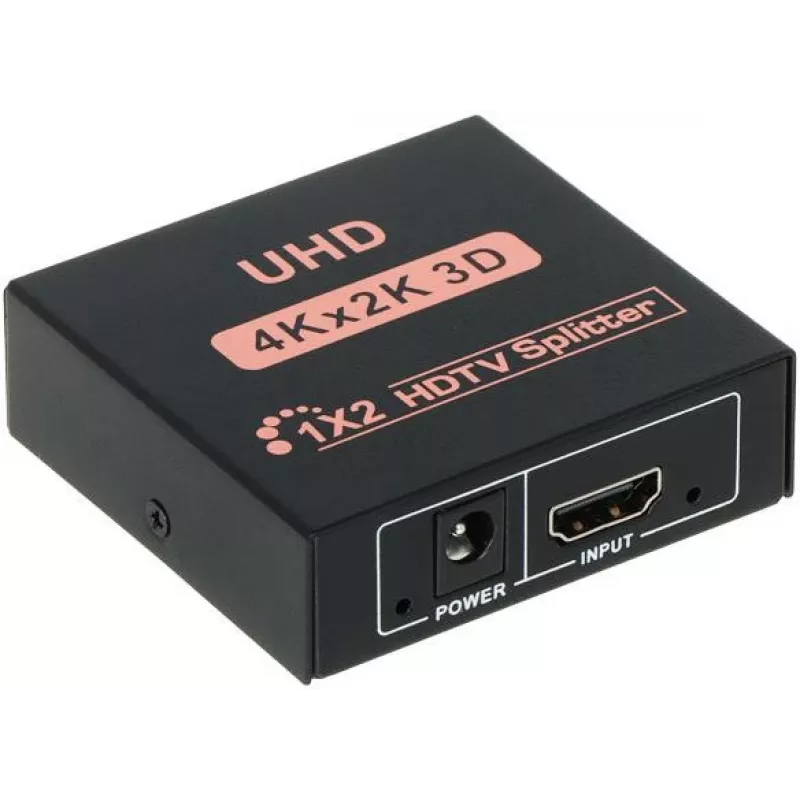

DELTA HDMI splitter 1x2 4K 30Hz HDMI-SP-1/2KF-V3

The DELTA HDMI-SP-1/2KF-V3 is a high-performance HDMI splitter that distributes a single HDMI source to two displays simultaneously. Supporting resolutions up to 4K@30Hz and HDMI 1.4b, it ensures crisp, clear video and multi-channel audio. The metal casing provides durability and effective heat dissipation, while LED indicators show power and active port status.

Advantages

This splitter allows you to connect two monitors or TVs to one source without signal degradation. It supports 3D and 4K content, making it ideal for home theaters, presentations, or digital signage. The compact design and USB power supply make installation simple and flexible.

Suitable for

• Home entertainment systems
• Office presentations and conferences
• Digital signage and retail displays
• Education and training environments

Key specifications

• HDMI Standard: 1.4b
• HDCP Version: 1.4
• Max Resolution: 3840x2160 @ 30Hz
• Max Bandwidth: 10.2 Gbps
• Input: 1 x HDMI Female
• Output: 2 x HDMI Female
• Power Supply: DC 5V/1A via USB
• Max Input Cable Length: 15m (AWG26)
• Max Output Cable Length: 25m (AWG26)
• Casing Material: Metal
• Color: Black
• LED Indicators: Power, Active Port

Recommendations

For best performance, use high-speed HDMI cables with Ethernet (AWG26 or better). Ensure the power adapter is connected to a stable USB power source. This splitter is not a switch or matrix; it duplicates the same signal to both outputs.
