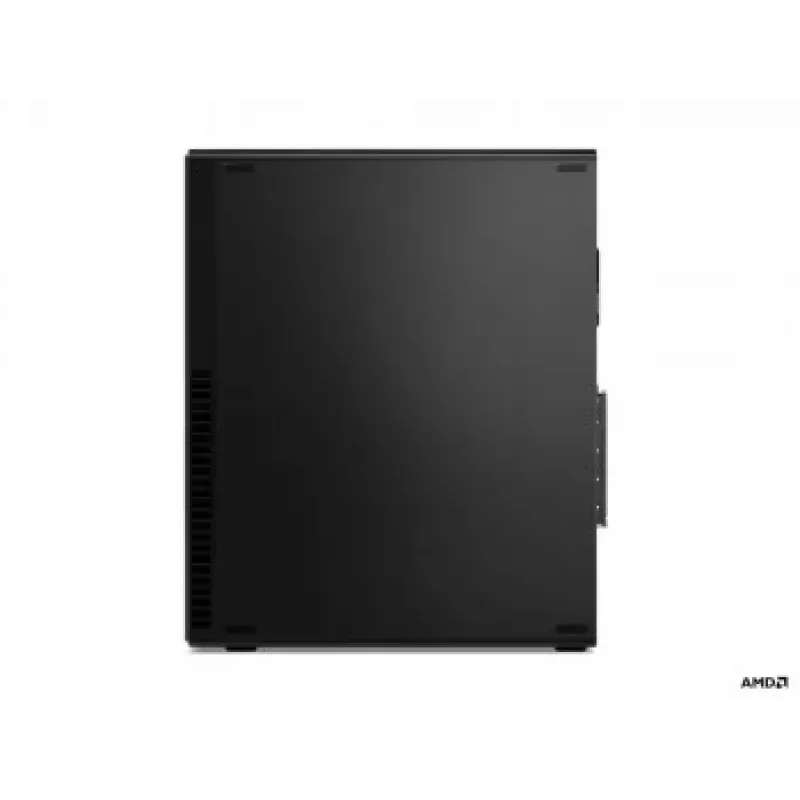

Desktop PC Lenovo M75s G2 SFF — AMD Ryzen 5 PRO 5650G, 16 GB RAM, 512 GB SSD, ODD, Windows 11 Pro

The LENOVO M75S G2 SFF is a compact desktop computer powered by an AMD Ryzen 5 PRO 5650G processor with up to 4.40 GHz boost. It comes with 16 GB DDR4 memory (3200 MHz), a 512 GB M.2 PCIe NVMe SSD and an optical drive. The system ships with Windows 11 Pro and integrates AMD Radeon Graphics that use system memory. The small-form-factor chassis includes a cable lock slot and a Trusted Platform Module (TPM 2.0).

Advantages

This Lenovo desktop combines a six-core AMD Ryzen PRO CPU and fast NVMe storage for responsive multitasking and quick application launch. The compact SFF design saves workspace while offering a range of wired connectivity options (Ethernet, multiple USB-A and USB-C ports, HDMI and DisplayPort outputs and RS-232). Energy and environmental certifications (EPEAT Silver, Energy Star 8.0, ErP, RoHS, TCO 8.0) support lower operational impact.

Suitable for

• Office productivity and business applications
• Point-of-sale and legacy device connectivity via RS-232
• Workstations with limited desk space
• Deployment in managed IT environments requiring TPM and Windows 11 Pro

Key specifications

• Processor: AMD Ryzen 5 PRO 5650G, 6 cores, up to 4.40 GHz
• Graphics: Integrated AMD Radeon Graphics (uses system memory)
• Memory: 16 GB DDR4 (3200 MHz), upgradable to 128 GB; 3 memory slots (available)
• Storage: 512 GB M.2 PCIe NVMe SSD; optical drive included
• Operating system: Windows 11 Pro
• Ports and expansion: 4 × USB-A 3.2, 4 × USB-A 2.0, 1 × USB-C 3.2 (Gen1), 2 × DisplayPort, 1 × HDMI, 1 × RJ-45 Ethernet, 1 × RS-232 serial, audio 3.5 mm, card reader
• Power supply: 180 W
• Form factor and dimensions: Small Form Factor (SFF), 92.5 × 297.7 × 339.5 mm; weight approx. 5300 g
• Security and manageability: Cable lock slot, TPM 2.0
• Environmental certifications: EPEAT Silver, Energy Star 8.0, ErP, RoHS compliant, TCO 8.0
• Lifecycle estimate: product life cycle 5 years, estimated CO2 emissions 1076 kg

How to use

Set the SFF chassis on a stable surface with adequate ventilation. Connect power and a wired Ethernet cable or peripheral devices to the rear and front ports as required. Install user applications on the preinstalled Windows 11 Pro, and use the M.2 NVMe SSD for the operating system and primary data storage. Expand memory or add storage through available internal slots following standard ESD precautions and the manufacturer’s service instructions.

Recommendations

For business deployments, keep the system firmware and Windows 11 Pro updates current, enable TPM-based features for device security, and use wired networking where wireless is not available. Consider memory expansion up to the supported maximum for demanding multitasking workloads.
