DIP prepínač DeLOCK 66408

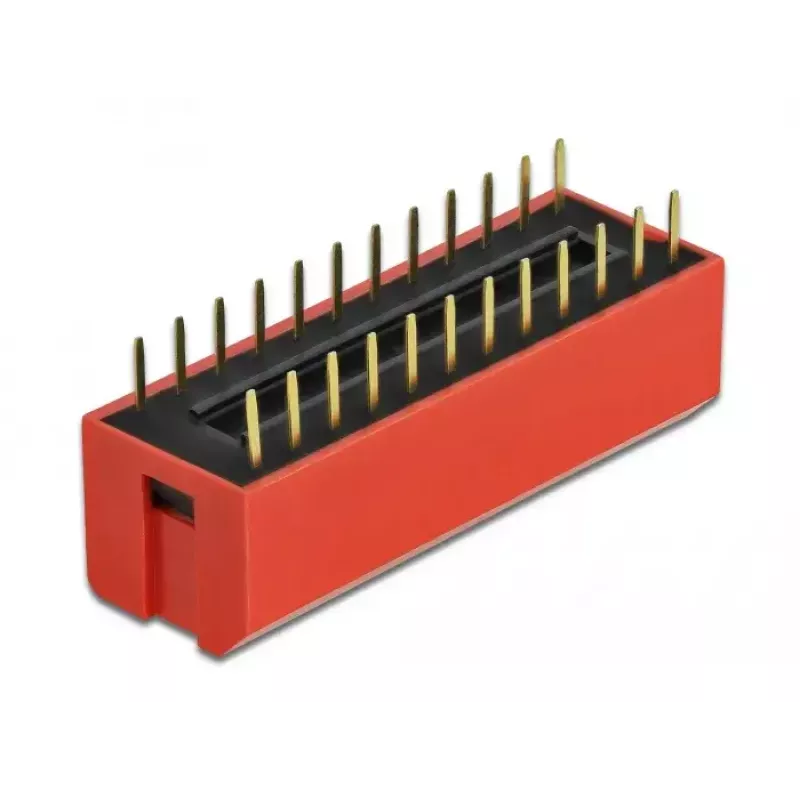

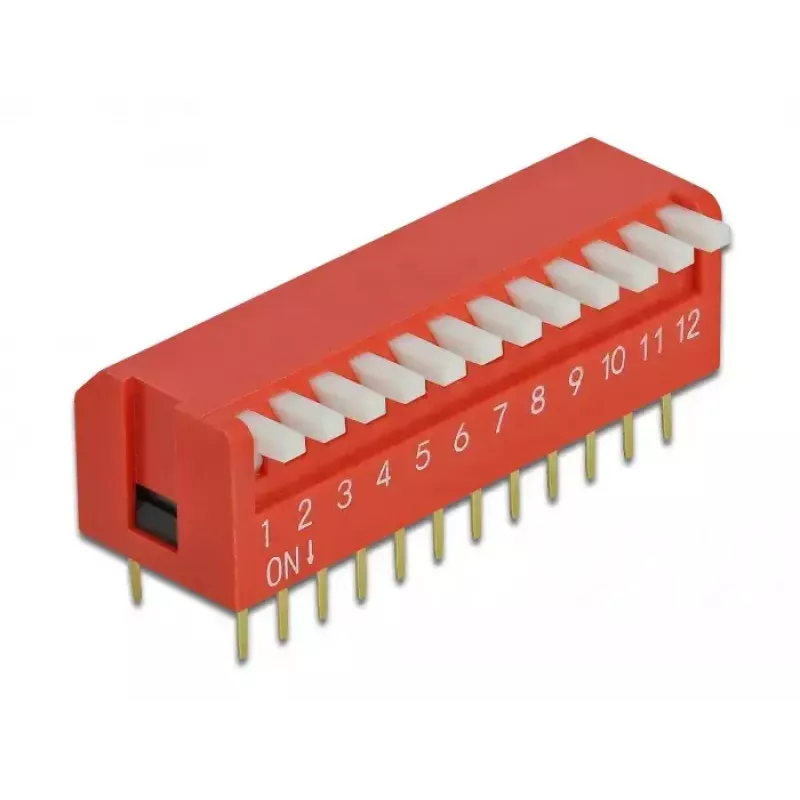

The DeLOCK 66408 is a red DIP switch designed for through-hole (THT) mounting on printed circuit boards. Made of durable plastic, it measures 32.1 mm (length) × 10.8 mm (depth) × 9.6 mm (height) and provides a compact, reliable means to set configurations or change parameters in electronic devices.

Advantages

This DIP switch supports THT assembly technology with soldering pins that insert through PCB contact holes and are soldered from the boards underside. The compact dimensions and robust plastic housing make it suitable for use in space-constrained circuit board layouts while offering stable mechanical switching positions.

Suitable for

• Telecommunications equipment
• Computer and peripheral circuitry
• Measurement and test instruments

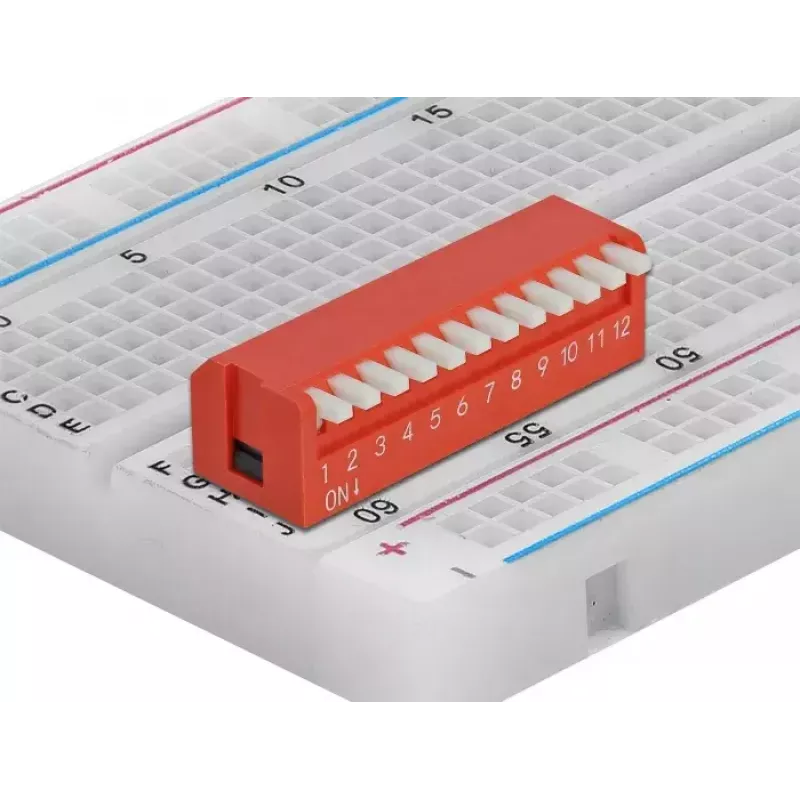

• General circuit board projects requiring manual configuration switches

Key specifications

• Brand: DELOCK
• Model / MPN: 66408
• EAN: 4043619664085
• Colour: Red
• Mounting: Through-hole (THT)
• Material: Plastic housing
• Dimensions (L × D × H): 32.1 × 10.8 × 9.6 mm

How to use

Insert the soldering pins through the corresponding contact holes on the PCB, position the switch according to the board layout, and solder the pins from the underside of the PCB. Use the individual switch rows to set required binary options or parameters; change positions manually with a small tool or fingertip while power is removed or the circuit is in a safe state.

Recommendations

For reliable operation, perform soldering with appropriate temperature and flux for through-hole components and verify switch positions before powering the device. Use the switch in applications within the components mechanical limits and avoid exposing the plastic housing to excessive heat during soldering.
