DNA T4 100 štvorcová priehradová konštrukcia pre pódiové osvetlenie

Stage technicians and event riggers rely on the DNA T4 100 truss segment to build safe, stable overhead structures for lighting fixtures, LED screens, and stage effects. This 1-meter square truss section is the core building block for creating custom truss systems in clubs, concert venues, exhibition booths, and mobile DJ setups.

Key specifications

• Square 4-point truss with 290 x 290 mm cross-section
• Length: 100 cm (1 meter)
• Main tube diameter: 50 mm, wall thickness: 2 mm
• Brace tube diameter: 20 mm, wall thickness: 2 mm
• Material: Aluminum alloy EN AW-6082 T6
• Connection system: Conical coupler (F34 / X30 compatible)

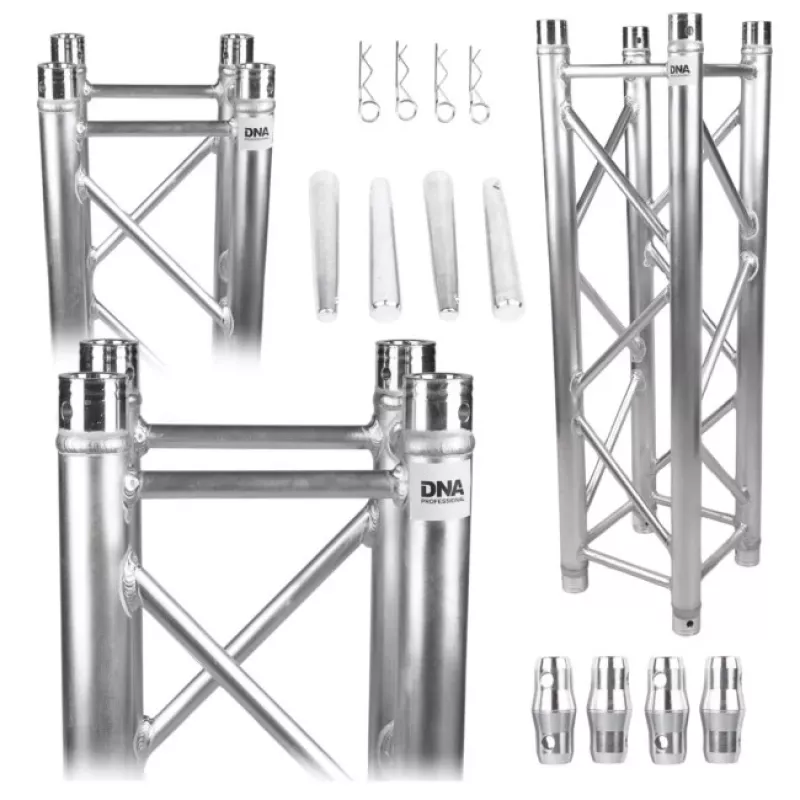

• Included hardware: 4 conical couplers, 8 pins, 8 safety clips
• Natural aluminum finish

Why choose it

The DNA T4 100 combines high-strength aluminum with a tool-free conical connection system, allowing quick assembly and disassembly without compromising safety. Its 50 mm main tubes handle heavy loads while the 20 mm braces provide torsional rigidity, making it suitable for both permanent installations and touring applications. The segment integrates seamlessly with other DNA T4 series components and common F34/X30 truss systems, offering flexibility for expanding your rig.

Ideal use cases

• Overhead lighting rigs for stages, concerts, and theaters
• Exhibition stands and trade show displays
• Event structures for weddings, corporate events, and parties
• DJ booths and mobile entertainment setups
• Permanent installations in clubs, bars, and houses of worship

Good to know

Each segment is crafted from premium EN AW-6082 T6 aluminum, known for its excellent strength-to-weight ratio and corrosion resistance. The conical coupler system ensures precise alignment and secure locking, while the included pins and safety clips provide redundant safety. The natural aluminum finish requires no painting and is easy to inspect for wear. The truss is compatible with standard F34 and X30 conical connectors, allowing integration with existing truss inventory from other manufacturers. Always follow local rigging regulations and have structures inspected by a qualified professional before use.
