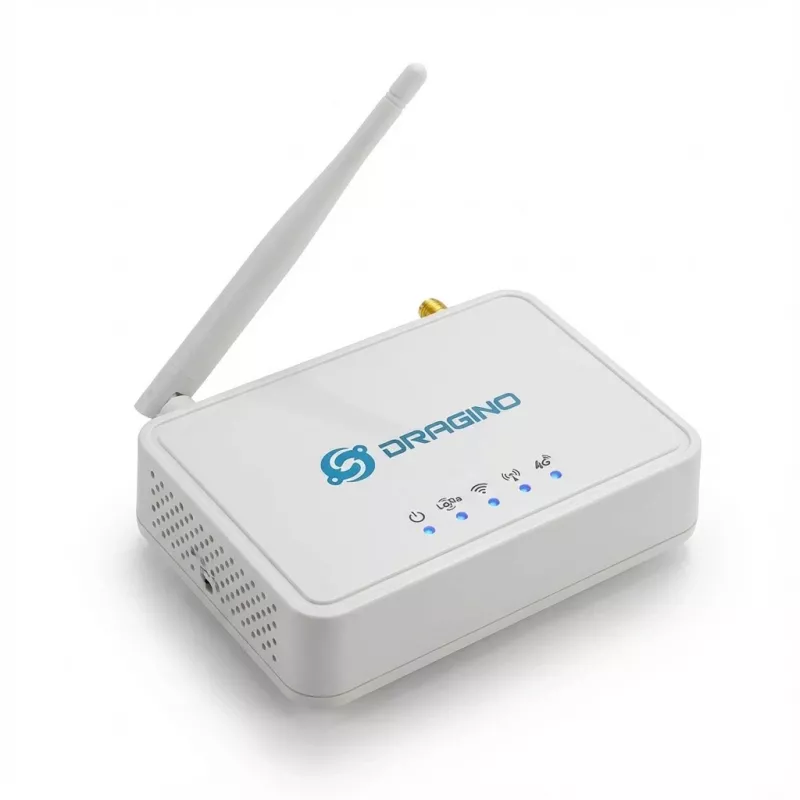

DRAGINO Indoor Gateway LG308N-868-E s 4G/LTE

When a LoRaWAN gateway delivers -139dBm sensitivity and a 4G/LTE backup link, it's built for serious IoT deployments. The Dragino LG308N-868-E packs the Semtech SX1302 concentrator, a robust MIPS processor, and triple connectivity into a compact indoor enclosure—making it a top choice for industrial sensing, smart agriculture, and remote monitoring.

Overview

The LG308N-868-E is an EU868 LoRaWAN gateway with eight uplink channels and one downlink channel. It connects to the internet via 100Mbps Ethernet, 2.4GHz Wi-Fi, or the built-in 4G/LTE module (Quectel EC25-E). Running OpenWrt Linux, it offers flexible management through a web GUI or SSH. The unit supports LoRaWAN classes A, B, and C, and is ready for both small-scale pilots and full production networks.

What stands out

• High-performance SX1302 digital baseband chip for reliable LoRa demodulation
• Integrated 4G/LTE ensures connectivity even where wired and Wi-Fi fail
• Class A/B/C support for comprehensive end-device compatibility
• OpenWrt-based system with customisable packet forwarder and management
• Internal LoRa and Wi-Fi antennas, plus an SMA port for an external 4G antenna

Technical details

• Processor: MIPS 24Kc (AR9331) at 400MHz
• Memory: 64MB DDR2 RAM, 16MB flash
• LoRa channels: 8 uplink / 1 downlink
• Frequency band: EU868 (863-870 MHz)
• Max transmit power: 20dBm, sensitivity down to -139dBm
• Interfaces: 1x RJ45, 1x USB 2.0, 1x SIM slot, 1x DC jack, 1x SMA for 4G
• Power: 12V DC, 1A
• Operating temperature: -20°C to +70°C
• Enclosure: ABS plastic

Our verdict

The LG308N-868-E is a well-rounded LoRaWAN gateway that excels in reliability and versatility. The 4G/LTE fallback, combined with the proven SX1302 chipset and OpenWrt flexibility, makes it an excellent backbone for professional IoT networks.
