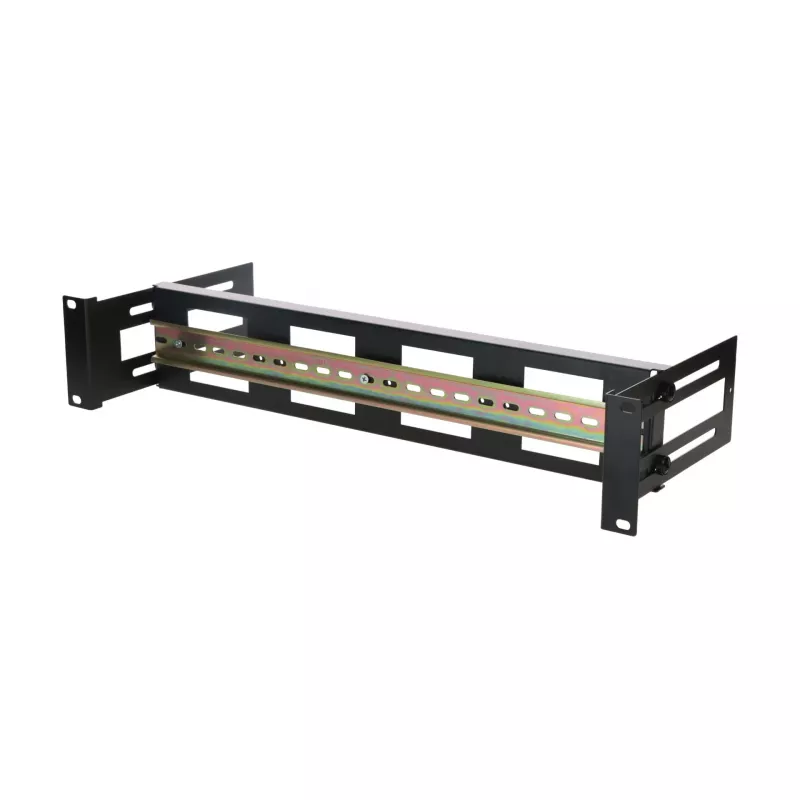

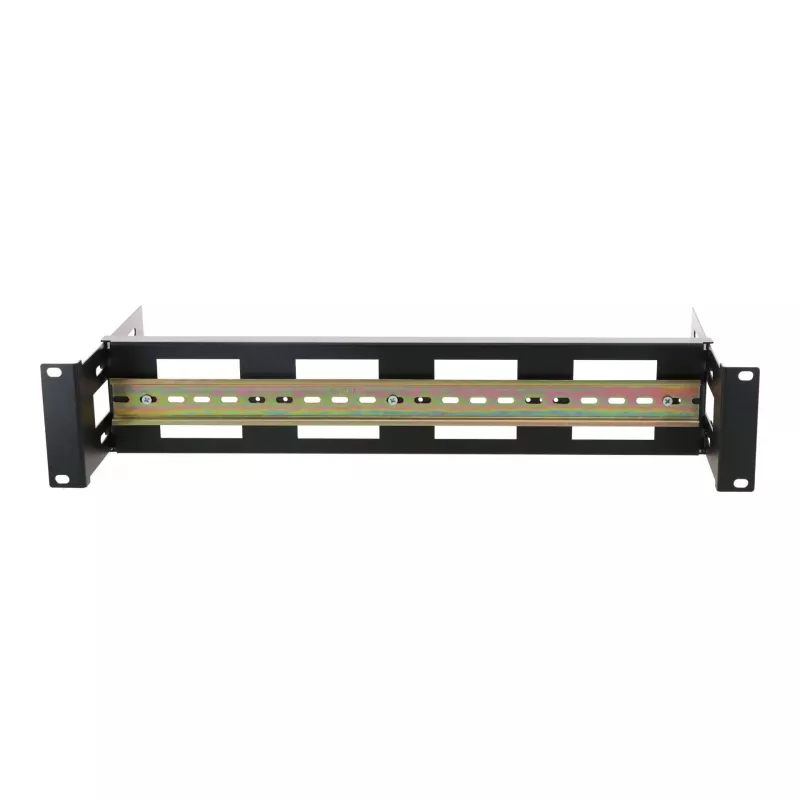

DSIT 2U DIN lištový držiak pre 19-palcové racky, hĺbka nastaviteľná 100-200 mm, TS35, čierny

Integrating DIN rail components into a 19-inch rack often requires custom fabrication or unstable workarounds. The DSIT DS-DIN-2 eliminates this challenge by providing a robust, depth-adjustable mounting platform that securely holds a standard TS35 DIN rail inside any EIA-310 compliant 19-inch cabinet. This 2U rack shelf is crafted from SPCC cold rolled steel with a black powder-coated finish, ensuring durability and a professional appearance. Its sliding mechanism allows the DIN rail to be positioned between 100 and 200 mm from the front mounting posts, accommodating various enclosure depths and component sizes. With a 400 mm long DIN rail and a maximum load capacity of 15 kg, it is ideal for mounting terminal blocks, relays, controllers, and other DIN-mountable devices. The included M6 cage nuts and screws facilitate quick installation, making it a practical choice for system integrators and maintenance teams.

Who is it for

This DIN rail mount is designed for professionals in industrial automation, network infrastructure, and power distribution who need to integrate DIN rail components into standard 19-inch racks. It is suitable for control panel builders, IT technicians, and facility managers seeking a reliable and adjustable mounting solution.

Main features

• 2U height fits standard 19-inch racks
• Depth adjustable from 100 to 200 mm via sliding mechanism
• Supports one TS35 (35 mm x 7.5 mm) DIN rail, 400 mm long
• Constructed from SPCC cold rolled steel with black powder-coated finish
• Maximum load capacity of 15 kg
• Includes M6 cage nuts and screws for easy installation

Specifications

• Rack Unit Height: 2U
• Rack Compatibility: 19-inch EIA-310 compliant racks
• Mounting Type: Front rackmount
• DIN Rail Standard: TS35 (35 mm x 7.5 mm)
• Depth Adjustment: Yes, sliding mechanism
• Adjustable Depth Range: 100 - 200 mm from front mounting posts
• Material: SPCC cold rolled steel
• Finish: Black powder coated
• DIN Rail Length: 400 mm
• Number of DIN Rails: 1
• Maximum Load Capacity: 15 kg
• Included Hardware: M6 cage nuts and screws
• Application: Industrial automation, network infrastructure, power distribution
• Compliance: RoHS
• Mounting Orientation: Horizontal

Tips

To maximize stability, ensure the DIN rail is positioned at the desired depth before tightening the sliding mechanism. Use the included M6 cage nuts and screws for a secure fit in standard square-hole rack rails. For heavier loads, distribute weight evenly across the rail and verify the rack is properly anchored.
