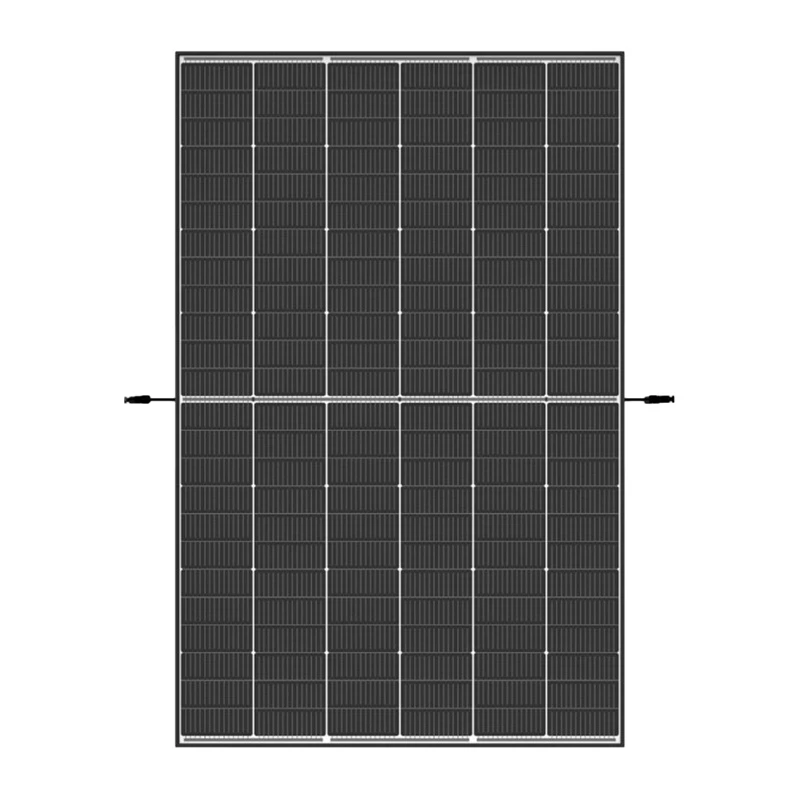

ECOFLOW Trina Solar 450W SLTSM-450NEG9R.28 monokryštalický solárny panel

The ECOFLOW Trina Solar 450W SLTSM-450NEG9R.28 Panel is a high-efficiency monocrystalline solar module designed for residential and commercial installations. With a peak power of 450W and an efficiency of 22.5%, this panel delivers reliable performance and long-term energy yield.

Advantages

This solar panel features N-type monocrystalline cells with 120 half-cut cells, reducing resistive losses and improving low-light performance. The 30 mm anodized aluminium frame and 3.2 mm heat-strengthened glass with anti-reflective coating ensure durability and high light transmission. The IP68 rated junction box with 3 bypass diodes enhances reliability and safety.

Suitable for

• Residential rooftop systems
• Commercial and industrial solar installations
• Grid-tied and off-grid applications
• Solar farms and ground-mounted arrays

Key specifications

• Maximum Power (Pmax): 450 W
• Module Efficiency: 22.5%
• Cell Type: N-type Monocrystalline
• Number of Cells: 120 (2x60)
• Open Circuit Voltage (Voc): 41.2 V
• Maximum Power Voltage (Vmp): 34.4 V
• Short Circuit Current (Isc): 13.7 A
• Maximum Power Current (Imp): 13.1 A
• Power Tolerance: 0 ~ +5 W
• Maximum System Voltage: 1500 V DC (IEC)
• Maximum Series Fuse Rating: 25 A
• Junction Box: IP68 rated, 3 bypass diodes
• Connector Type: MC4 EVO2 / TS4 (or compatible)
• Frame Material: 30 mm Anodized Aluminium Alloy
• Glass Type: 3.2 mm heat strengthened glass with anti-reflective coating
• Operating Temperature Range: -40°C to +85°C
• Pmax Temperature Coefficient: -0.30 %/°C
• Product Warranty: 25 years
• Performance Warranty: 30 years linear power output (87.4% at 30 years)

Recommendations

For optimal performance, ensure proper installation by a certified professional. This panel is compatible with standard mounting systems and inverters. Always follow local electrical codes and safety guidelines.
