EFB Elektronik Addressing Plug EKS/G čierny, 2,54 mm rozteč, uzavretý, 100 kusov

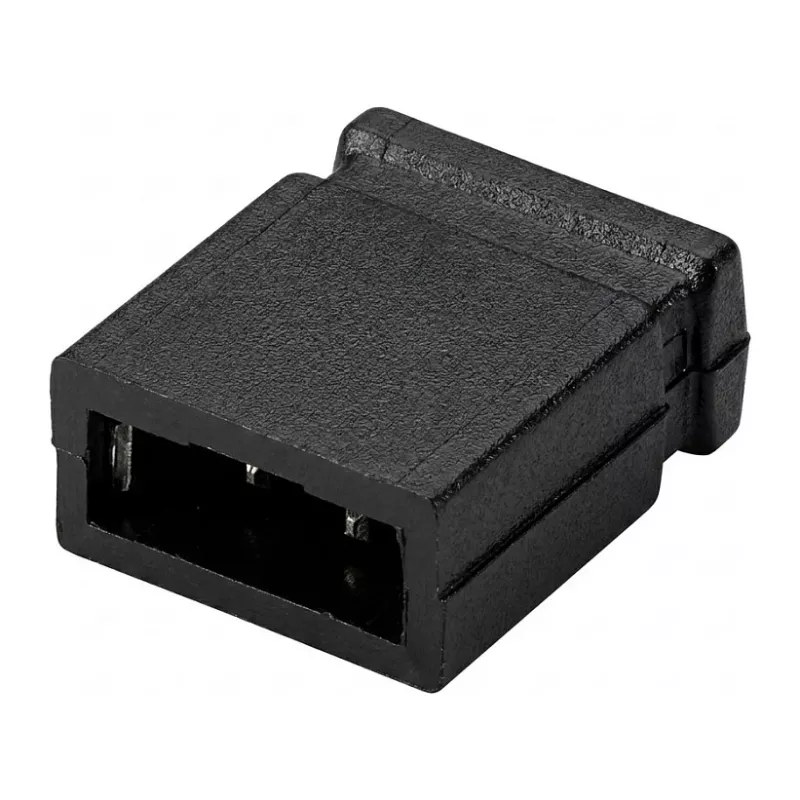

The EFB Elektronik Addressing Plug EKS/G is a high-quality closed jumper cap designed for reliable PCB configuration and address setting. With a standard 2.54 mm pitch and a robust black PBT GF insulator, this plug ensures secure connections in electronic assemblies. Each pack contains 100 pieces, making it ideal for bulk use in manufacturing and prototyping.

Advantages

• Reliable closed design prevents accidental short circuits.
• High-temperature resistant PBT GF material with UL94 V-0 flammability rating.
• Tin-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
• Wide operating temperature range from -40°C to +105°C.
• RoHS compliant for environmentally friendly use.

Suitable for

• PCB configuration and jumper settings
• Address setting in electronic modules
• Industrial automation and control systems
• Prototyping and production runs

Key specifications

• Product Type: Addressing Plug / Jumper Cap
• Design: Closed
• Pitch: 2.54 mm
• Color: Black
• Quantity per Pack: 100 pieces
• Number of Positions: 2
• Insulator Material: PBT GF
• Flammability Rating: UL94 V-0
• Contact Material: Copper Alloy
• Contact Plating: Tin
• Current Rating: 1 A
• Voltage Rating: 50 V
• Operating Temperature: -40°C to +105°C
• Single Plug Dimensions: 6.0 mm (L) x 2.54 mm (W) x 6.0 mm (H)
• RoHS Compliance: Yes

Recommendations

For optimal performance, ensure proper alignment with 2.54 mm pitch headers. Store in a dry, static-free environment.
