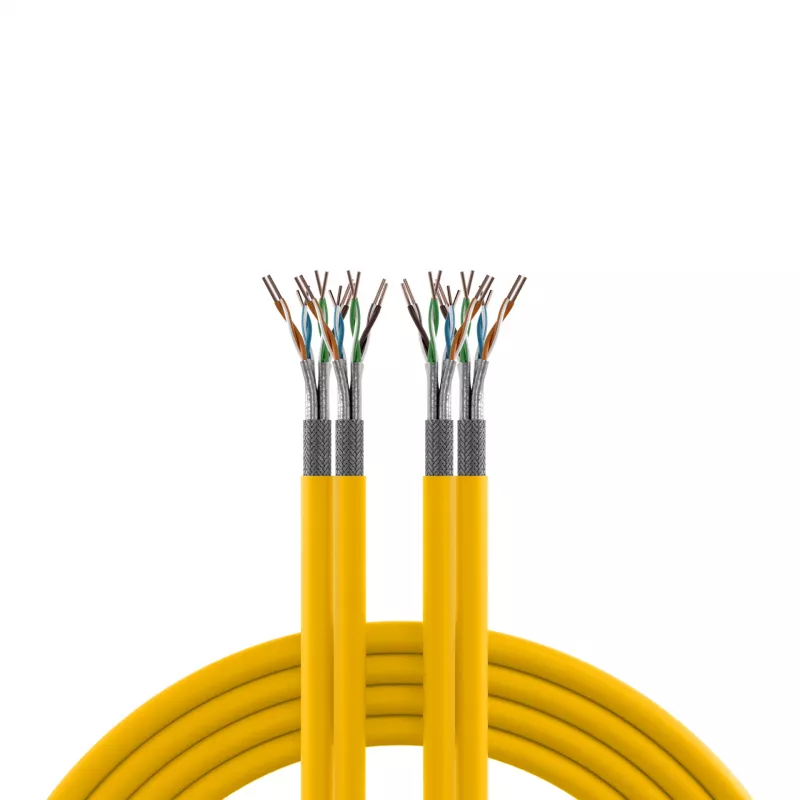

EFB Elektronik INFRALAN Cat.7A 1200 AWG23 S/FTP 2x4P CPR Cca žltý RAL1021 500 m

The EFB Elektronik INFRALAN Cat.7A 1200 AWG23 S/FTP 2x4P CPR Cca cable is a high-performance data cable designed for structured cabling in demanding network environments. With a frequency range of 1200 MHz and Category 7A certification, it supports data rates up to 10 Gbps and beyond, ensuring reliable and fast data transmission. The cable features S/FTP shielding (screened and foiled twisted pairs) for excellent protection against electromagnetic interference, making it ideal for industrial and commercial installations. The solid bare copper conductors (AWG23) ensure low signal loss and high conductivity. The LSZH (Low Smoke Zero Halogen) jacket provides safety in case of fire, emitting minimal smoke and no halogen. The cable is CPR rated Cca-s1a, d1, a1, compliant with European fire safety standards. The bright yellow color (RAL1021) enhances visibility for easy identification. Supplied on a 500 m drum, this cable is perfect for long runs in data centers, offices, and campus networks.

Advantages

High-speed data transmission up to 10 Gbps and beyond, excellent EMI protection with S/FTP shielding, safe LSZH jacket for fire safety, CPR Cca certified for building compliance, durable solid copper conductors, and easy identification with yellow color.

Suitable for

• Structured cabling in data centers
• Enterprise network installations
• Industrial Ethernet applications
• High-frequency data transmission
• Building backbone cabling

Key specifications

• Cable Standard: Cat.7A
• Frequency Range: 1200 MHz
• Shielding Type: S/FTP
• Conductor Gauge: AWG23
• Number of Conductors: 2 x 4 Pairs (Duplex)
• Conductor Material: Solid Bare Copper
• Jacket Material: LSZH
• CPR Fire Class: Cca-s1a, d1, a1
• Jacket Color: Yellow (RAL1021)
• Cable Length: 500 m
• Outer Diameter: 7.5 mm
• Impedance: 100 Ohm
• Operating Temperature: -20°C to +60°C
• Standards Compliance: ISO/IEC 11801, EN 50173
• Packaging: Cable Drum

Recommendations

For optimal performance, use with compatible Cat.7A connectors and ensure proper grounding of the shielding. This cable is suitable for permanent links and should be installed by qualified personnel.
