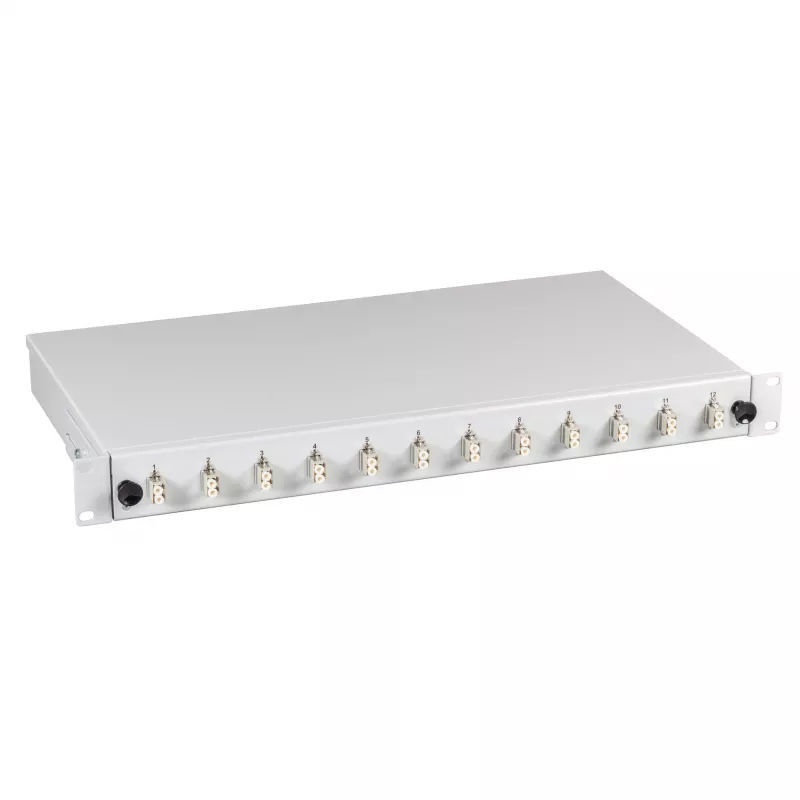

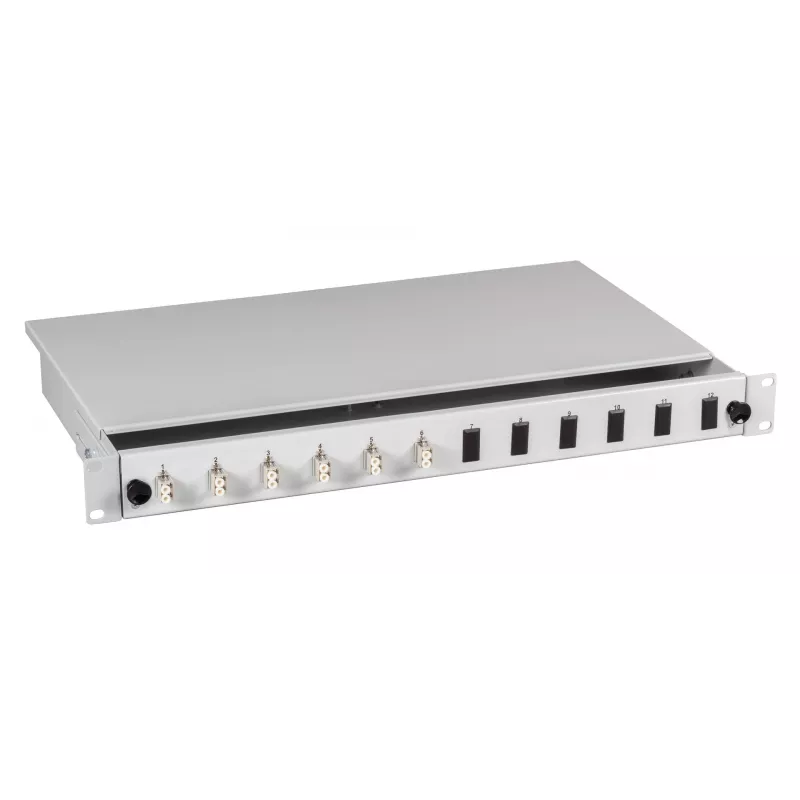

EFB Elektronik zvárací box LC 50/125 µm OM2 neposuvný 12 pigtailov / 6 spojok

The EFB Elektronik Splice Box LC 50/125µm OM2 is a high-quality fiber optic splice box designed for reliable and organized splicing of multimode fibers. This non-sliding (fixed) splice box comes pre-terminated with 12 LC pigtails and 6 LC duplex adapters, making it ideal for FTTH, distribution, and rack splice applications. With OM2 fiber class and 50/125µm core/cladding diameter, it supports wavelengths of 850nm and 1300nm, ensuring optimal performance for your network infrastructure.

Advantages

Pre-terminated pigtails reduce installation time and minimize splicing errors. The non-sliding design provides stable fiber management, while the compact form factor saves space in patch panels and distribution boxes. Durable housing protects fibers from dust and physical damage.

Suitable for

• Fiber optic distribution networks
• FTTH terminal boxes
• Rack-mounted splice enclosures
• Data center cabling

Key specifications

• Product Type: Fiber Optic Splice Box
• Fiber Type: Multimode (OM2)
• Core/Cladding: 50/125 µm
• Connector Type (Pigtails): LC
• Connector Type (Adapters): LC Duplex
• Number of Pigtails: 12
• Number of Adapters: 6
• Adapter Configuration: Duplex
• Fiber Capacity: 12 Fibers
• Design: Non-sliding / Fixed
• Termination: Pre-terminated
• Wavelengths: 850 nm / 1300 nm

Recommendations

For best performance, use with OM2-rated patch cables and ensure proper cleaning of connectors before installation. This splice box is compatible with standard 19" racks and wall-mount enclosures.
