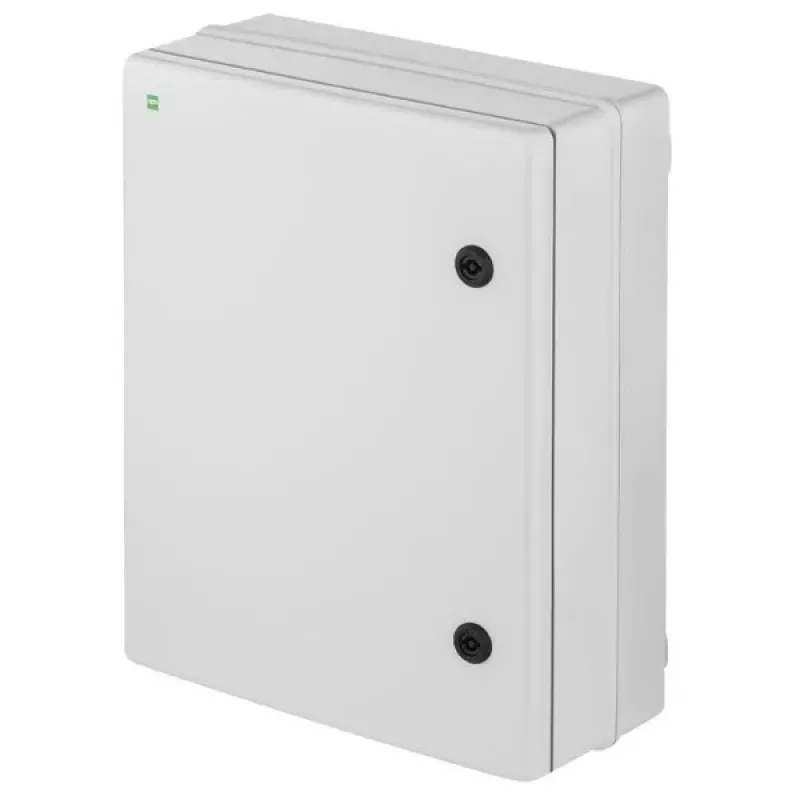

ELEKTRO-PLAST rozvádzač 2755-00 24-modulov na omietku IP40 biela

The ELEKTRO-PLAST Distribution Board 2755-00 is a high-quality surface-mounted enclosure designed for electrical distribution systems. With a capacity of 24 modules arranged in 2 rows, it provides ample space for organizing circuit breakers and other DIN-rail components. The board features a transparent smoked polycarbonate door, allowing easy visual inspection while maintaining a sleek appearance. It is constructed from durable ABS plastic in white (RAL 9003) and offers an IP40 protection rating, making it suitable for indoor installations where protection against solid objects larger than 1mm is required.

Advantages

This distribution board combines robust construction with practical features. The 180° door opening angle facilitates easy access during installation and maintenance. The included N/PE terminal blocks (2x16mm² + 1x25mm²) simplify wiring, and the glow wire test at 650°C ensures fire safety. With an IK07 impact resistance, the enclosure withstands mechanical stress, while UV-resistant door material ensures long-term durability.

Suitable for

• Residential and commercial electrical distribution systems
• Surface-mounted installations in dry indoor environments
• Applications requiring up to 63A rated current and 400V AC voltage

Key specifications

• Installation Type: Surface-mounted
• Number of Modules: 24 (2x12)
• Number of Rows: 2
• IP Protection Rating: IP40
• Material: ABS Plastic
• Door Type: Transparent, Smoked Polycarbonate
• Color: White (RAL 9003)
• Rated Insulation Voltage (Ui): 500 V
• Rated Operational Voltage (Ue): 400 V AC
• Max Rated Current (In): 63 A
• Glow Wire Test: 650 °C
• Standards Compliance: PN-EN 62208, PN-EN 61439-3
• N/PE Terminal Blocks: Included (2x16mm² + 1x25mm² for N and PE)
• Impact Resistance: IK07
• Operating Temperature Range: -25°C to +60°C
• Door Opening Angle: 180°
• UV Resistance: Yes (for door material)
• Mounting Accessories: Included (screws, plugs)

Recommendations

For optimal performance, ensure that the distribution board is installed by a qualified electrician and that all connections comply with local regulations. The board is designed for indoor use only; avoid exposure to moisture or extreme temperatures beyond the specified range.
