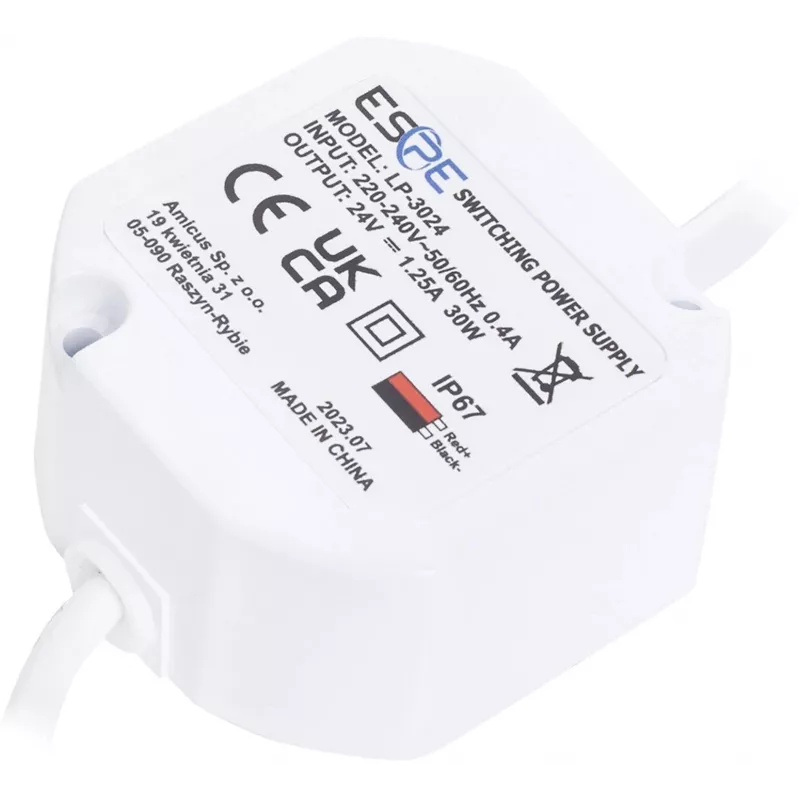

ESPE LP-3024 Hermetický spínaný napájací zdroj 24V 30W 1,25A

The ESPE LP-3024 is a high-quality hermetic switching power supply designed for reliable performance in demanding environments. With an output of 24V DC and 30W power, it delivers stable and efficient power conversion for a wide range of industrial and commercial applications. Its sealed enclosure ensures protection against dust and moisture, making it suitable for indoor and outdoor use.

Advantages

Hermetic design provides excellent protection against environmental factors, ensuring long-term reliability. High efficiency (>80%) reduces energy waste and heat generation. Compact flush-mount design saves space and allows for easy installation. Built-in protection features safeguard connected equipment against overloads, short circuits, and overvoltage.

Suitable for

• Industrial control systems
• Security and access control systems
• LED lighting installations
• Automation equipment
• Telecommunication devices

Key specifications

• Brand: ESPE
• Model: LP-3024
• Output Voltage: 24V DC
• Output Power: 30W
• Output Current: 1.25A
• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• Enclosure Rating: Hermetic / Sealed
• Mounting Type: In-Box / Flush-mounted
• Efficiency: >80%
• Protection: Overload, Short Circuit, Over Voltage
• Operating Temperature: -20°C to +50°C
• Cooling: Natural Convection (Passive)
• Number of Outputs: 1
• Ripple & Noise: <150mVp-p
• Housing Material: Flame-retardant Plastic
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure proper ventilation and avoid exposure to extreme temperatures beyond the specified range. This power supply is ideal for applications requiring a reliable and protected power source.
