HDMI kábel KD00AS1200 1,5 m, HDMI 1.4, nylonový oplet

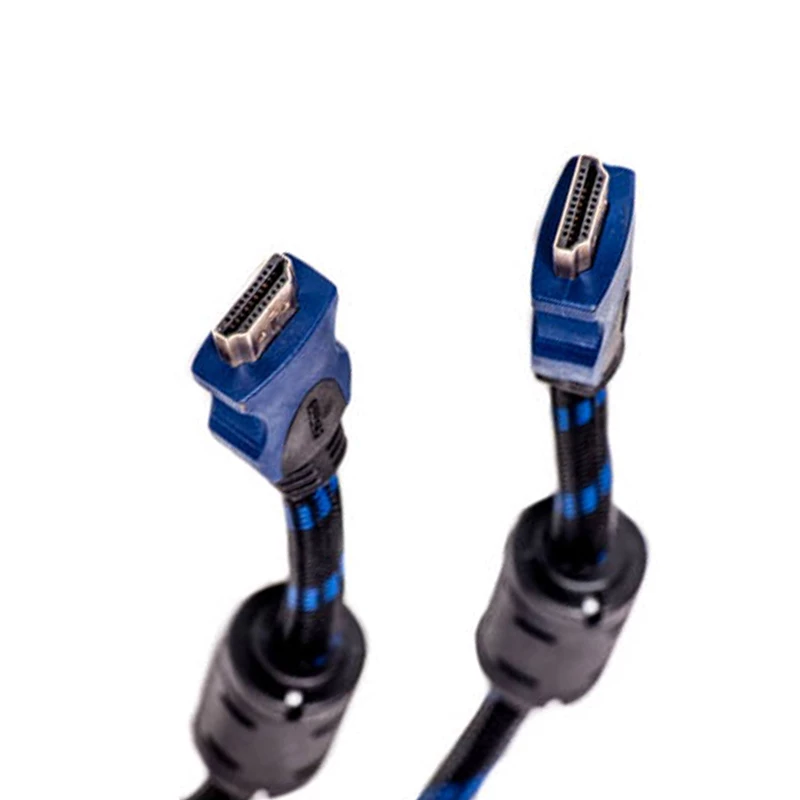

HDMI cable KD00AS1200 is a 1.5 m HDMI 1.4 lead with gold-plated Type A connectors and a nylon-braided outer sheath. Designed for transmitting uncompressed high-definition digital video and multichannel audio, the cable supports 3D formats, HDMI Ethernet Channel and Audio Return Channel, and is suitable for connecting devices such as TVs, monitors, projectors, game consoles and media players.

Advantages

The cable conforms to the HDMI 1.4 specification, supporting resolutions up to 4096x2160 and a bandwidth of 10.2 Gbps. It includes double ferrite cores to reduce interference, 24‑carat gold-plated 19‑pin contacts for reliable signal transfer, and 99.99% oxygen-free copper conductors for stable transmission. The nylon braid improves flexibility and abrasion resistance for easier handling and longer life.

Suitable for

• Connecting Blu-ray players, set-top boxes and media players to HDTVs and AV receivers
• Linking PCs, laptops or graphics cards to monitors and projectors
• Home theatre and gaming consoles (e.g., Xbox, PlayStation 3)
• Transmitting 3D video and high-resolution content up to 4096x2160

Key specifications

• Cable type: HDMI (Male) to HDMI (Male), Type A
• Length: 1.5 m
• HDMI version: 1.4
• Bandwidth: 10.2 Gbps
• Resolution support: up to 4096x2160
• Max. frame rate: up to 200 Hz
• 3D support: Yes
• Connectors: 19‑pin, 24K gold plated
• Conductor material: 99.99% oxygen-free copper
• Shielding: 2 ferrite cores
• Diameter: 28 AWG
• Outer sheath: nylon braid
• Colours: black, blue
• Warranty: 12 months

How to use

Connect one end of the HDMI cable KD00AS1200 to the HDMI output of the source device (for example, a Blu-ray player, game console or PC) and the other end to the HDMI input of the display or AV receiver. Ensure both devices are powered on and set to the correct HDMI input. For networked devices that support HDMI Ethernet Channel, enable the Ethernet/HCEC options in device menus if required. Use the Audio Return Channel (ARC) feature on compatible TVs and receivers to send audio from the TV back to the receiver without a separate audio cable.

Recommendations

For best performance, avoid tightly coiling the cable and keep it away from large sources of electromagnetic interference. When using high-resolution or high-frame-rate signals, ensure your connected devices and their HDMI ports support the same HDMI 1.4 features. Inspect connectors periodically and secure connections to prevent signal loss.
