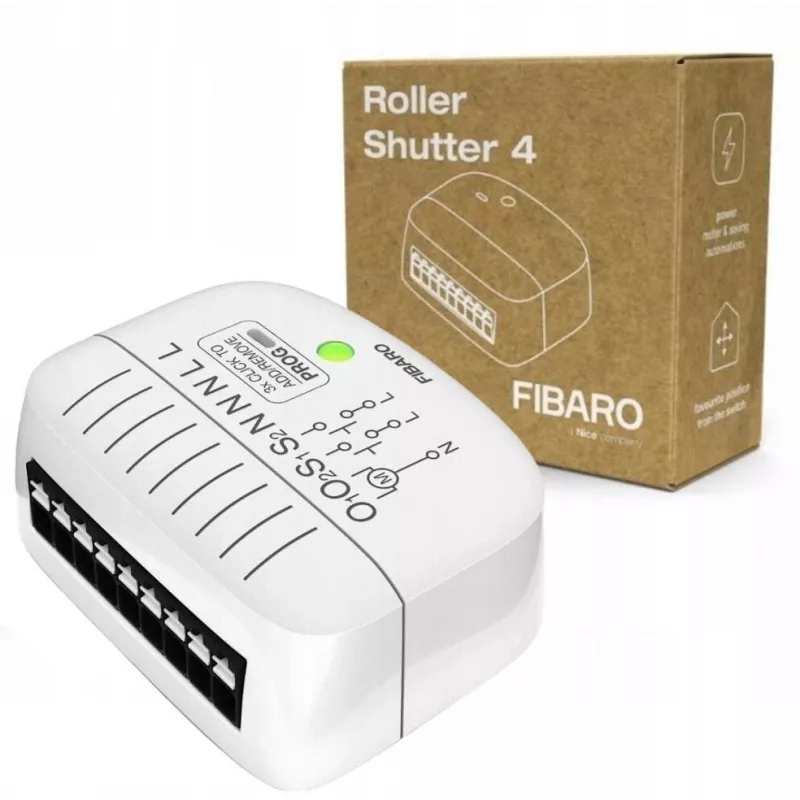

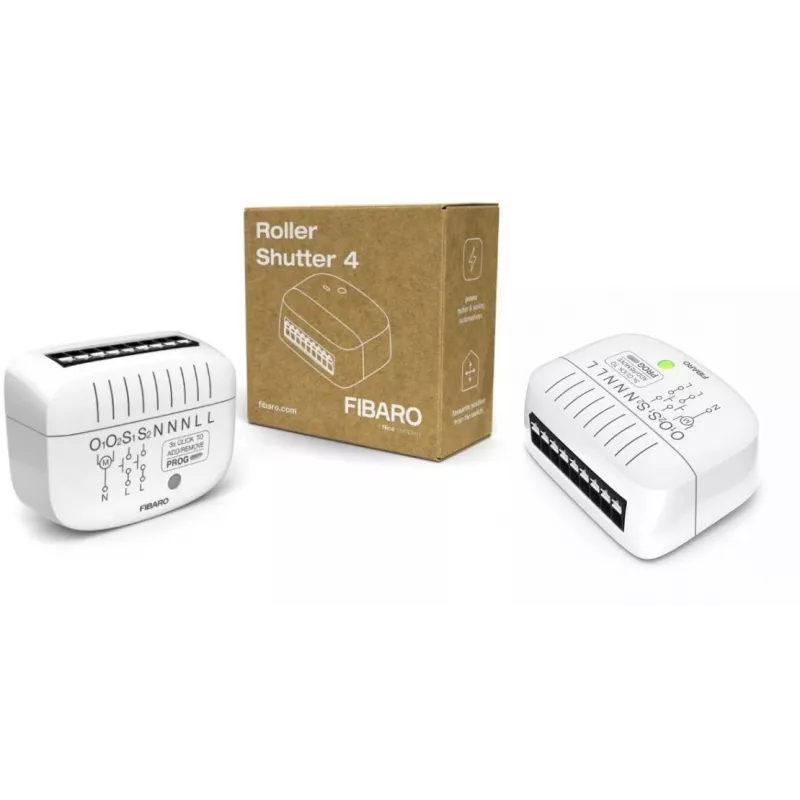

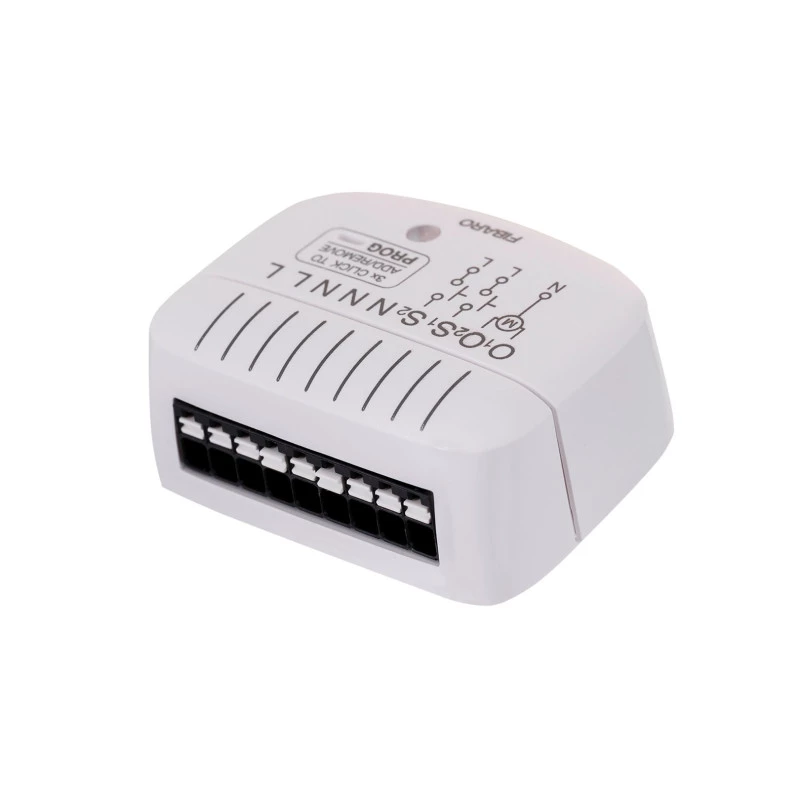

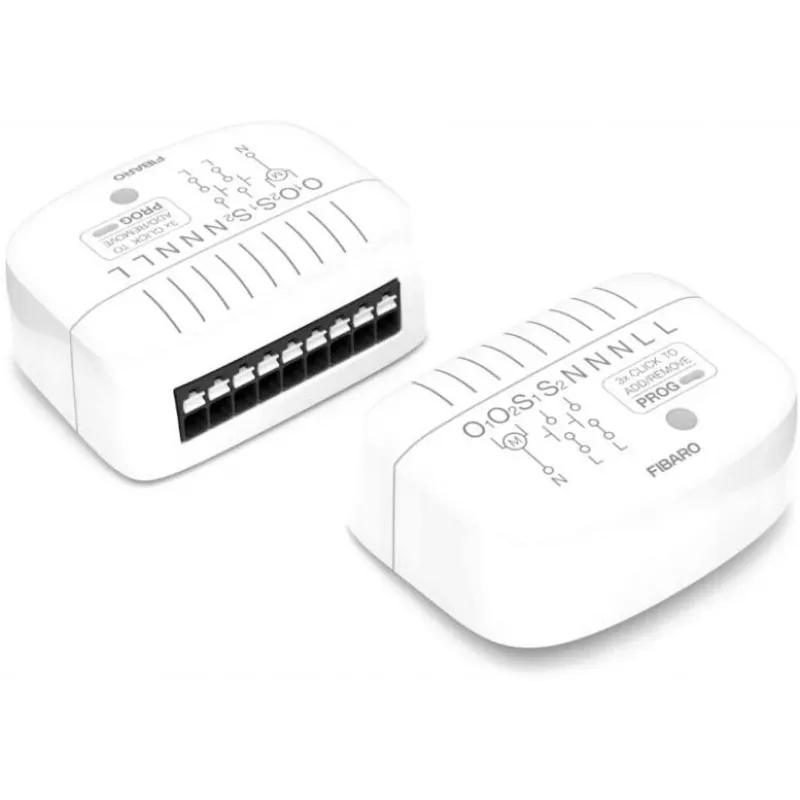

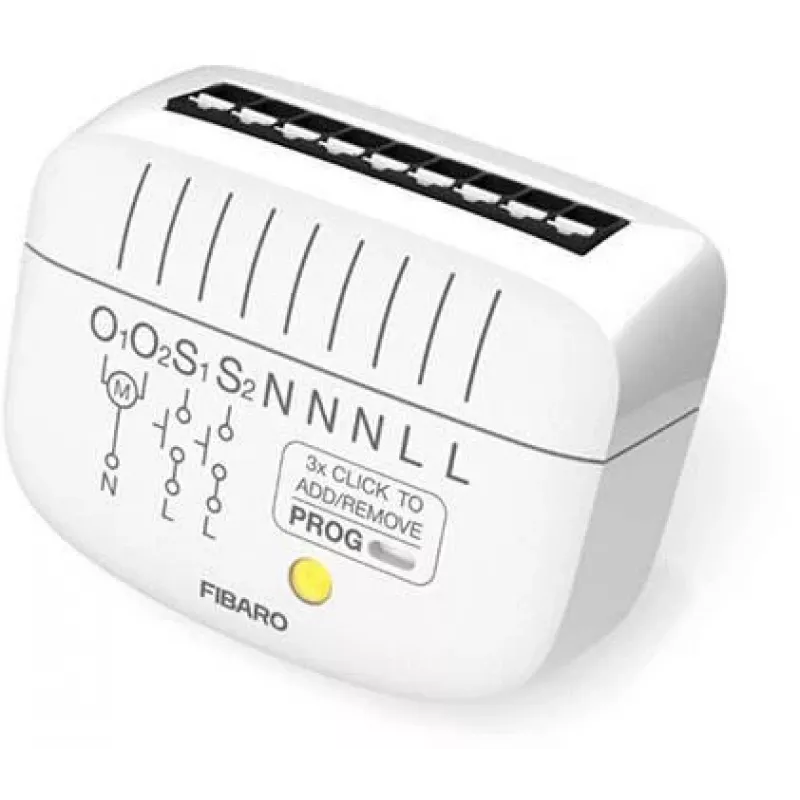

Fibaro FGR-224 Roller Shutter 4 Z-Wave Plus modul ovládania žalúzií a roliet

Automate roller blinds, awnings, and pergolas with the Fibaro FGR-224 Roller Shutter 4. This Z-Wave Plus module fits inside a standard wall box near the motor, giving you precise control over single-phase AC motors. Use the Fibaro app or a Z-Wave hub to set exact slat positions, create schedules, and monitor energy consumption.

Key specifications

• Z-Wave Plus (Gen5) wireless technology, 868.4 MHz EU frequency
• 100-240V AC, 50/60 Hz power supply
• Rated load: 4.2A resistive, 1.7A motor per channel
• Max output: 1000W resistive, 400W motor
• Bi-directional control: up/down/stop and percentage positioning
• Energy monitoring: active power and energy consumption
• Z-Wave S2 Security and repeater function
• 2 potential-free inputs for external switches
• Automatic motor calibration and OTA firmware updates
• Overload and over-temperature protection
• Operating temperature: 0°C to 35°C
• Wireless range: up to 40m indoors, 50m outdoors

Why choose it

The Roller Shutter 4 replaces the previous FGR-223 model, adding enhanced security and energy monitoring. It works with any Z-Wave controller and supports S2 encryption for safe operation. The module also acts as a repeater to strengthen your mesh network.

Ideal use cases

• Retrofit existing roller shutters or blinds without replacing motors
• Control awnings and pergolas from a smartphone or voice assistant
• Monitor energy usage of connected motors
• Integrate with scenes and schedules in a smart home system

Good to know

Installation requires a neutral wire and connection to the motor's up/down terminals. The module is designed for in-wall mounting in standard electrical boxes. For external control, connect momentary switches to the potential-free inputs.
