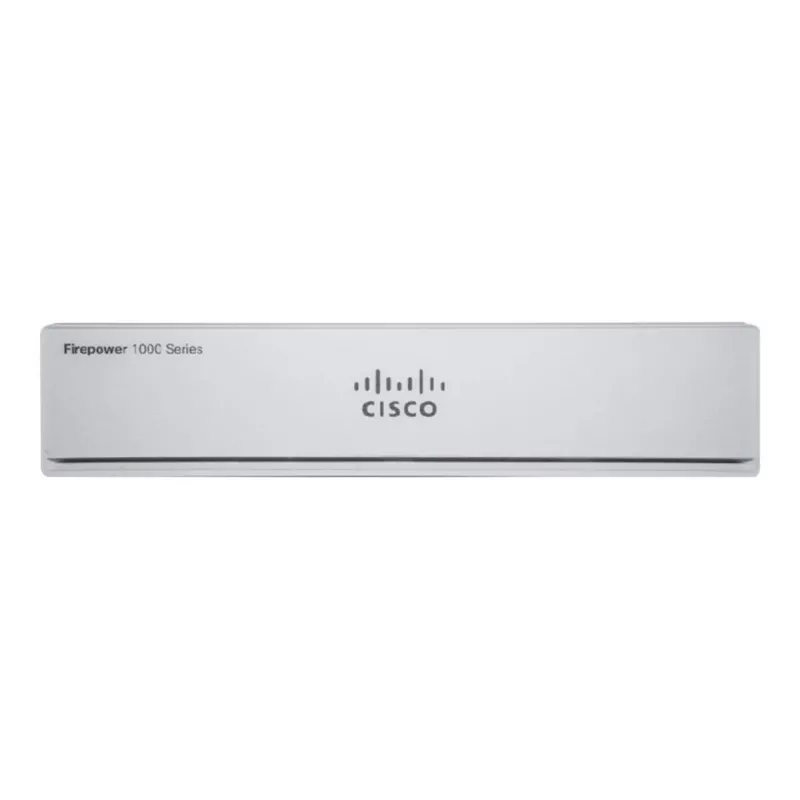

Firewall zariadenie Cisco Firepower 1010 FPR1010-NGFW-K9

The Cisco Secure Firewall with the Firepower 1010 appliance and FTD software delivers Layer 3 and 4 security controls together with Layer 7 application visibility and control. Designed for small and branch offices, the Firepower 1010 provides advanced remote access VPN termination and supports BGP and OSPF routing. The appliance is a 1U device with eight Gigabit Ethernet ports, up to 650 Mbps throughput, an Intel processor, 8 GB DDR4 memory, and 200 GB SSD storage. It includes RJ-45 console and remote management ports and is supplied with a 90-day limited warranty.

Advantages

The Firepower 1010 combines proven L3/L4 firewalling with application-aware L7 controls, offering integrated visibility and control over network traffic. Its compact 1U form factor and multiple Gigabit ports suit constrained office environments. Hardware specifications such as 8 GB RAM and 200 GB SSD enable stable operation for routing, VPN termination and security services. Built-in support for BGP and OSPF facilitates routing integration in branch networks.

Suitable for

• Small offices and branch locations requiring unified firewall and application control
• Environments needing remote access VPN termination
• Networks that require BGP or OSPF routing support
• Wired networks demanding up to 650 Mbps throughput and multiple Gigabit ports

Key specifications

• Model: Cisco Firepower 1010 (FPR1010-NGFW-K9)
• Throughput: up to 650 Mbps
• Ports: 8 × Gigabit Ethernet
• Memory: 8 GB DDR4
• Storage: 200 GB SSD
• Form factor: 1U appliance
• Processor: Intel (manufacturer specification)
• Management: RJ-45 console and remote management ports
• Warranty: 90-day limited warranty
• Weight: 1.36 kg

How to use

Install the 1U appliance in a rack or place on a stable surface and connect power and network cables to the appropriate Gigabit Ethernet ports. Use the RJ-45 console port for initial configuration or the remote management port for out-of-band access. Deploy Cisco FTD software and apply required licenses for advanced threat defence features if needed. Configure interfaces, routing (BGP/OSPF as required), and VPN termination settings via the management interface, then create access and application control policies to enforce desired security rules.

Recommendations

For reliable performance, keep device firmware and FTD software up to date, monitor throughput and resource usage, and apply recommended Cisco best practices for firewall rule ordering and VPN configuration. Purchase appropriate licenses for advanced threat defence and feature sets required by your deployment.
