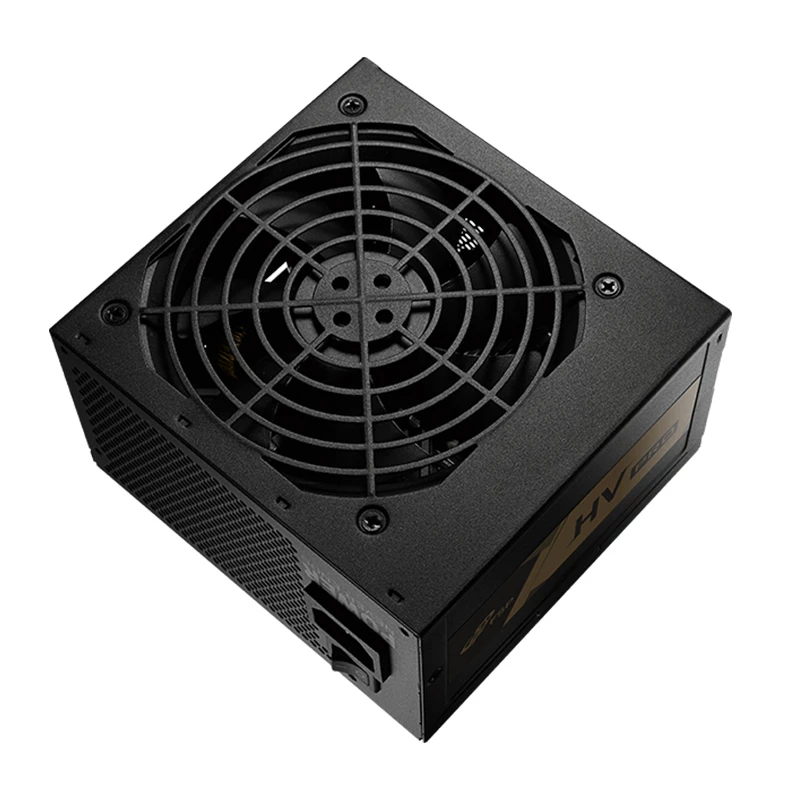

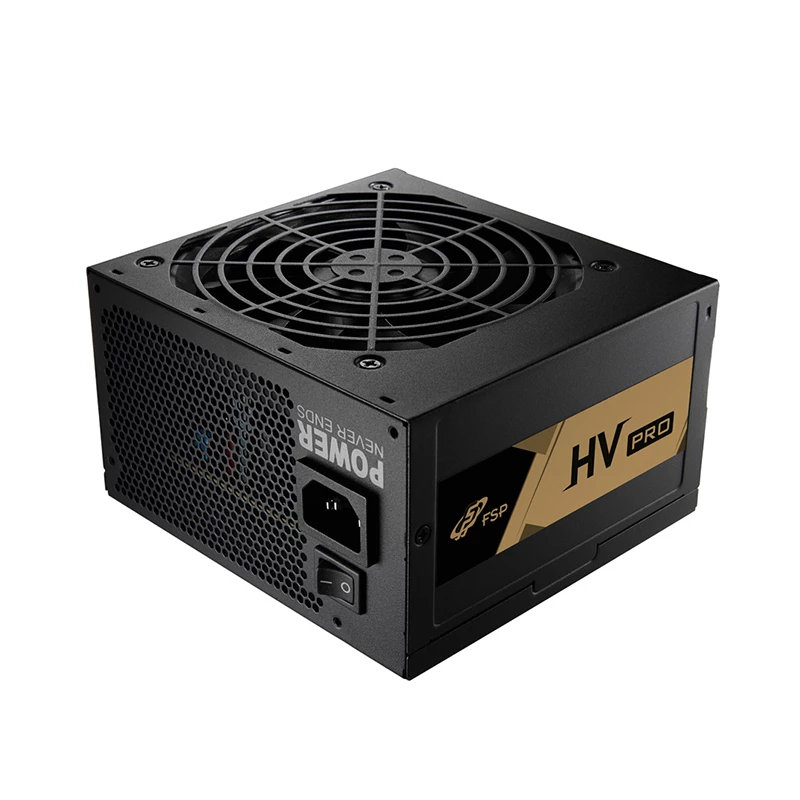

FSP HV Pro 550W Plus nemodulárny zdroj, 80 PLUS 230V

The FSP HV Pro 550W Plus Non-Modular PSU is an ATX power supply with 80 PLUS 230V certification. It features a custom DC-DC design for safety and power efficiency, delivering over 85% efficiency at typical load. A 120mm silent fan with thermal control ensures optimal cooling and low noise.

Key features

• Custom DC-DC design for safety and power efficiency
• 80 PLUS 230V certification with over 85% efficiency at typical load
• 120mm silent and long-life fan with thermal control
• Active PFC ≥ 0.9
• Dual CPU power connectors
• +12V single-rail design
• +5V & +3.3V DC to DC module design
• Complete protections: OCP, OVP, OPP, SCP

Specifications

• Brand: FSP
• MPN: PPA5505402
• Rated Output Power: 550W
• Form Factor: ATX 12V V2.4 & EPS 12V V2.92
• 80 PLUS Certification: 230V EU Standard
• Input Voltage: 200-240V
• Input Current: 4A
• Input Frequency: 50-60Hz
• PFC: Active PFC
• Efficiency: 85%
• Hold up time: > 17ms @80% Load
• Fan Type: 120mm Sleeved Fan
• Connectors: 1 x 24(20+4)pin MB, 2 x 8(4+4)pin CPU, 2 x 8(6+2) Pin PCI-E, 4 x SATA, 2 x Molex, 1 x Floppy
• Dimensions: 150 x 140 x 86 mm
• Weight: 1854g
• Protection: OCP, OVP, OPP, SCP
