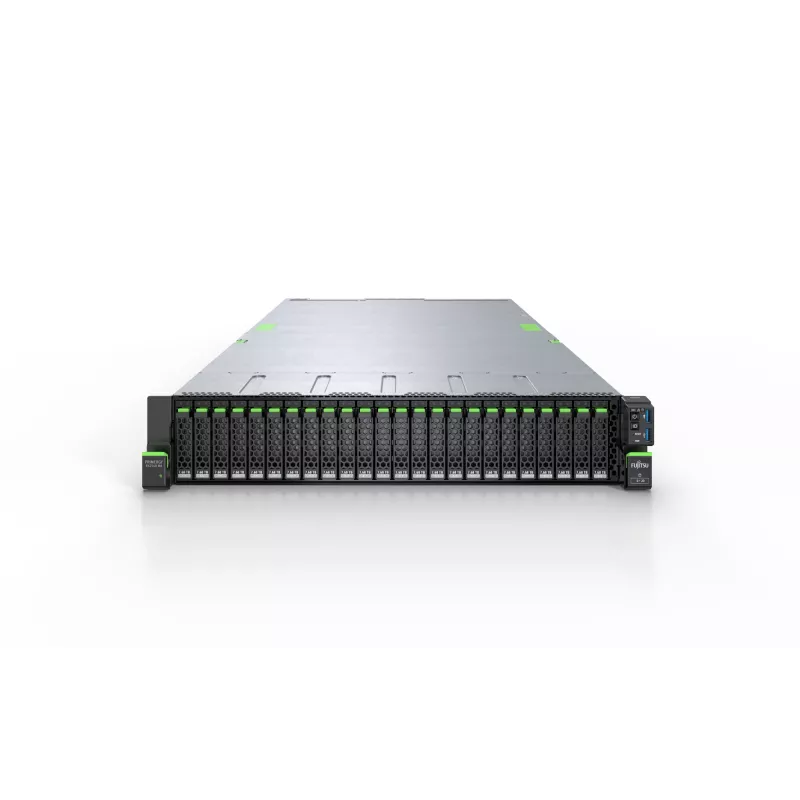

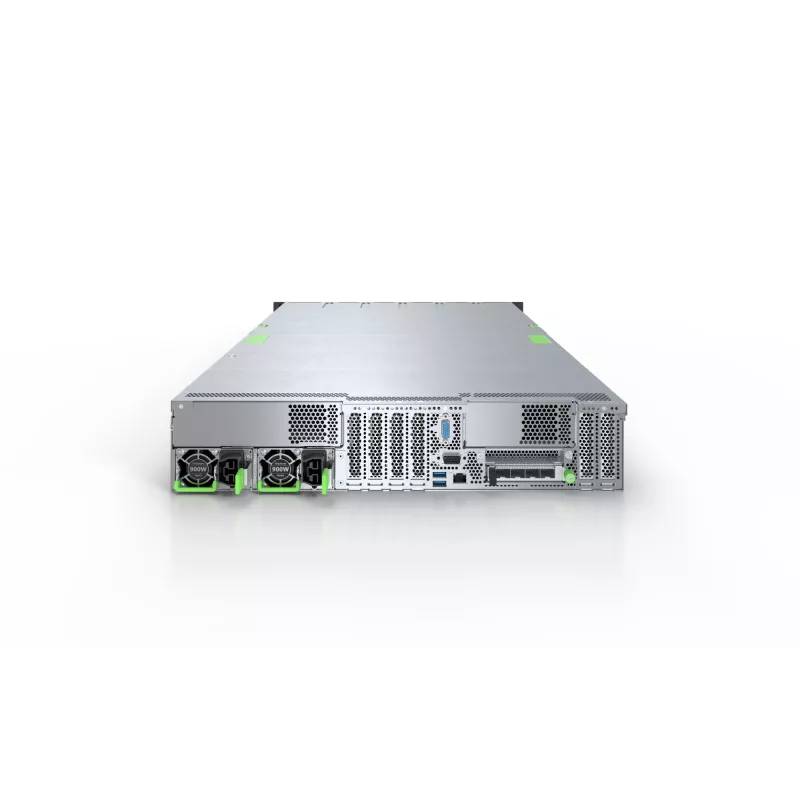

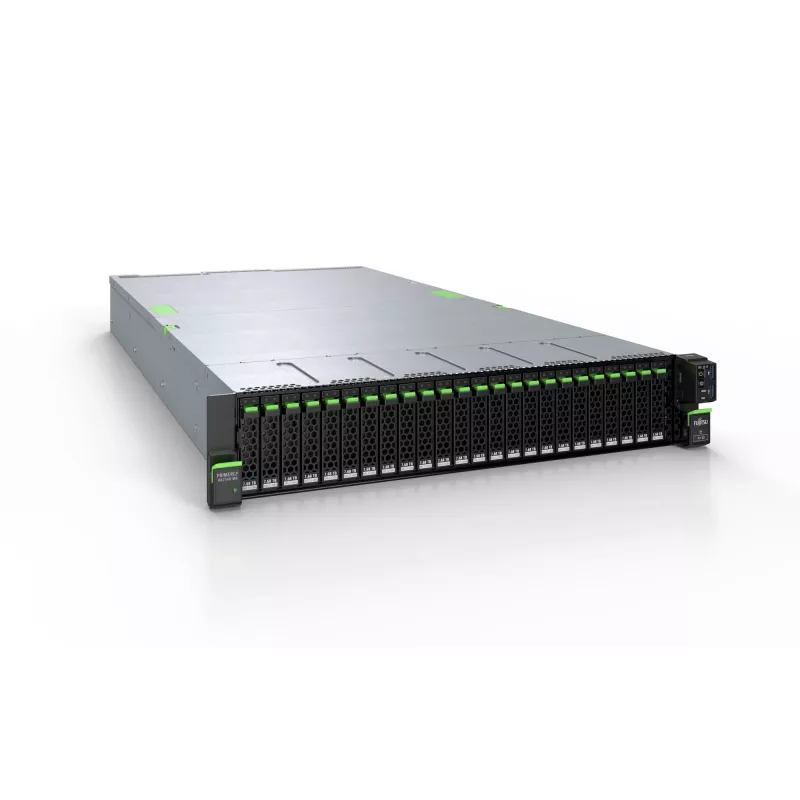

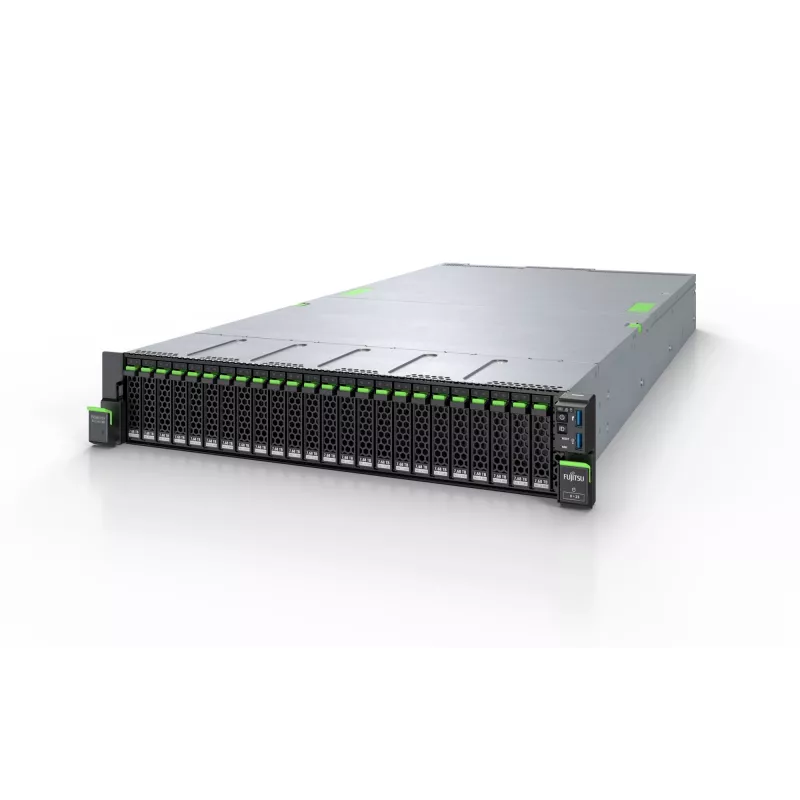

Fujitsu PRIMERGY RX2540 M6 server Rack (2U) Intel Xeon Silver 4309Y 2,8 GHz 16 GB DDR4-SDRAM 900 W

The Fujitsu PRIMERGY RX2540 M6 is a 2U, 2-socket rack server built for enterprise environments. It is powered by 3rd Generation Intel® Xeon® Scalable processors (the configured unit uses an Intel Xeon Silver 4309Y) and supports up to 32 DIMM slots for memory expansion, enabling up to 12 TB combined with Intel® Optane™ persistent memory. The server includes a 900 W power supply and flexible storage and I/O options to meet growing application demands.

Advantages

The server delivers high compute density with up to 40 cores per CPU on supported processors and offers extensive memory capacity thanks to 32 DIMM slots and Intel® Optane™ persistent memory support. Storage expandability supports multiple drive form factors (up to 24x 2.5" or alternative 3.5" and EDSFF configurations) and up to eight PCIe Gen4 slots plus DynamicLoM/OCP V3 networking options. Integrated management features such as iRMC S5 and Infrastructure Manager (ISM) provide centralized control for large-scale deployments.

Suitable for

• Virtualization and hyper-converged infrastructure
• Database and in-memory workloads
• Enterprise applications and business-critical services
• High-density storage and software-defined storage nodes

Key specifications

• Form factor: 2U rack
• Processor family: Intel Xeon Silver (configured: Intel Xeon Silver 4309Y, 2.8 GHz)
• Memory: 16 GB DDR4 installed, supports up to 12000 GB (32x DIMM, compatible with Intel® Optane™ PMem)
• Storage bays supported: up to 24x 2.5" (alternative configurations up to 12x 3.5" or 64x EDSFF)
• RAID: supported
• Expansion: up to 8x PCIe Gen4 slots; DynamicLoM via OCP V3
• Power supply: 900 W
• Weight: 32 kg

How to use

Install the RX2540 M6 in a standard 19" server rack and connect power and network according to site requirements. Populate CPUs, memory modules, and storage drives as required for your workload; the system supports a mix of DDR4 DIMMs and Intel® Optane™ persistent memory to increase effective capacity for memory-intensive applications. Configure RAID and install the operating system or hypervisor of your choice. Use the onboard management (iRMC S5) or Infrastructure Manager (ISM) for initial setup, firmware updates and monitoring.

Recommendations

For balanced performance and capacity, deploy matching memory configurations across channels and consider Intel® Optane™ persistent memory when running databases or large in-memory workloads. Use RAID or equivalent software-defined storage configurations for data protection and verify cooling and power redundancy in rack deployments.
