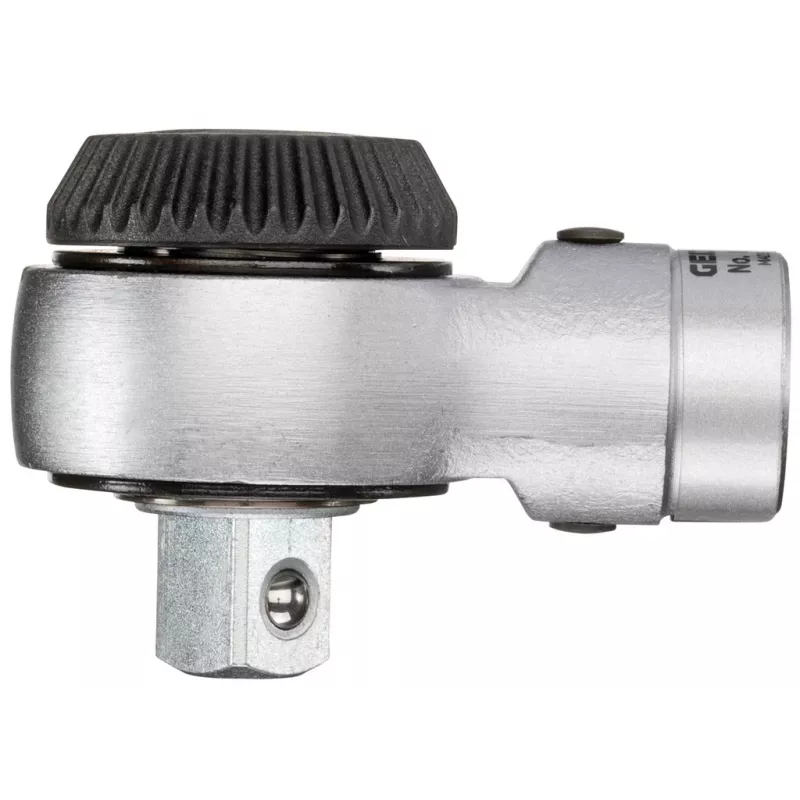

GEDORE vsuvná prepínacia ráčňa 1/2 inch pohon, 16 zubov, 9x12 mm vsuvný štvorec (7712010)

For technicians using GEDORE DREMOMETER torque wrenches, this insert reversible ratchet head provides a reliable 1/2 inch square drive with a 16-tooth mechanism. The rectangular 9 x 12 mm insert shank fits directly into the wrench head, allowing quick conversion of a torque wrench into a ratchet for fastening or loosening.

Key specifications

• Drive size: 1/2 inch
• Number of teeth: 16
• Shank type: rectangular insert shank, 9 x 12 mm
• Material: GEDORE vanadium steel 31CrV3
• Surface finish: chrome-plated, polished
• Length: 56 mm, width: 32 mm, height: 22 mm
• Weight: 0.16 kg
• Socket retention: ball locking
• Standards: DIN 3120 - C 12.5, ISO 1174

Why choose it

The reversible mechanism allows right/left operation, and the chrome-plated finish resists corrosion. The 16-tooth design provides a balance between strength and a compact swing arc.

Ideal use cases

• Torque wrench applications requiring a ratchet head
• Automotive and industrial maintenance
• Use with GEDORE DREMOMETER and compatible torque wrenches

Good to know

The head is designed for 1/2 inch square drive sockets and uses ball locking for secure socket retention.
