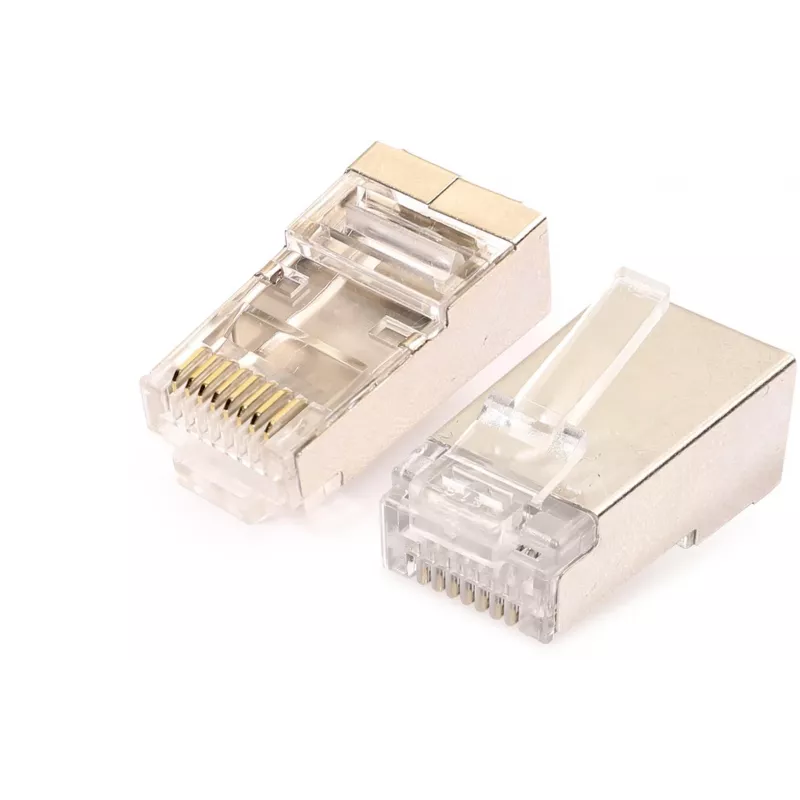

GETFORT RJ45 Cat.6A tienený konektor samec s vodičom, 8P8C, 100 kusov

The GETFORT RJ45 Cat.6A shielded connector (8P8C) is designed for high-performance network installations, supporting 10 Gigabit Ethernet and 500 MHz bandwidth. Each connector features an integrated wire guide for easy termination and is gold-plated for reliable, corrosion-resistant contacts. Pack of 100 pieces.

Advantages

Shielded design minimizes electromagnetic interference, ensuring stable data transmission. Gold-plated contacts provide long-lasting conductivity. Integrated wire guide simplifies cable preparation and termination.

Suitable for

• Local Area Networks (LAN)
• Data centers
• Telecommunications
• High-speed Ethernet applications up to 10GBASE-T

Key specifications

• Connector Type: RJ45 (8P8C)
• Category: Cat.6A
• Shielding: Shielded (STP/FTP compatible)
• Data Transfer Rate: Up to 10 Gbps
• Frequency Bandwidth: Up to 500 MHz
• Contact Plating: Gold-plated
• Wire Gauge Support: 23 AWG to 26 AWG

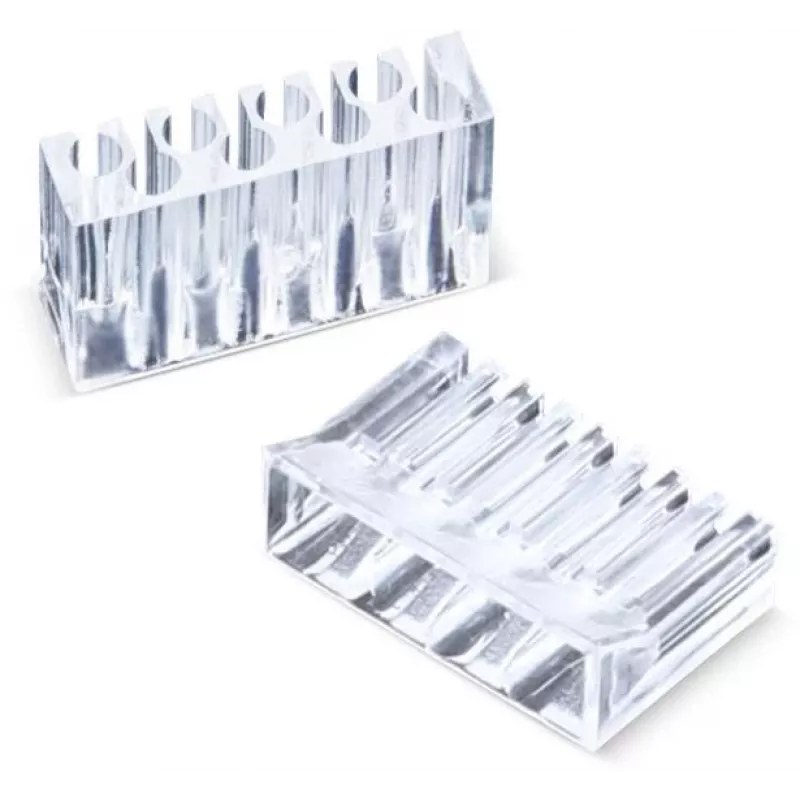

• Feature: Integrated Wire Guide / Load Bar
• Housing Material: High-impact resistant Polycarbonate (PC)
• Color: Transparent

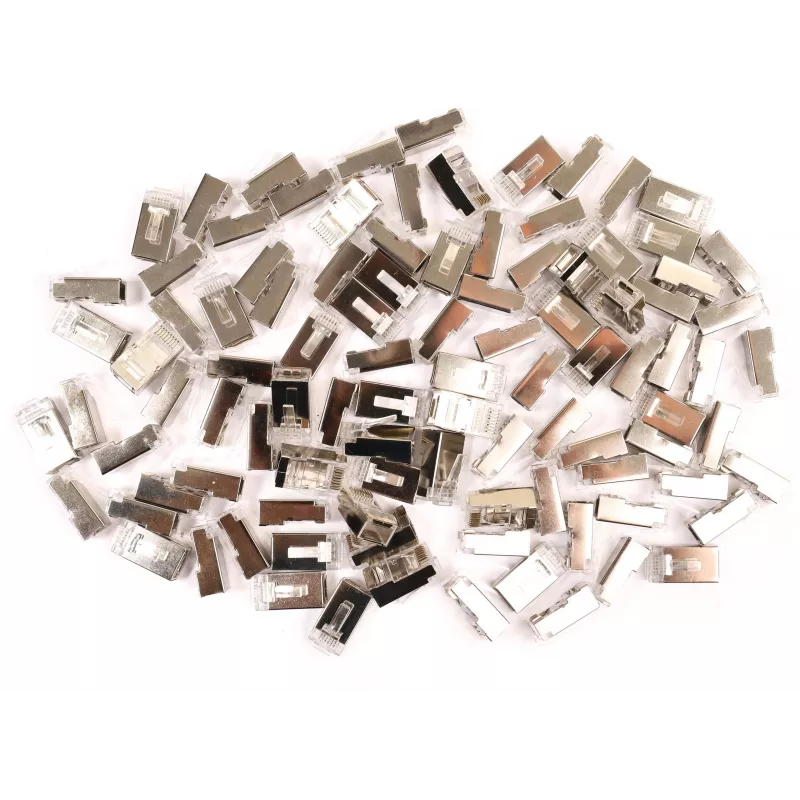

• Quantity per Pack: 100 pieces
• Standard Compliance: TIA/EIA-568-C.2, ISO/IEC 11801

Recommendations

For optimal performance, use with Cat.6A or higher cabling and ensure proper shielding continuity. Suitable for both solid and stranded conductors.
