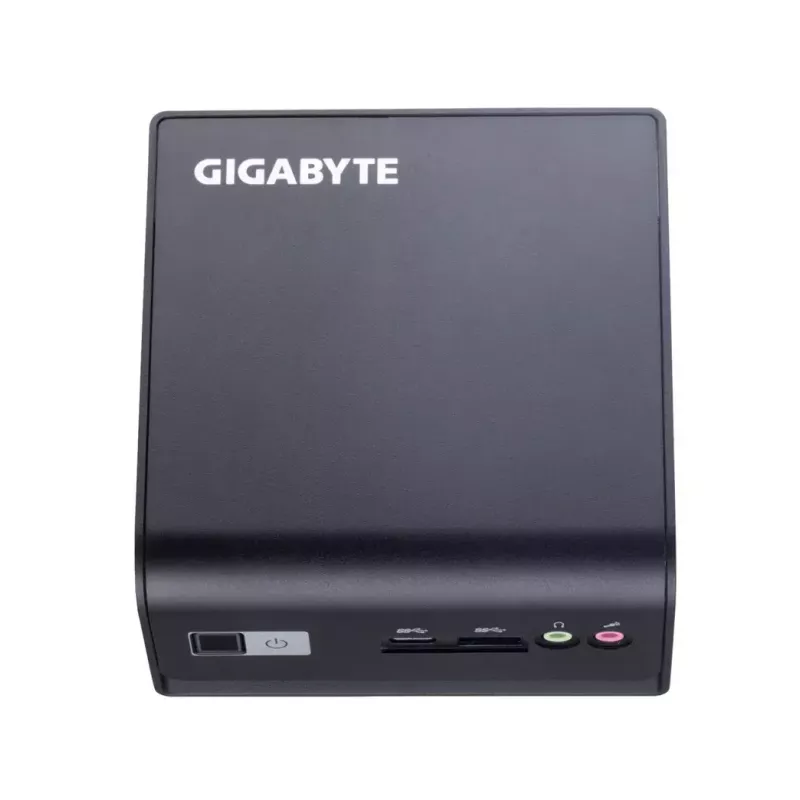

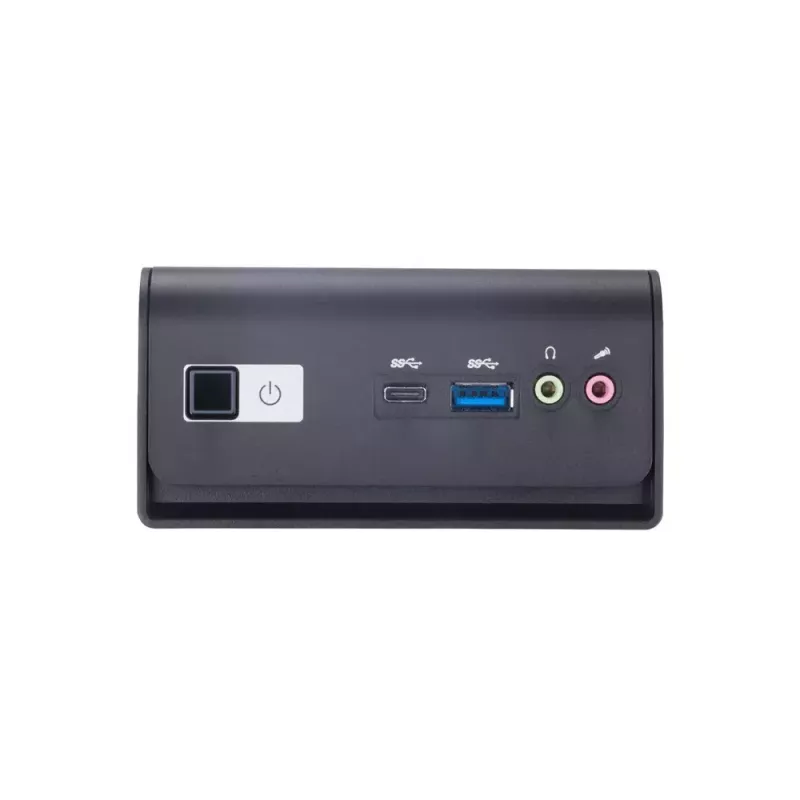

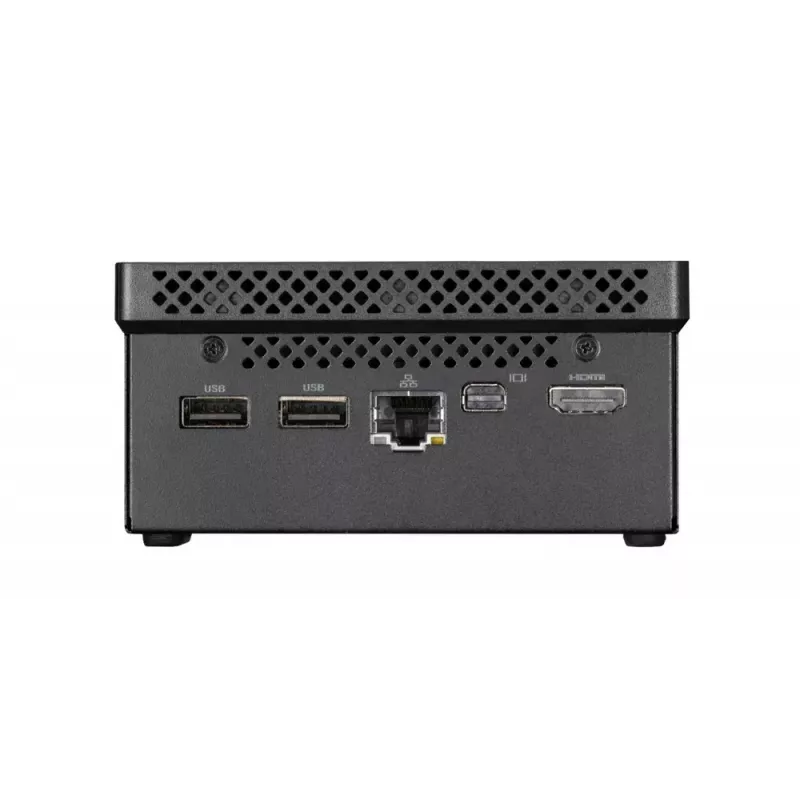

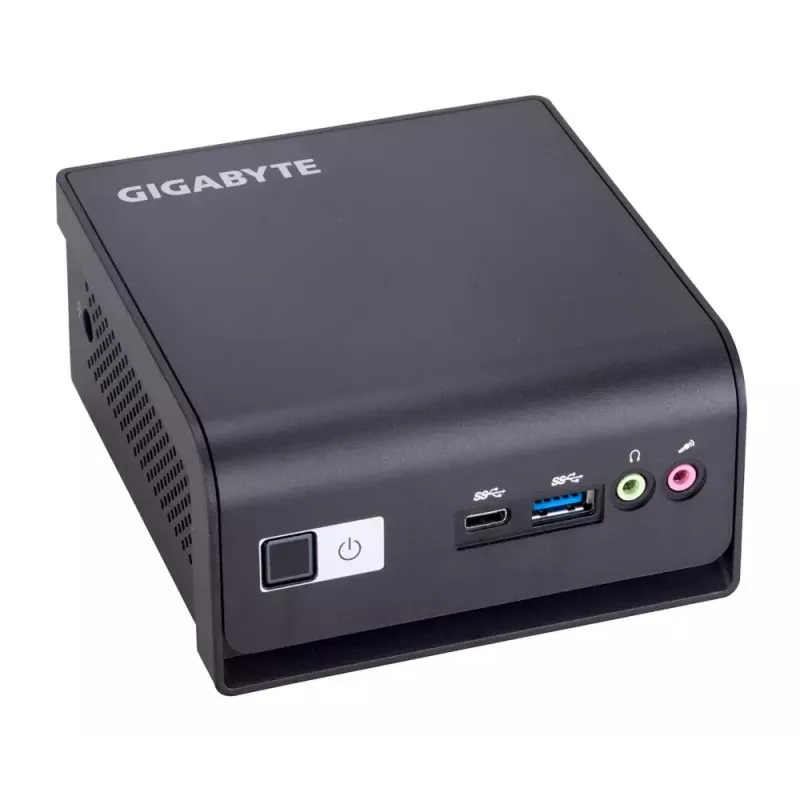

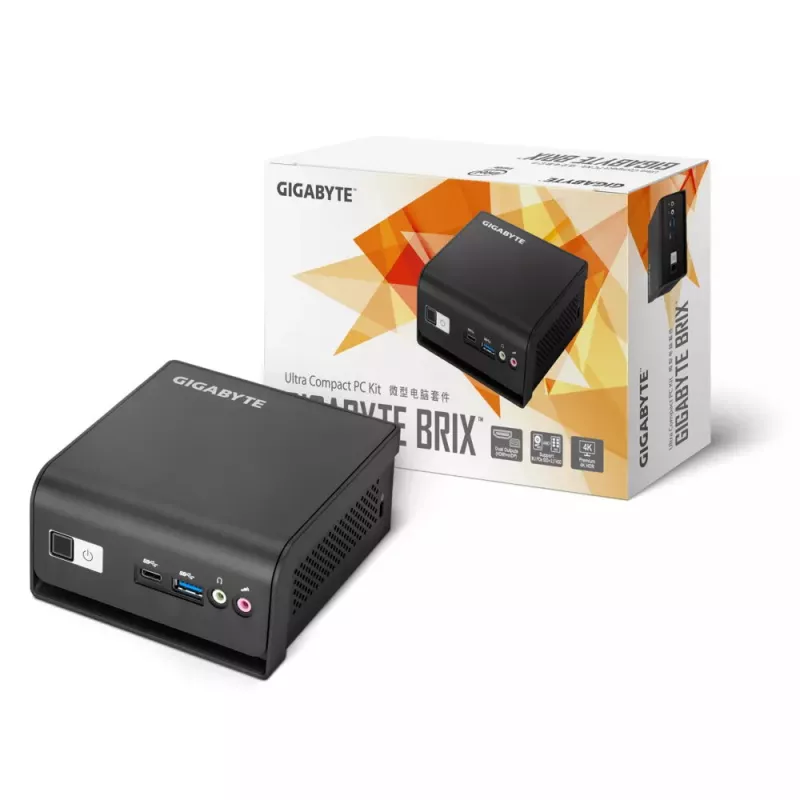

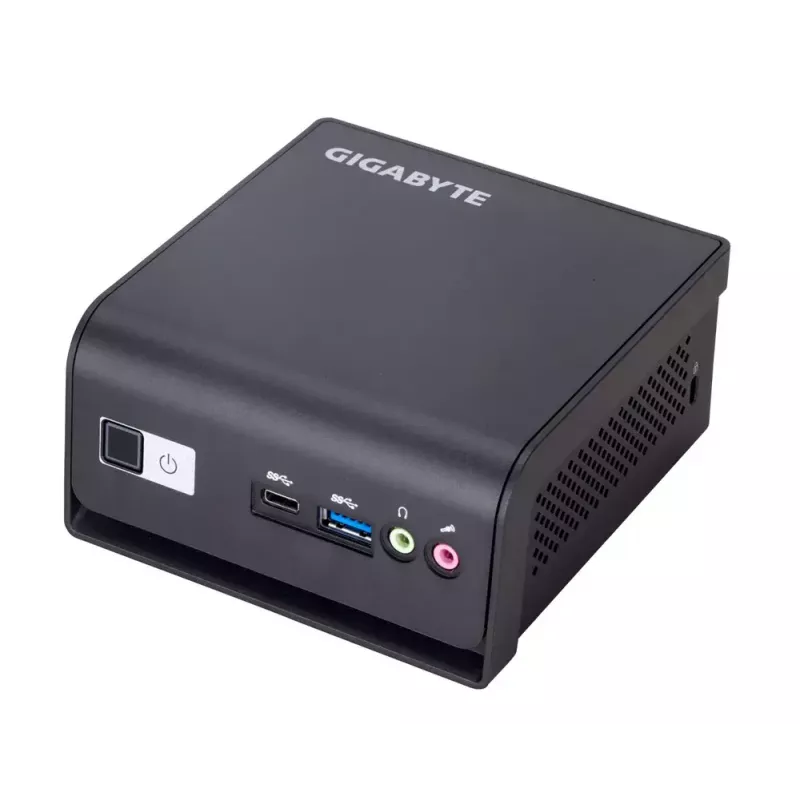

GIGABYTE BRIX GB-BMPD-6005 čierny N6005 2 GHz

GIGABYTE BRIX GB-BMPD-6005 is a compact mini PC barebone powered by the Intel N6005 (Intel Pentium Silver) processor. The unit supports a single DDR4-SDRAM module up to 16 GB, offers dual storage options with an M.2 (PCIe/SATA) slot and a 2.5" SATA bay, and provides a range of I/O including USB Type-C, multiple USB 3.1 ports, HDMI 2.0 and mini DisplayPort video outputs, gigabit Ethernet and Wi‑Fi 5 connectivity. Supplied with a VESA bracket, this BRIX can be mounted behind a monitor to create a space-saving workstation or digital signage solution.

Advantages

The Intel N6005 (10 nm Pentium Silver) processor delivers improved CPU and integrated Intel UHD graphics performance versus earlier entry-level chips, enabling smoother 4K media playback and better application responsiveness. Dual storage support lets you combine a fast M.2 SSD for system and application responsiveness with a larger 2.5" HDD or SSD for bulk data. DDR4 memory support at up to 2933 MHz increases bandwidth for everyday multitasking, while modern I/O — including a reversible USB Type-C port and multiple USB 3.1 ports — simplifies connectivity with peripherals and external drives.

Suitable for

• Home or small office desktop tasks (web browsing, office apps, video calls)
• 4K media playback and light multimedia work
• Space-constrained environments where VESA mounting is needed
• Deployments requiring a low-power, entry-level workstation or digital signage

Key specifications

• Processor: Intel N6005 (Intel Pentium Silver), base 2.0 GHz, boost up to 3.3 GHz
• Memory: 1 × DDR4 SO-DIMM slot, up to 16 GB
• Storage: 1 × M.2 (2280) PCIe/SATA and 1 × 2.5" SATA bay
• Video outputs: HDMI 2.0, mini DisplayPort
• USB: up to four USB 3.1 ports including one USB Type-C (5 Gb/s)
• Network: Gigabit Ethernet (RJ-45), Wi‑Fi 5 (802.11ac) support
• Colour: Black
• Mounting: VESA bracket included

How to use

Install a DDR4 SO‑DIMM module (max 16 GB) into the memory slot, fit an M.2 2280 SSD and/or install a 2.5" SATA drive for additional capacity, then connect power and your display via HDMI or mini DisplayPort. Use the USB Type-C or USB 3.1 ports for peripherals and external storage. For a compact setup, attach the included VESA bracket and mount the BRIX behind a compatible monitor or TV. Configure network settings to use either the gigabit Ethernet port or the built‑in Wi‑Fi 5 for wireless connectivity.

Recommendations

For best responsiveness, install an M.2 NVMe SSD as the primary drive and a single DDR4 module of appropriate capacity to enable needed applications. Use Ethernet for reliable network performance during large transfers and Wi‑Fi for flexible placement when cabling is impractical.
