Gira dotykový ovládací prvok S3000 F hliník 536526

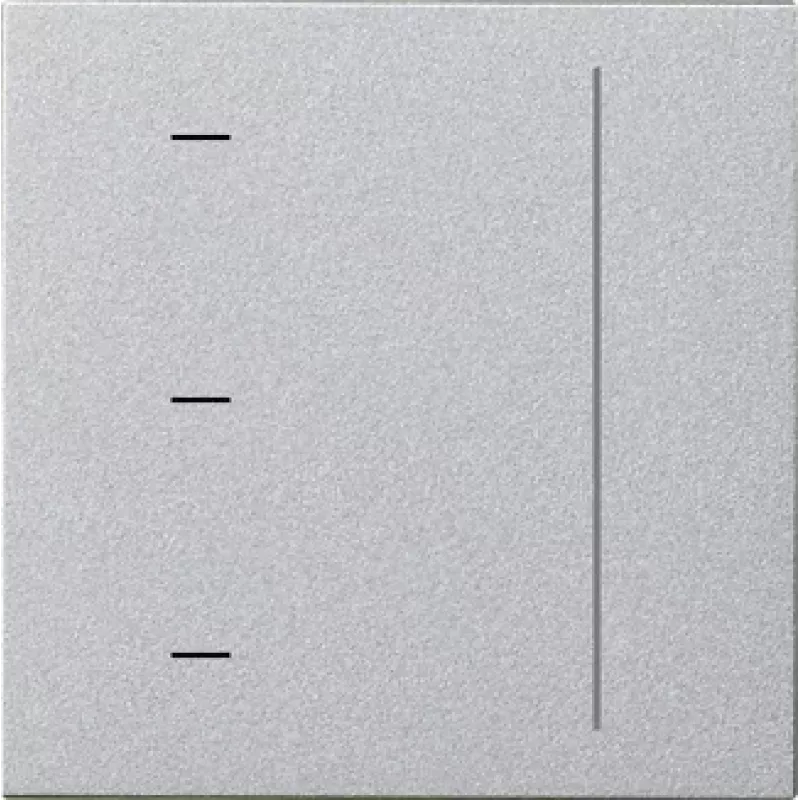

In a modern smart home, the Gira Touch Operating Element S3000 F Aluminium 536526 is mounted flush on the wall, replacing conventional switches. The user touches the capacitive surface to control lighting, blinds, heating, or ventilation, depending on the connected System 3000 insert. The backlit LCD display shows time, date, temperature, and humidity, providing clear feedback at a glance.

Key specifications

• Product type: Touch operating element
• System compatibility: Gira System 3000
• Display: Backlit LCD
• Control method: Capacitive touch surface
• Material: Aluminium
• Colour: Aluminium
• Mounting type: Flush-mounted (requires System 3000 insert and cover frame)
• Integrated functions: Time programs, Astro function, Random function, Holiday function
• Time functions: Automatic summer/winter time changeover
• Display information: Time, date, temperature (with sensor insert), humidity (with sensor insert), status
• Power supply: Via System 3000 insert
• Operating temperature: 0 °C to +45 °C
• Customization: Individual text labels for functions

Why choose it

This touch operating element combines elegant aluminium design with versatile control for Gira System 3000. Its capacitive touch surface and backlit display ensure intuitive operation, while integrated time and astro functions automate your home. The ability to customize text labels makes it user-friendly for every household member.

Ideal use cases

• Controlling lighting and blinds in living rooms or bedrooms
• Adjusting heating and ventilation for comfort and energy savings
• Creating automated schedules with time and astro functions
• Enhancing a modern interior with a flush-mounted aluminium design

Good to know

The operating element requires a compatible Gira System 3000 insert and a cover frame from the Gira switch range (e.g., E2, Event, Esprit, Standard 55). It is powered directly via the insert, eliminating the need for additional wiring. The display automatically adjusts for summer and winter time.
