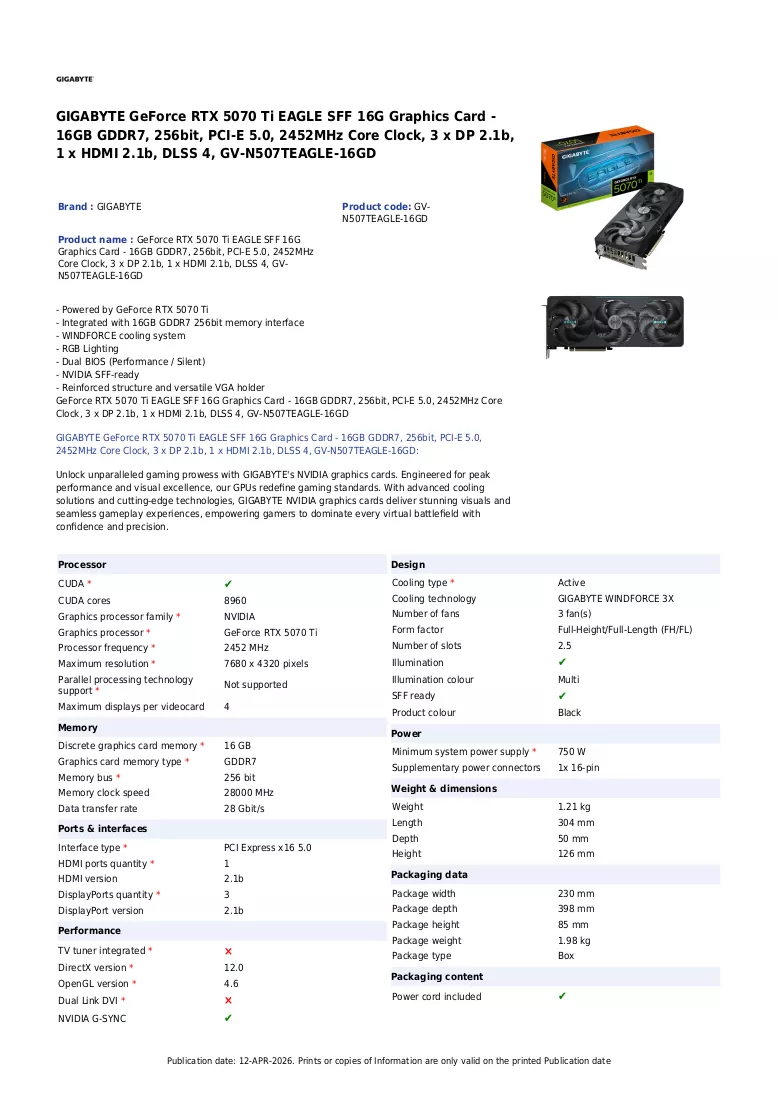

Grafická karta GIGABYTE GeForce RTX 5070 Ti EAGLE SFF 16G — 16GB GDDR7, 256-Bit, PCIe 5.0, 2452 MHz

GIGABYTE GeForce RTX 5070 Ti EAGLE SFF 16G is a compact desktop graphics card designed for high-resolution gaming and demanding graphical workloads. It is built around the NVIDIA GeForce RTX 5070 Ti GPU with 16 GB of GDDR7 memory on a 256-bit bus and supports PCI Express x16 5.0. The card features an active triple-fan WINDFORCE cooling system, RGB lighting and a reinforced structure suitable for small-form-factor builds.

Advantages

The GPU delivers high processing frequency and a large, fast memory subsystem for smooth performance at high resolutions. WINDFORCE cooling and dual BIOS (Performance / Silent) offer flexible thermal and acoustic control. Multiple display outputs and support for modern APIs provide wide compatibility with current games and professional applications.

Suitable for

• High-resolution gaming up to 7680 x 4320
• 3D rendering and content creation workloads
• Compact or small-form-factor gaming PC builds
• Multi-monitor setups and VR-ready configurations

Key specifications

• Graphics processor: NVIDIA GeForce RTX 5070 Ti
• Memory: 16 GB GDDR7, 256-bit memory bus
• Memory clock speed: 28000 MHz effective
• Interface: PCI Express x16 5.0
• Maximum resolution: 7680 x 4320 pixels
• Outputs: 3 × DisplayPort (DP 2.1b), 1 × HDMI (2.1b)
• Core clock (base/boost): up to 2452 MHz (manufacturer specification)
• APIs supported: DirectX 12.0, OpenGL 4.6
• Cooling: Active triple-fan WINDFORCE system
• Power connector: 1 × 16-pin
• Weight: approximately 1.21 kg

How to use

Install the graphics card into a PCI Express x16 5.0 slot on a compatible motherboard and secure it to the case using the mounting bracket. Connect the required 16-pin power cable from your PSU and ensure the PSU meets the card's power requirements. Install the latest NVIDIA drivers from the official website and configure display settings through the driver control panel or your operating system. Use the dual BIOS switch to select Performance mode for maximum clocking or Silent mode for lower noise levels.

Recommendations

For optimal cooling and stability, ensure adequate airflow in the chassis and use a power supply with sufficient capacity and the 16-pin cable. Keep GPU drivers up to date and select the BIOS mode according to your noise and performance preferences. When installing in small-form-factor cases, verify physical clearance and airflow to maintain operating temperatures.
