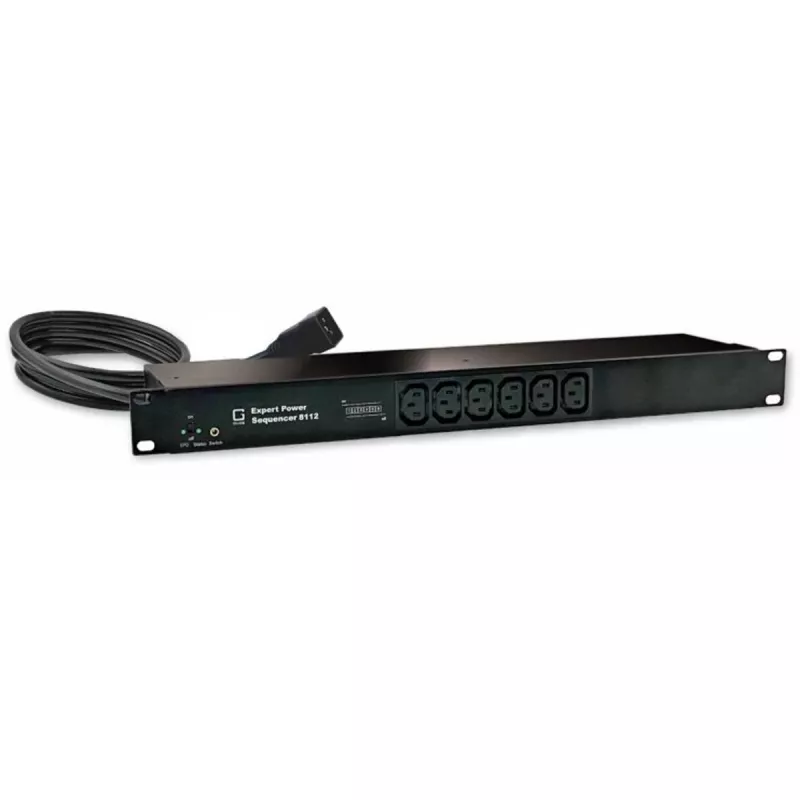

GÜDE 8112-6 Sequencer C19 UES Filter 6xC13 CEE320 C19 - Switched PDU 1U Rackmount

The GüDE 8112-6 is a professional switched power distribution unit (PDU) designed for data centers and server rooms. It features 6 IEC C13 outlets, a C20 input, and integrated power sequencing with adjustable delays. The built-in UES filter provides surge protection, while per-port and total current measurement enable precise energy monitoring. With Ethernet management and support for HTTP, HTTPS, SNMP, Telnet, SSH, MQTT, and Syslog, this 1U rackmount PDU offers comprehensive remote control and monitoring capabilities.

Advantages

Power sequencing prevents inrush current overload by switching outlets on/off in a configurable order. The integrated circuit breaker and surge filter protect connected equipment. Energy metering (kWh) and current measurement per outlet allow detailed power usage analysis. Remote management via web interface or SNMP reduces on-site visits.

Suitable for

• Server racks and network cabinets requiring intelligent power distribution
• IT environments needing remote power cycling and monitoring
• Applications where surge protection and overcurrent protection are critical

Key specifications

• Product Type: Switched PDU
• Form Factor: 1U Rackmount
• Input Connector: IEC C20
• Input Voltage: 230V AC
• Input Current: 16A
• Output Connectors: 6 x IEC C13
• Output Current per Port: 10A
• Total Output Current: 16A
• Power Sequencing: Yes, adjustable delays
• Current Measurement: Yes, total and per port
• Energy Metering: Yes, kWh total and per port
• Surge Protection: Yes (UES Filter)
• Overcurrent Protection: Yes (circuit breaker)
• Network Interface: Ethernet RJ-45
• Management Protocols: HTTP, HTTPS, SNMP v1/v2c/v3, Telnet, SSH, MQTT, Syslog
• Sensor Ports: 2 x RJ11 (for optional temp/humidity sensors)
• Watchdog Function: Yes (ping watchdog)
• Display: LED indicators
• Operating Temperature: 0 - 50 °C
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a 16A circuit and ensure proper ventilation. The PDU supports daisy chaining for multiple units. Firmware upgrades are available via network.
