GUSTAV KLAUKE GMBH KLAU lisované káblové oká 105R10 35 mm² M10 DIN 46235

With a maximum operating temperature of 120 °C and a voltage rating of 1000 V, this compression cable lug delivers exceptional performance in demanding electrical installations. Crafted from electrolytic copper with a tin-plated finish, it ensures superior conductivity and corrosion resistance.

Overview

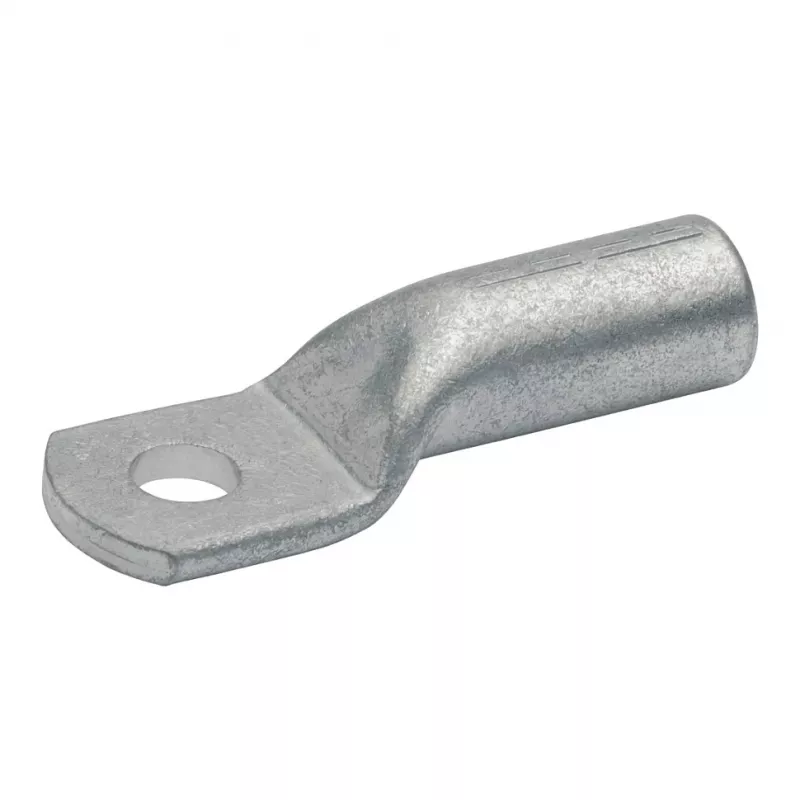

The GUSTAV KLAUKE GMBH KLAU Compression Cable Lug 105R10 is engineered for reliable crimp connections on 35 mm² copper conductors. Compliant with DIN 46235, it features a hexagonal crimp profile and an inspection hole for visual verification of proper insertion. The M10 bolt hole accommodates standard metric fasteners, making it suitable for a wide range of industrial and power distribution applications.

What stands out

• High-purity electrolytic copper (E-Cu) for excellent electrical conductivity
• Tin-plated surface for enhanced corrosion resistance and solderability
• Hexagonal crimp form ensures a secure, gas-tight connection
• Inspection hole allows quick verification of conductor insertion depth
• RoHS compliant, meeting environmental standards

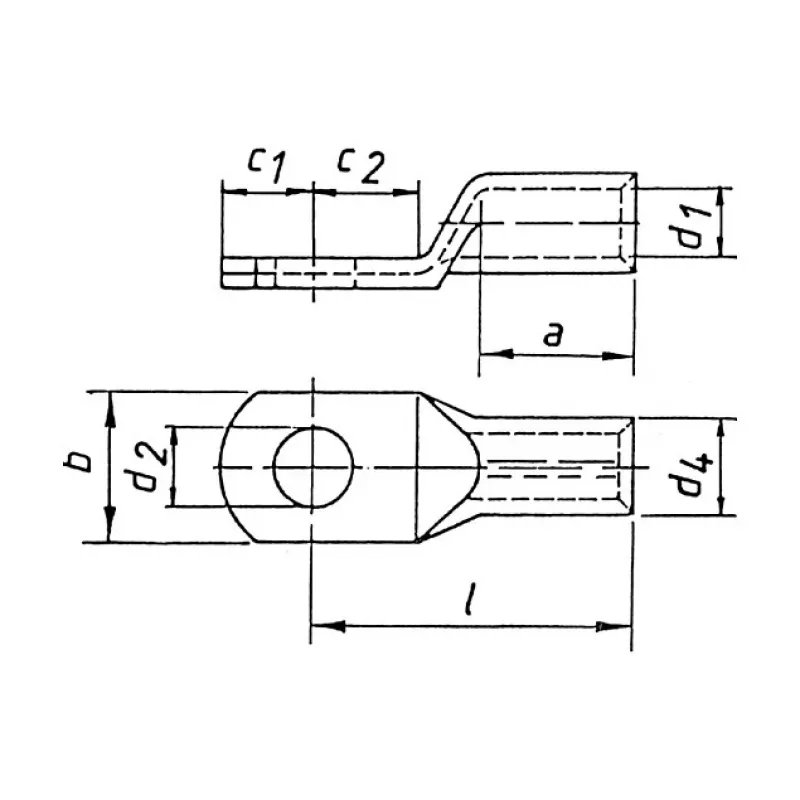

Technical details

• Conductor cross-section: 35 mm²
• Bolt size: M10 (hole diameter 10.5 mm)
• Total length: 53 mm
• Barrel length: 28 mm
• Flange width: 19 mm
• Flange thickness: 3.5 mm
• Inner barrel diameter: 8.2 mm
• Max operating temperature: 120 °C
• Max voltage rating: 1000 V

Our verdict

A robust and dependable compression lug that meets stringent DIN standards. Its precise dimensions and high-quality materials make it an excellent choice for professional electricians and industrial applications where safety and performance are paramount.
