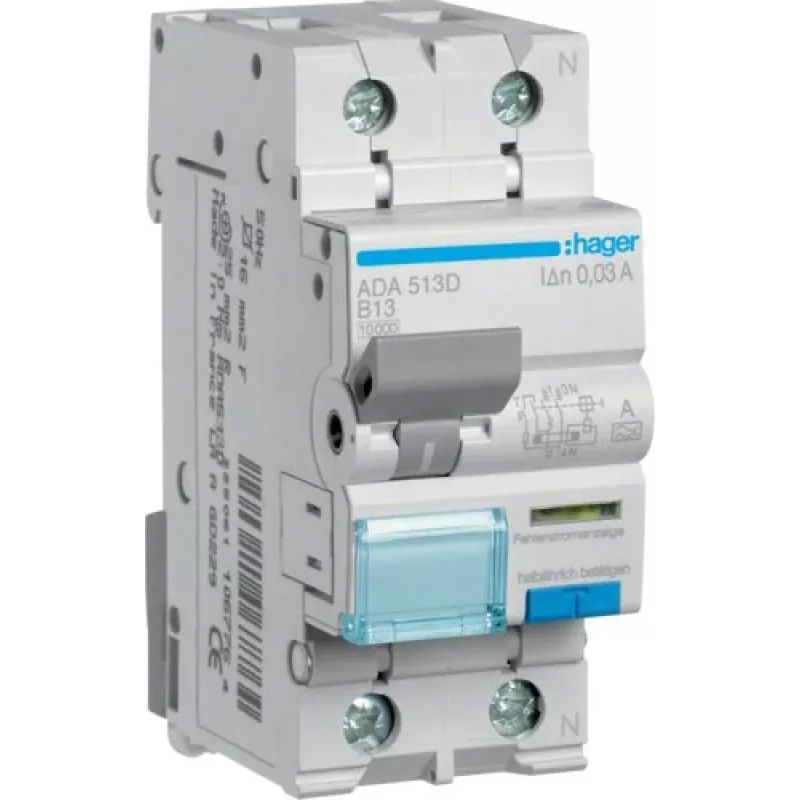

HAGER ADA513D RCBO 1P+N 13A B-charakteristika 30mA Typ A 10kA

Electricians and panel builders working on residential and commercial distribution boards need a reliable device that combines residual current protection with overcurrent protection in a compact form. The HAGER ADA513D is a 1-pole + neutral RCBO that safeguards circuits against earth leakage currents and overloads, ensuring both personal safety and equipment protection. With a rated current of 13 A and a B-curve tripping characteristic, it is ideal for circuits with moderate inrush currents, such as socket outlets and lighting in homes and offices.

Key specifications

• Device type: Residual Current Circuit Breaker with Overcurrent Protection (RCBO)
• Number of poles: 1P+N (1-pole + neutral)
• Rated current (In): 13 A
• Tripping characteristic: B-curve
• Rated residual operating current (IΔn): 30 mA
• RCD type: Type A (detects AC and pulsating DC residual currents)
• Short-circuit breaking capacity (Icn): 10 kA
• Rated voltage (Un): 230 V AC
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Module width: 2 modules (35.6 mm)
• Degree of protection: IP20
• Operating temperature range: -25 °C to +60 °C
• Standards: EN 61009-1
• Terminal capacity (rigid): 16 mm²
• Terminal capacity (flexible): 10 mm²
• Tightening torque: 2.5 Nm
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles

Why choose it

This RCBO combines two essential protective functions in one unit, saving space on the DIN rail and simplifying installation. Its Type A RCD ensures reliable detection of both AC and pulsating DC residual currents, which is crucial for modern electronic loads. The 10 kA breaking capacity provides robust protection against short circuits, while the B-curve is well-suited for circuits with moderate inrush currents. HAGER's reputation for quality and compliance with EN 61009-1 guarantees long-term reliability and safety.

Ideal use cases

• Protection of socket outlet circuits in residential and commercial buildings
• Lighting circuits with electronic ballasts or LED drivers
• Circuits supplying appliances with electronic components that may produce pulsating DC leakage currents
• Distribution boards where space is limited and combined protection is required

Good to know

The ADA513D is designed for DIN rail mounting and occupies only 2 modules (35.6 mm width). It has a rated voltage of 230 V AC and operates at 50/60 Hz. The device has an IP20 protection rating, making it suitable for installation in distribution boards indoors. The terminals accept rigid conductors up to 16 mm² and flexible conductors up to 10 mm², with a recommended tightening torque of 2.5 Nm. It is tested for 10,000 electrical operations and 20,000 mechanical operations, ensuring durability.
