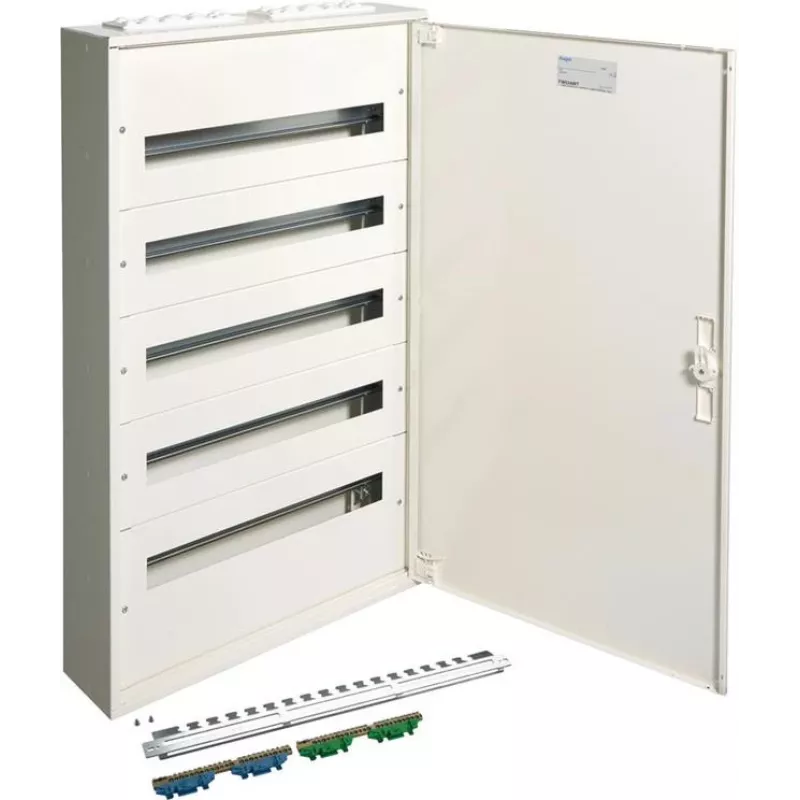

Hager FW524WT 5- radový 120-modulový rozvádzač pod omietku s PE/N svorkami, IP30, biela

Managing multiple circuits in residential and commercial electrical installations requires an enclosure that offers ample space, reliable protection, and easy wiring. The Hager FW524WT flush distribution board delivers a 120-module capacity across five rows, with pre-installed PE and N terminals, making it a practical choice for electricians and panel builders.

Who is it for

This distribution board is intended for electricians and panel builders working on flush-mounted installations where space and reliability are critical. It suits projects requiring multiple circuit breakers, residual current devices, and other modular devices, from apartment blocks to small office environments.

Main features

• Five DIN rails, each accommodating 24 modules, for a total of 120 module slots.
• Pre-installed PE and N terminal blocks with multiple connection points simplify wiring and ensure proper earthing.
• IP30 ingress protection guards against solid objects larger than 2.5 mm, suitable for indoor use.
• Class I insulation with steel enclosure and opaque steel door for durability and safety.
• Flush mounting design with a recess depth of 112 mm for a clean, integrated look.
• Rated current up to 125 A and rated voltage 230/400 V AC, compliant with EN 61439-3.
• Mechanical impact resistance IK07 and glow wire test at 650 °C for enhanced resilience.

Specifications

• Brand: Hager
• Model: FW524WT
• MPN: FW524WT
• EAN: 3250614301001
• Number of rows: 5
• Modules per row: 24
• Total module capacity: 120
• Ingress protection: IP30
• Insulation class: Class I
• Mounting type: Flush (recessed)
• Enclosure material: Steel
• Door material: Steel
• Door type: Opaque
• PE/N terminal blocks: Included
• Rated current: 125 A
• Rated voltage: 230/400 V AC
• Colour: White (door), grey (enclosure)
• Standards compliance: EN 61439-3
• Mechanical impact resistance: IK07
• Glow wire test: 650 °C
• Number of DIN rails: 5
• Depth of recess: 112 mm

Tips

For optimal installation, ensure the recess depth is at least 112 mm and the wall cavity is free of obstructions. Use the pre-installed PE and N terminals to streamline wiring and maintain a tidy panel layout. Always verify that the total load does not exceed 125 A and that the board is installed by a qualified electrician in accordance with local regulations.
