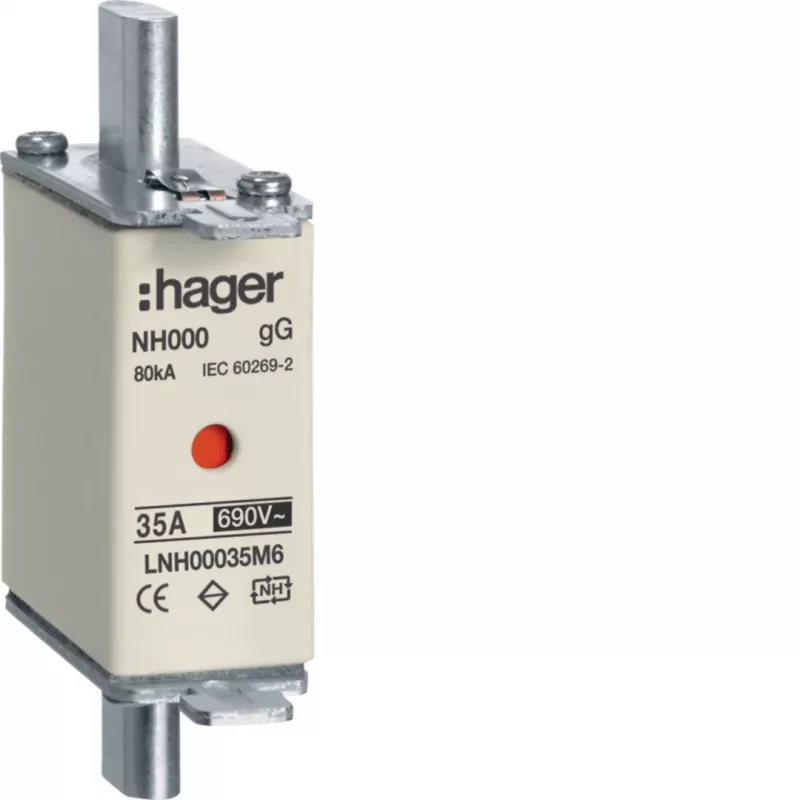

HAGER LNH00035M6 NH poistka NH00 gG 690V 35A

NH fuse link for cable and line protection, rated at 35 A and 690 V AC with a breaking capacity of 120 kA. Its gG utilization category ensures reliable protection of cables and lines against overloads and short circuits.

Advantages

High breaking capacity and robust ceramic body provide dependable performance in demanding electrical installations. Blade contacts with silver-plated copper ensure low contact resistance and long service life.

Suitable for

• Low-voltage distribution systems
• Industrial and commercial electrical installations
• Protection of cables and lines

Key specifications

• Size: NH00
• Rated current: 35 A
• Rated voltage: 690 V AC
• Utilization category: gG
• Breaking capacity: 120 kA
• Standard: IEC 60269-2
• Frequency: 50/60 Hz
• Power dissipation: 4.5 W
• Mounting: Blade contact
• Body material: Ceramic
• Contact material: Silver-plated copper
• Operating temperature: -5 to +40 °C

Recommendations

For use in NH fuse switch disconnectors and fuse bases with NH00 size. Ensure proper torque on connections and verify compatibility with system voltage and short-circuit current.
