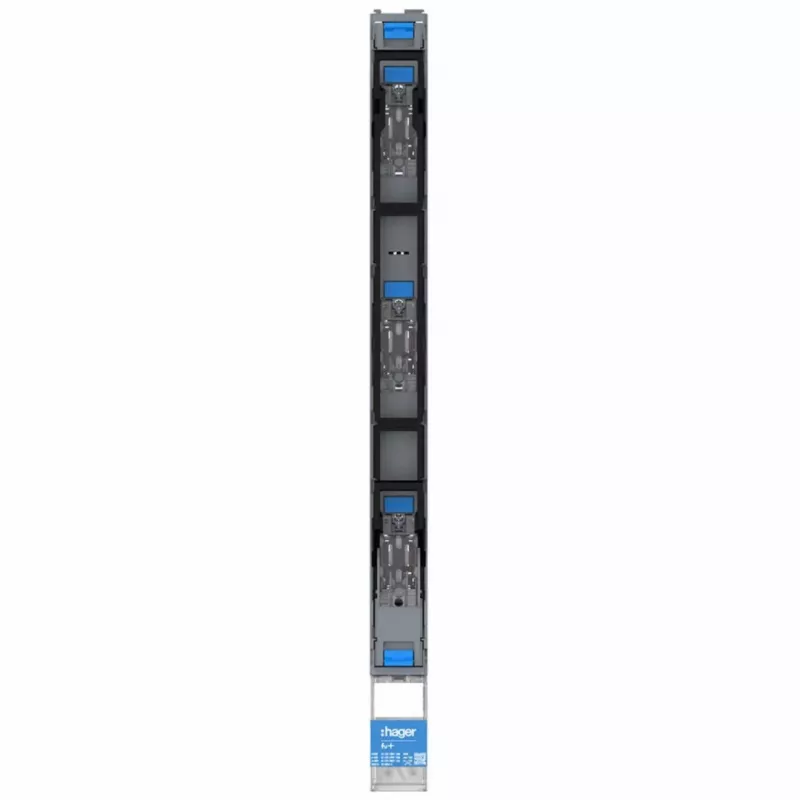

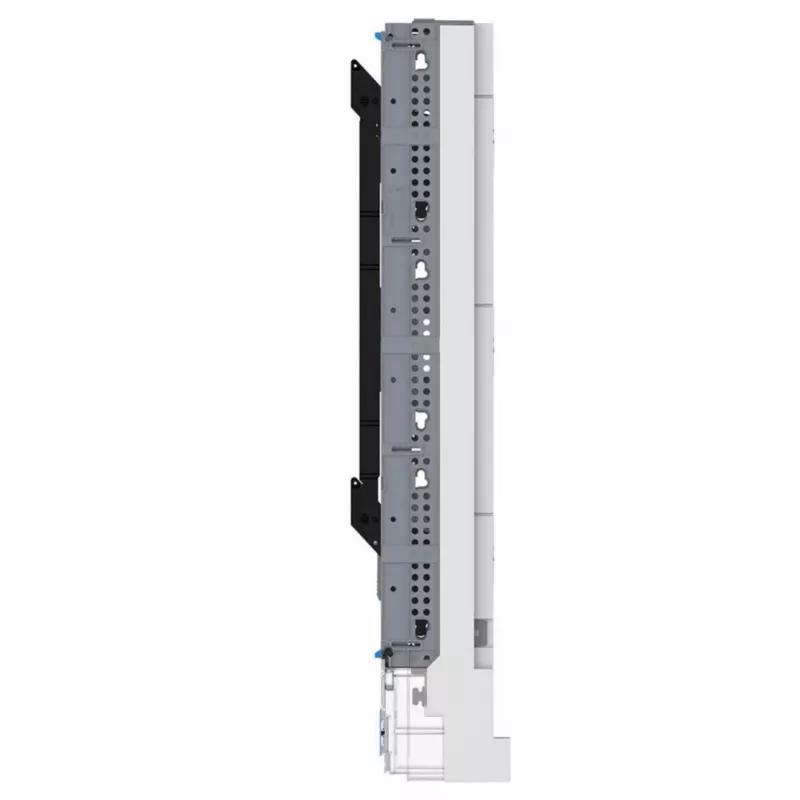

Hager LV8SG00STPS NH00 poistková odpojovacia lišta 160A 3-pólová

Rated at 160 A with a 690 V AC operational voltage, this 3-pole NH00 fuse switch disconnector strip handles demanding low-voltage distribution tasks.

Overview

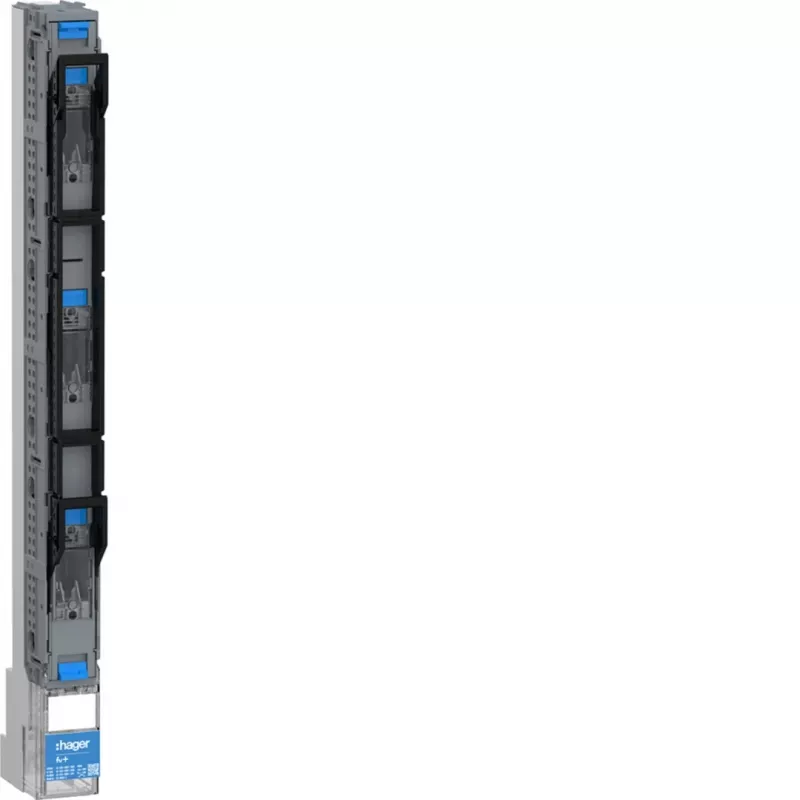

The Hager LV8SG00STPS is a NH00 fuse switch disconnector strip designed for 60 mm busbar systems. It provides a compact and reliable solution for protecting and isolating circuits in industrial and commercial installations. The unit accepts NH00 fuse links and offers a load break switching function, allowing safe disconnection under load.

What stands out

• 160 A rated current for high-power circuits
• 3-pole configuration for three-phase systems
• 690 V AC and 440 V DC operational voltage ratings
• Load break switch function for safe operation
• Designed for 60 mm busbar mounting

Technical details

• Fuse size: NH00
• Rated operational voltage: 690 V AC, 440 V DC
• Rated insulation voltage: 1000 V
• Rated impulse withstand voltage: 8 kV
• Frequency: 50/60 Hz
• Connection: screw terminals
• Max. cable cross-section: 95 mm² rigid, 70 mm² flexible
• Degree of protection: IP20 front, IP00 terminals
• Operating temperature: -25 to 70 °C
• Standard: EN 60947-3

Our verdict

A robust and versatile NH00 fuse switch disconnector strip that meets the demands of modern low-voltage distribution, with high current capacity and flexible mounting.
